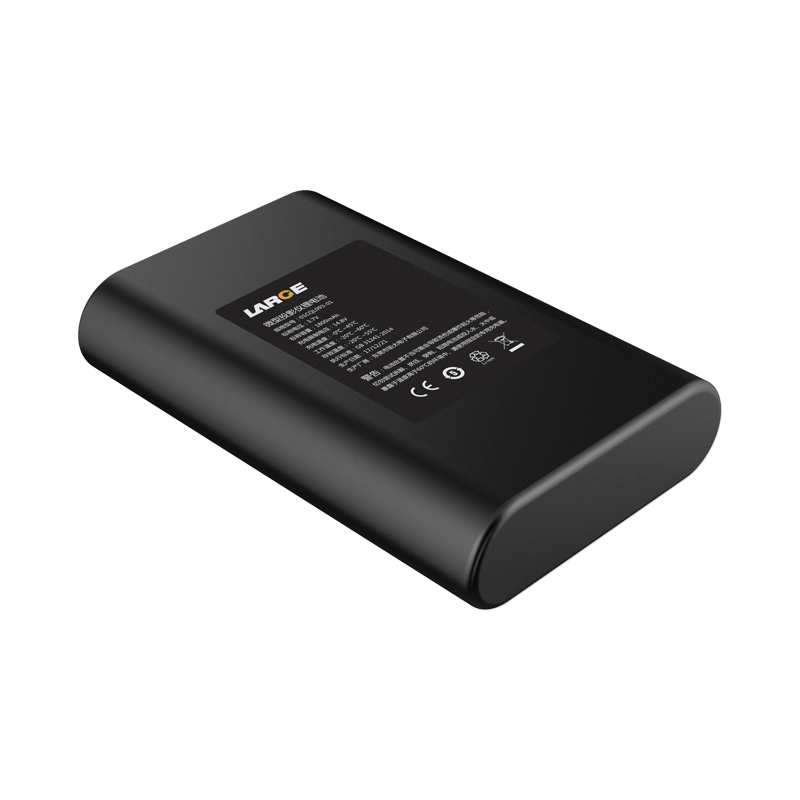

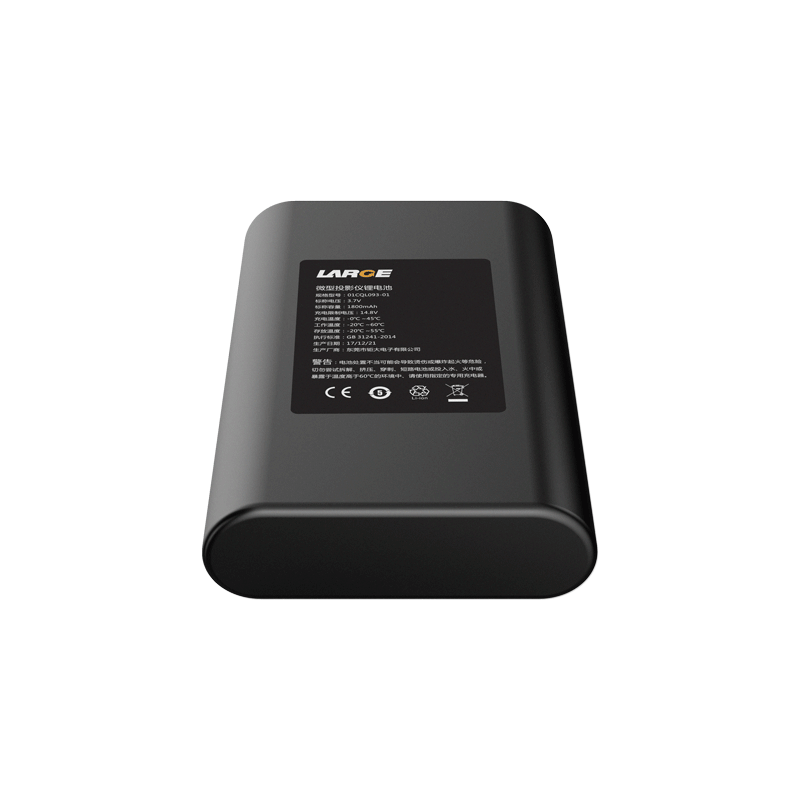

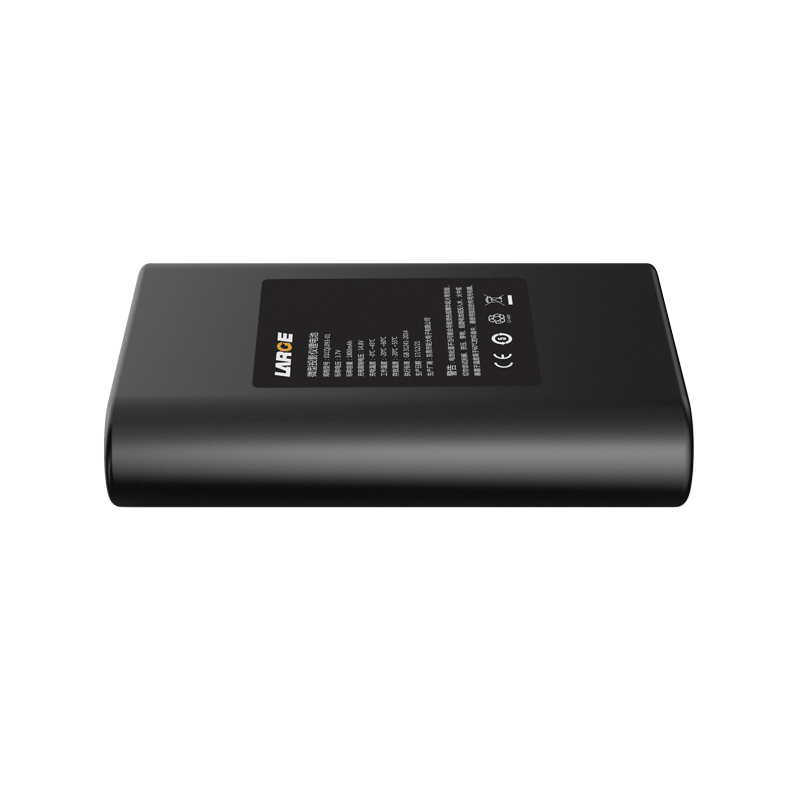

3.7v 1800mAh 103450 Lithium Ion Battery

3.7v 1800mAh 103450 Lithium Ion Battery
3.7v 1800mAh 103450 Lithium Ion Battery
3.7v 1800mAh 103450 Lithium Ion Battery
3.7v 1800mAh 103450 Lithium Ion Battery

Product Detail

Combination mode: 103450-1S1p

Nominal voltage: 3.7V

Operating voltage: 2.3~4.2V

Nominal capacity: 1800mAh

Standard discharge continuous current: 0.2C

Maximum discharge continuous current: 1C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 11*35*54mm

Finished product internal resistance: 150 mΩ or less

Protective board: IC-S8261G2G+MOS-AO8822

Lead model: UL1007/24#, length: 100mm

Protection parameters: overcharge protection voltage / 4.28±0.025V per series

Overdischarge protection voltage 2.3±0.05V

Overcurrent value: 3~7A

Our company can customize lithium battery products according to customers' specific products, including battery voltage/capacity/dimension/protective board and so on.

*
*
*
