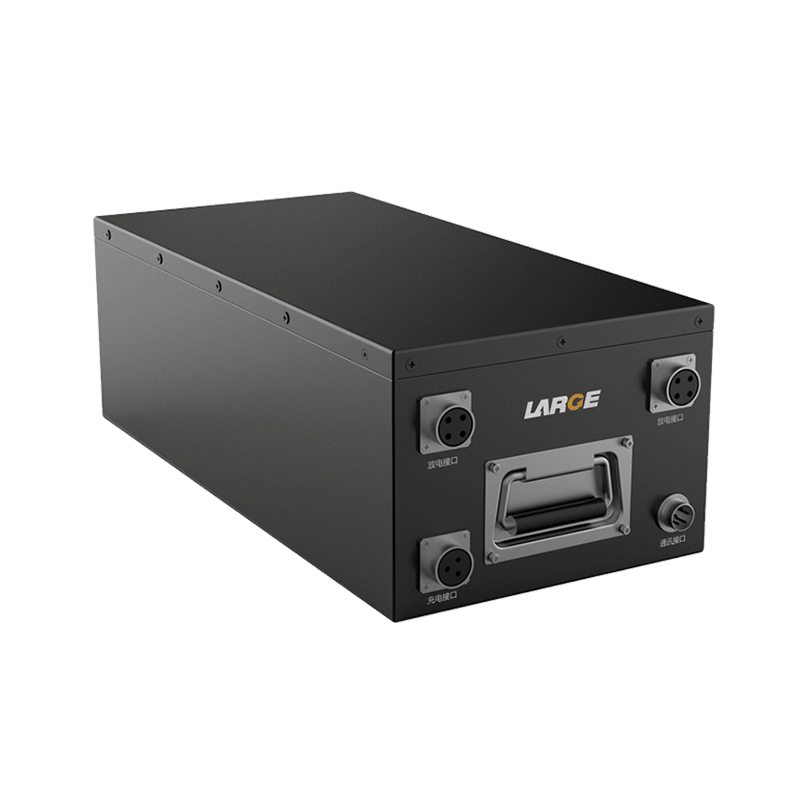

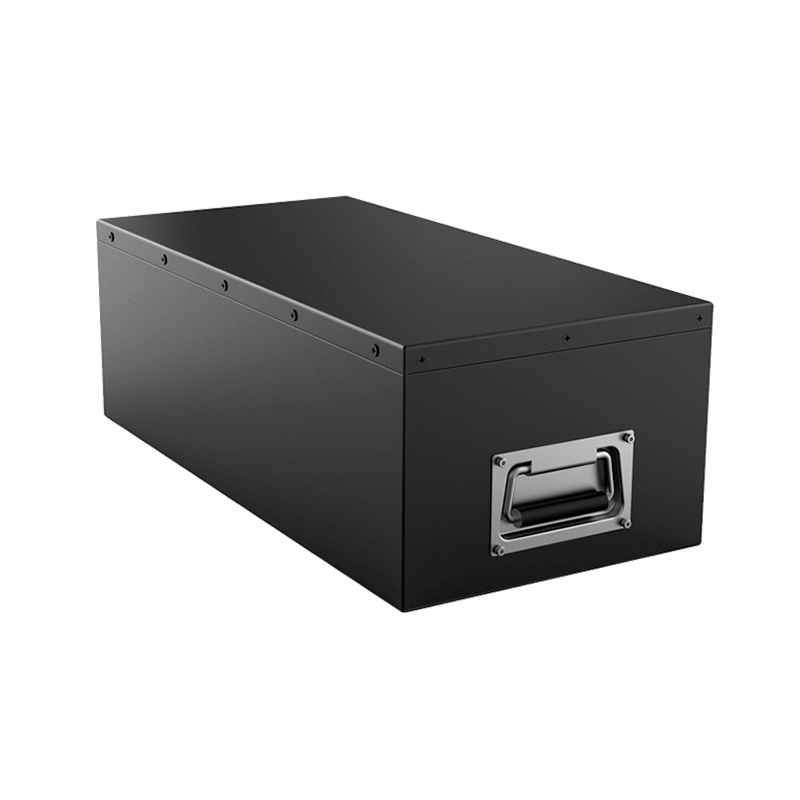

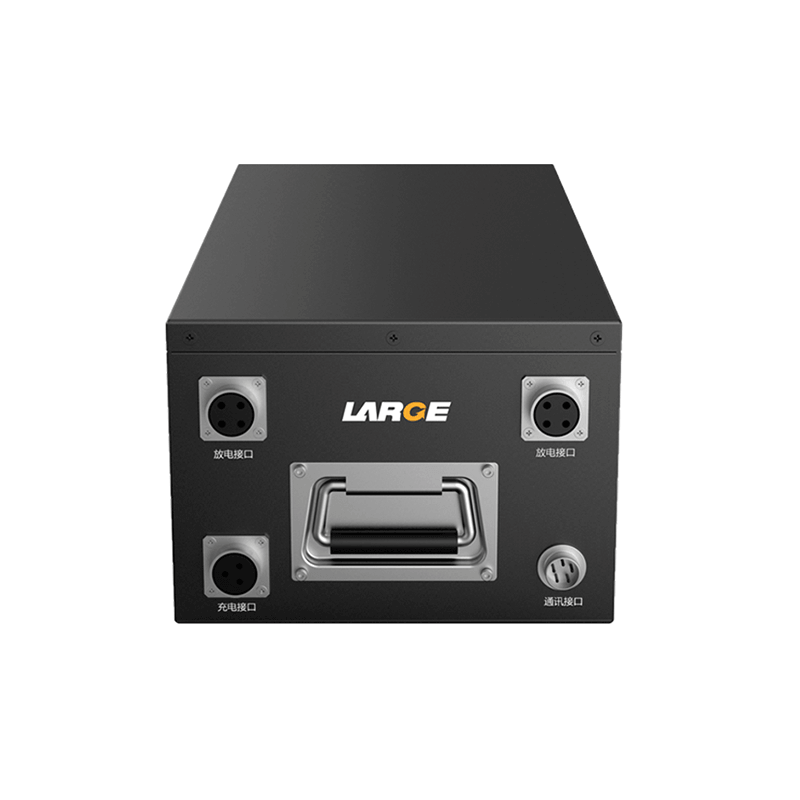

10.8V 537Ah 18650 Lithium Ion Battery Panasonic Battery for Ocean Detecting Sonar

Product Detail

Product number: 32AQ009-01

Cell model:18650/10.8V/537Ah

Battery specification: 18650/3S168P/10.8V/537Ah

Nominal voltage:10.8V

Nominal capacity:537Ah

Charging voltage: 12.6V

Charging current: ≤40A

Discharging current: 20A

Instant discharging current: 7.5A

End-off voltage: 12V stable voltage

Internal resistance: ≤200m?

Battery weight: 35kg

Product dimension: 480×280×200(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~55 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and temperature protection

Application field: ocean detecting sonar


Product features

1. Shock-resistant and waterproof: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

2. Large capacity: adopt imported 18650/3.7V/3350mAh battery with high energy density, small size and high capacity.

3. Reliable connection: apply GJB aviation connector, which is efficient, safe and reliable.

4. Communication protocol: have RS485 communication protocol and can read the information of battery voltage, temperature, power source, current, etc.

5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
