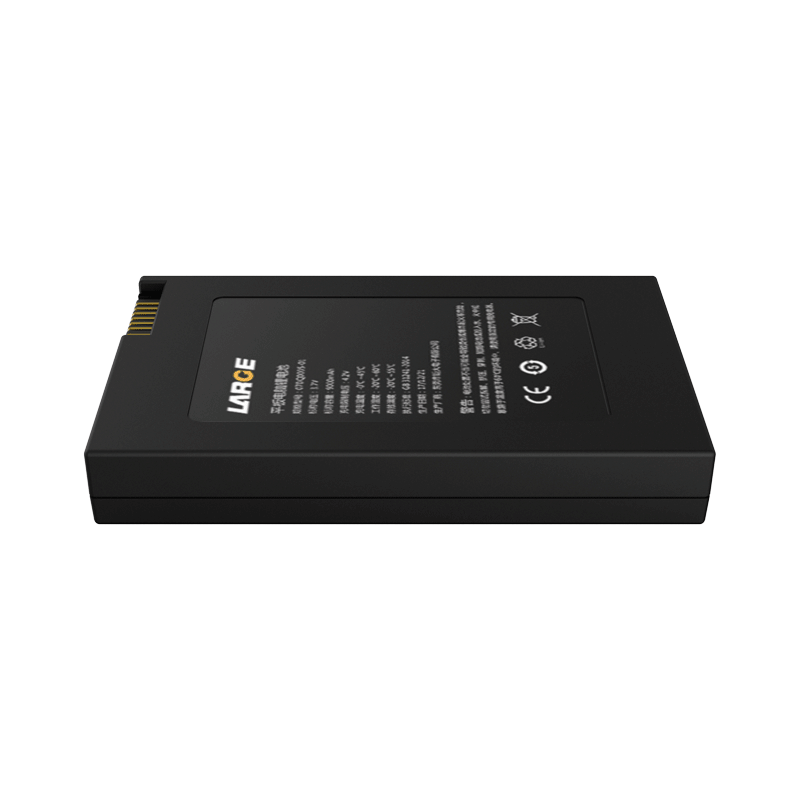

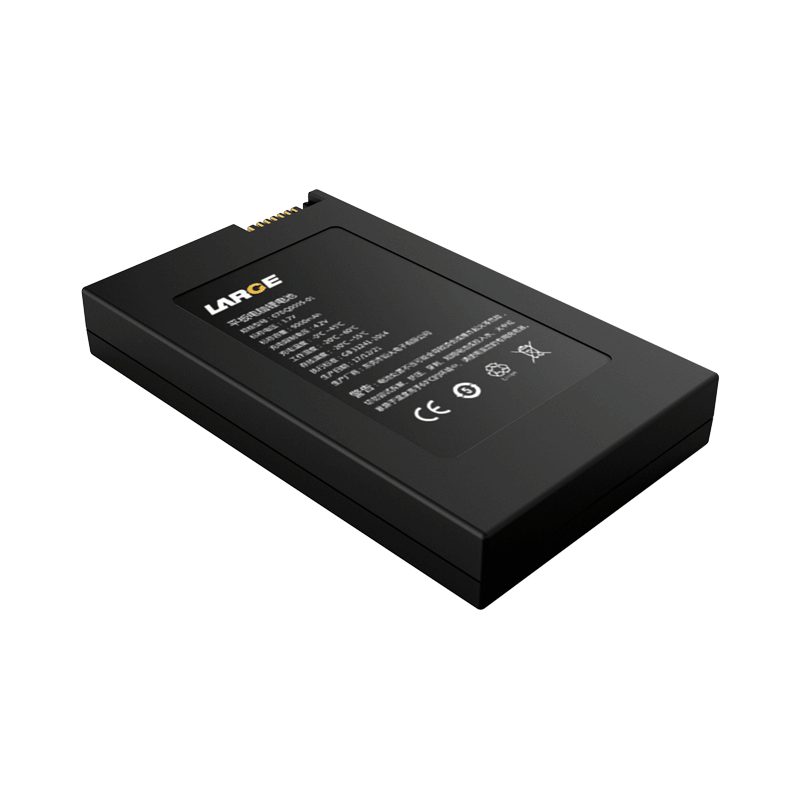

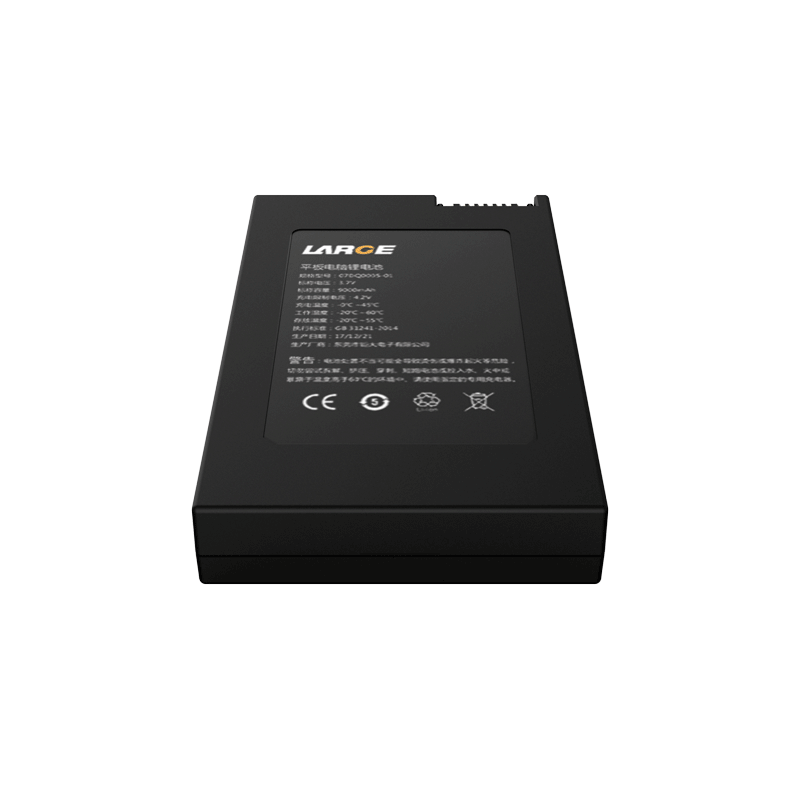

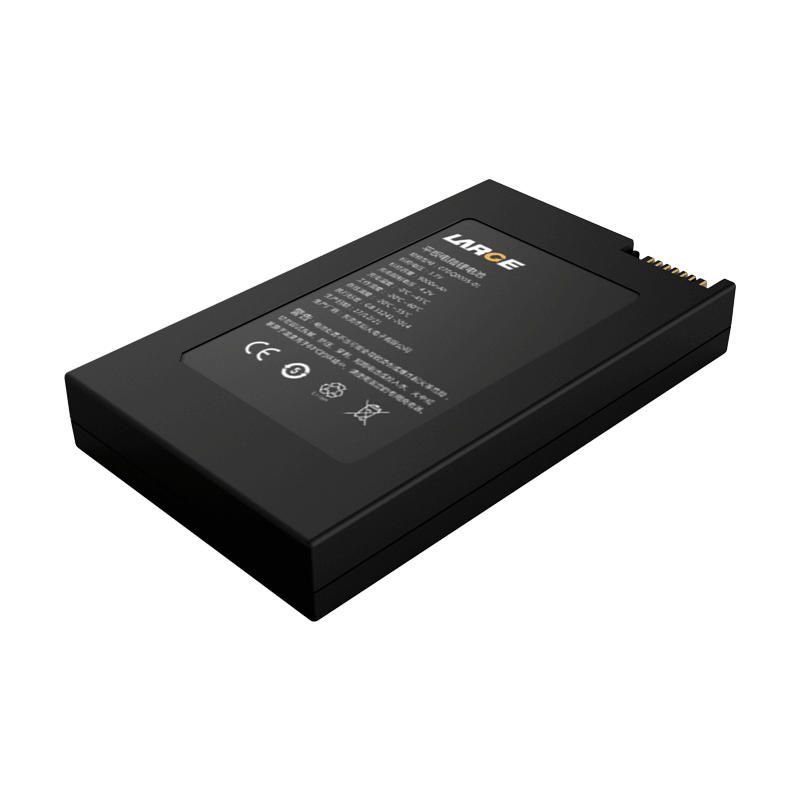

3.7V 9000mAh Lithium Polymer Battery for Tablet

Product Detail

Product number: 07DQ0005-01

Cell model:656098/3.7V/4500mAh

Battery specification: 656098-1S2P/3.7V/9000mAh

Nominal voltage:3.7V

Nominal capacity:9000mAh

Charging voltage: 4.2V

Charging current: ≤4.5A

Discharging current: 1.8A

Instant discharging current: 4.5A

End-off voltage: 2.5V

Internal resistance: ≤120mΩ

Battery weight: 0.2Kg

Product dimension: 108.5*64.8*16.2mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~55℃

Storage temperature: -40~55℃

Battery case: engineering plastic

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: tablet


*
*
*
