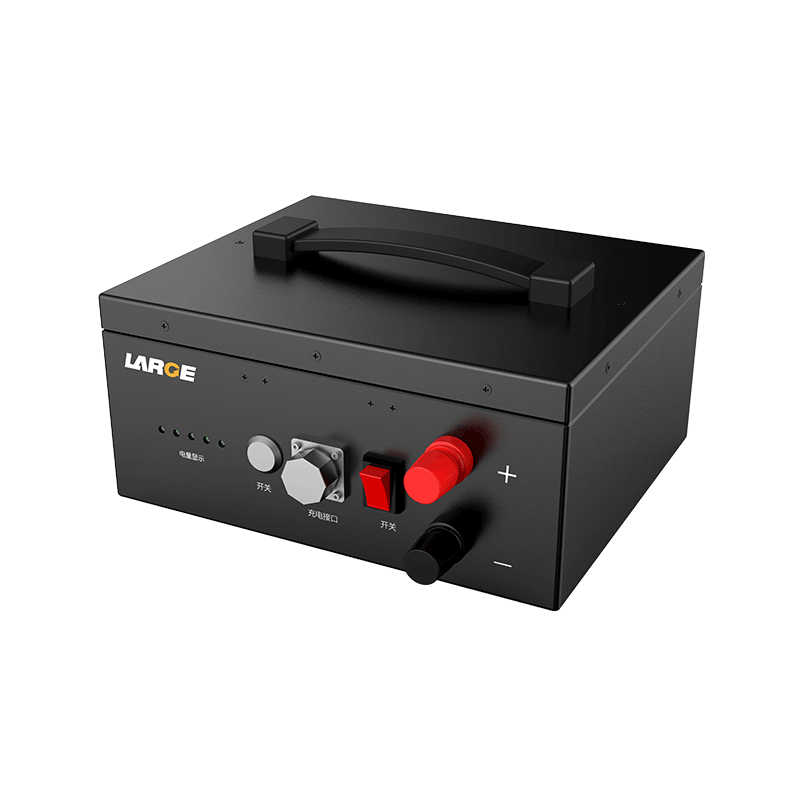

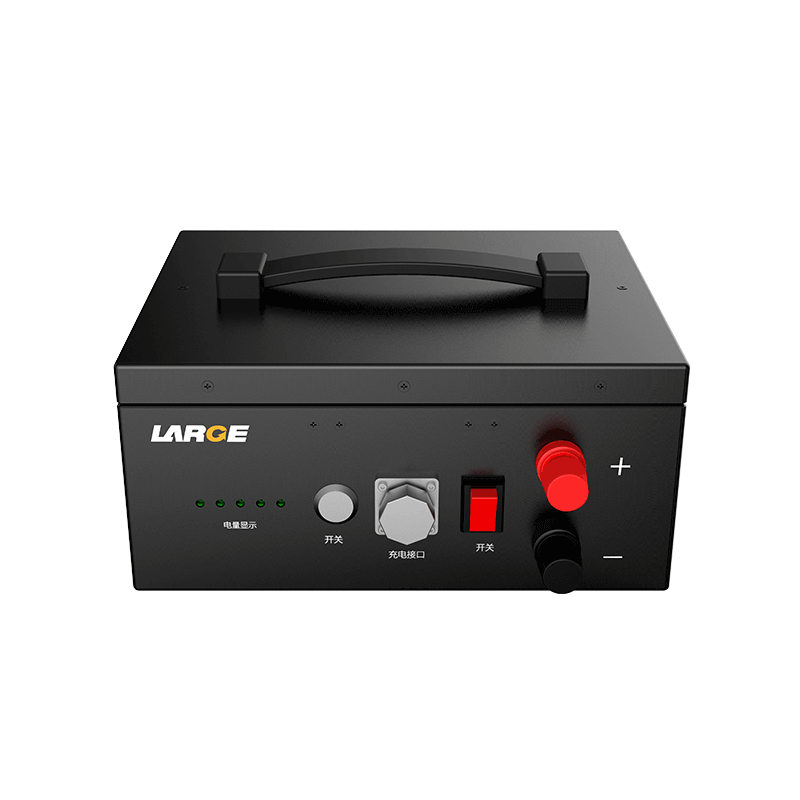

Custom Lithium ion Battery Pack

18650 25.2V 20Ah Energy Storage Battery Lishen for Carrier Vehicle Power Supply with RS232 and RS485

Product Detail

Product number: 35AQ092-01

Cell model:18650/2600mAh/3.6V

Battery specification: 18650-7S8P/25.2V/20Ah

Nominal voltage:25.2V

Nominal capacity:20Ah

Charging voltage: 29.4V

Charging current: ≤10A

Discharging current: 1A

Instant discharging current: 20A

End-off voltage: 21V

Internal resistance: ≤100mΩ

Battery weight: 3Kg

Product dimension: 190*170*90mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~45 ℃

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, 232&485 communication, etc.

Application field: special vehicle power supply

Product features

1. Current: the maximum continuous discharging current is 20A.

2. Housing: the battery has portable handle design with military waterproof and dustproof standard.

3. Data communication management: adopt imported software management chip, 232 or 485 communicating function, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. Output: the battery has 24V stable voltage module, can output 24V stable voltage and has LED for capacity display.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
