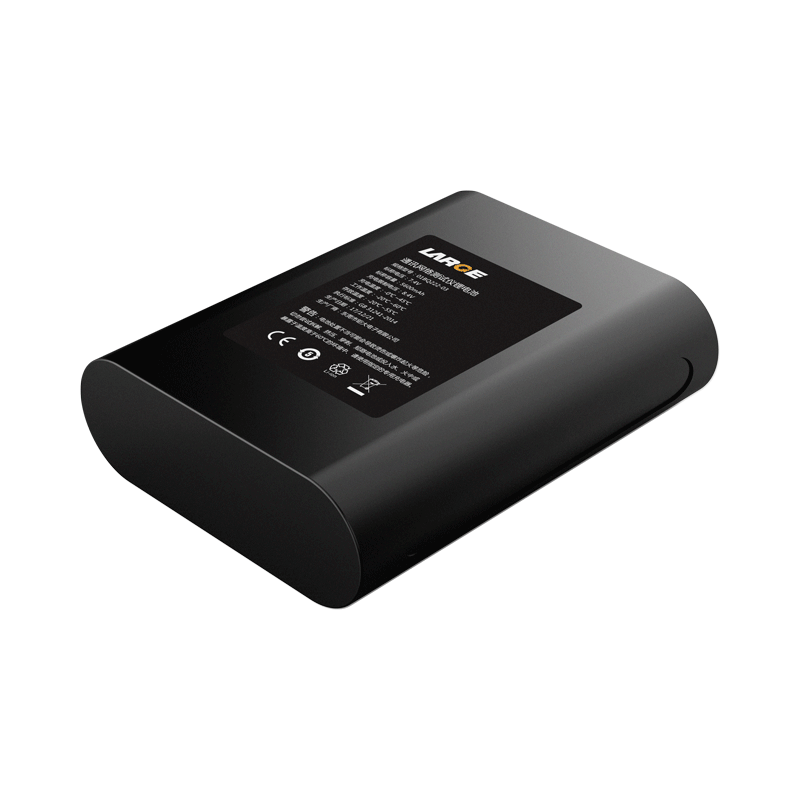

7.4V 5.2Ah 18650 lithium ion battery BIC battery for handheld device

Product number: 02CQ025-01T

Cell model：18650/3.7V/2600mAh

Battery specification: 18650/2S2P/7.4V/5200mAh

Nominal voltage：7.4V

Nominal capacity：5200mAh

Charging voltage: 8.4V

Charging current: ≤2000mA

Discharging current: 2000mA

Instant discharging current: 3000mA

End-off voltage: 6.0V

Internal resistance: ≤250mΩ

Battery weight: 200g

Product dimension: 74.5*69.5*20mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection and overcurrent protection.

Application field: handheld device, testing equipment
