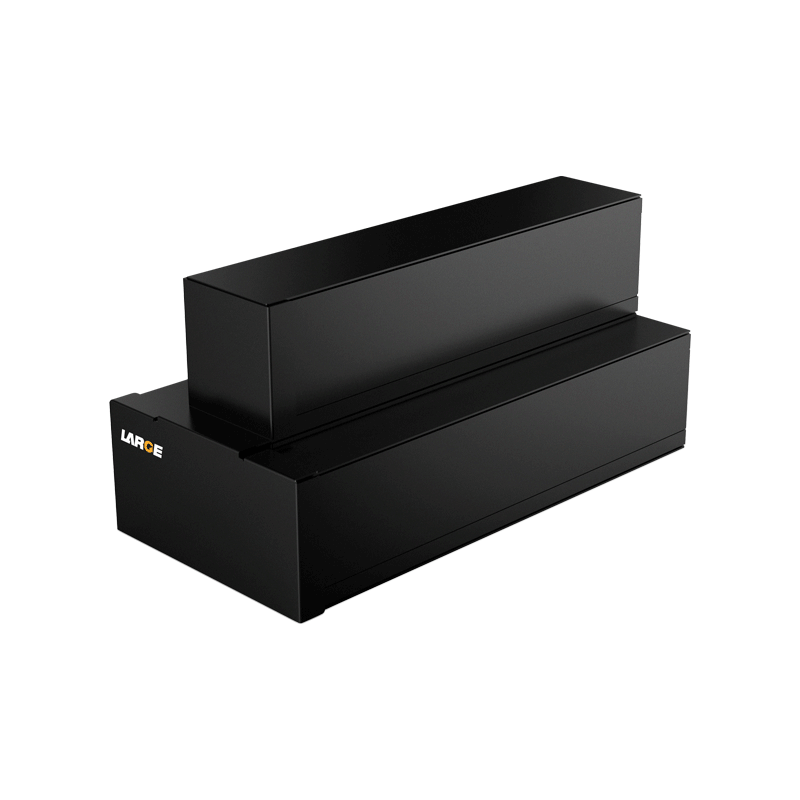

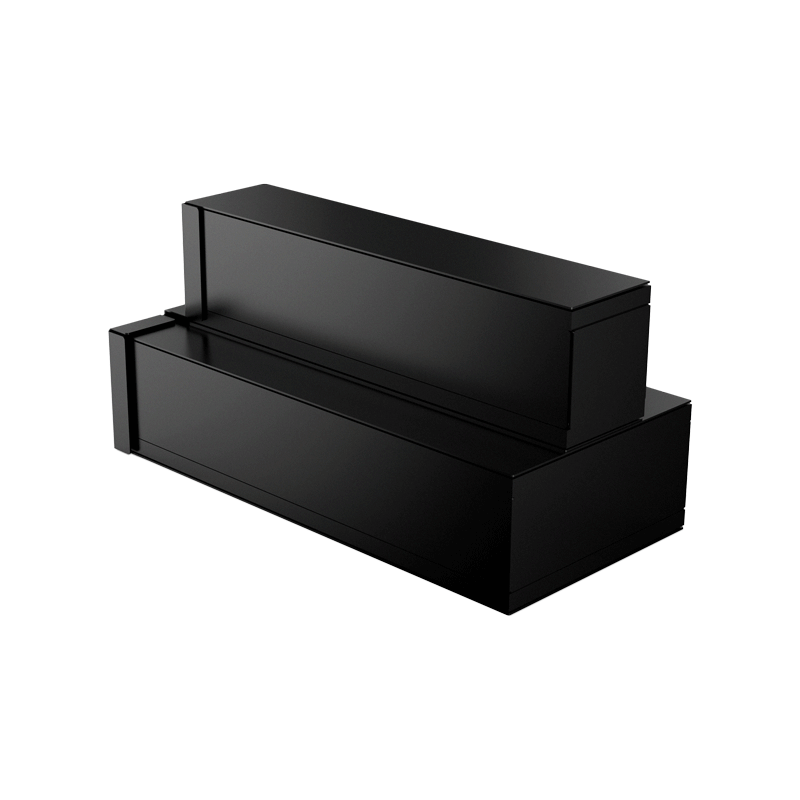

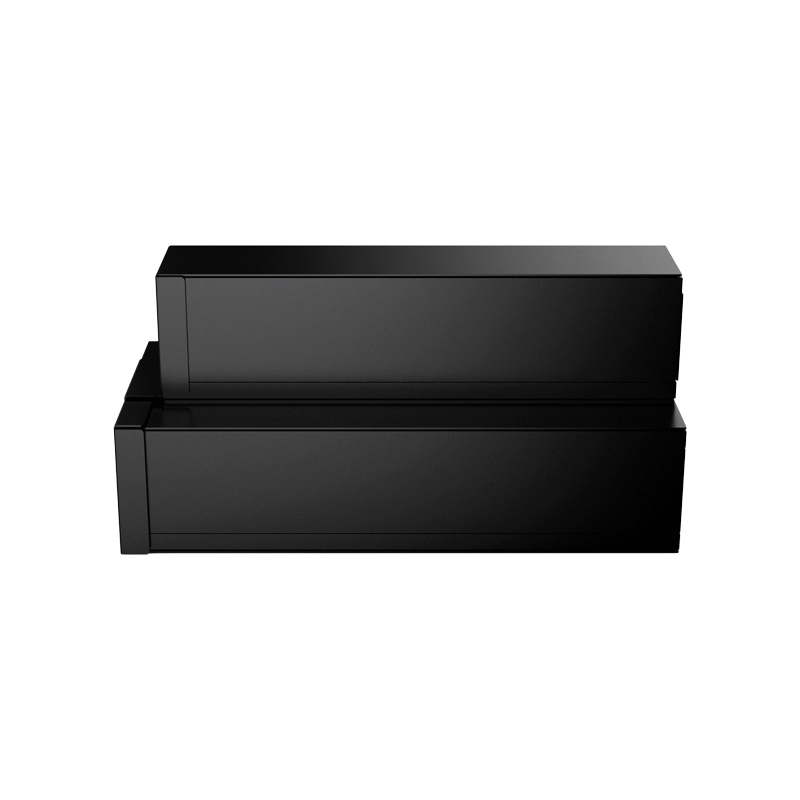

Custom Lithium Ion Battery Pack

18650 5V 8000mAh Energy Storage Battery Lishen Battery for Buoy Location

  • Model number:06DQ0030-03

  • Nominal voltage:25.2V

  • Nominal capacity:5400mAh

  • Battery cell:18650/3.6V/2600mAh

  • Dimension:323*144*141mm(Max)

  • Application:buoy location

Product Detail

Product number: 35DZ003-02

Cell model:18650/3.6V/2600mAh

Battery specification: 5S1P/5V/8000mAh

Nominal voltage:5V

Nominal capacity:8000mAh

Charging voltage: 5V

Charging current: ≤2A

Discharging voltage: 5V

Discharging current: 2A

Instant discharging current: 2.5A

End-off voltage: 2.5V

Internal resistance: ≤100mΩ

Battery weight: 420g

Product dimension: 20.3*100*100mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~45 ℃

Battery case: plastic housing

Communication: /

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection and overcurrent protection

Application field: buoy location


Product features:

1. Small self-discharging current;

2. The battery has temperature protection;

3. The battery pack has good security and long cycle life;

4. The battery has charging management with 5V input;

5. Have 5V stable input;

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
