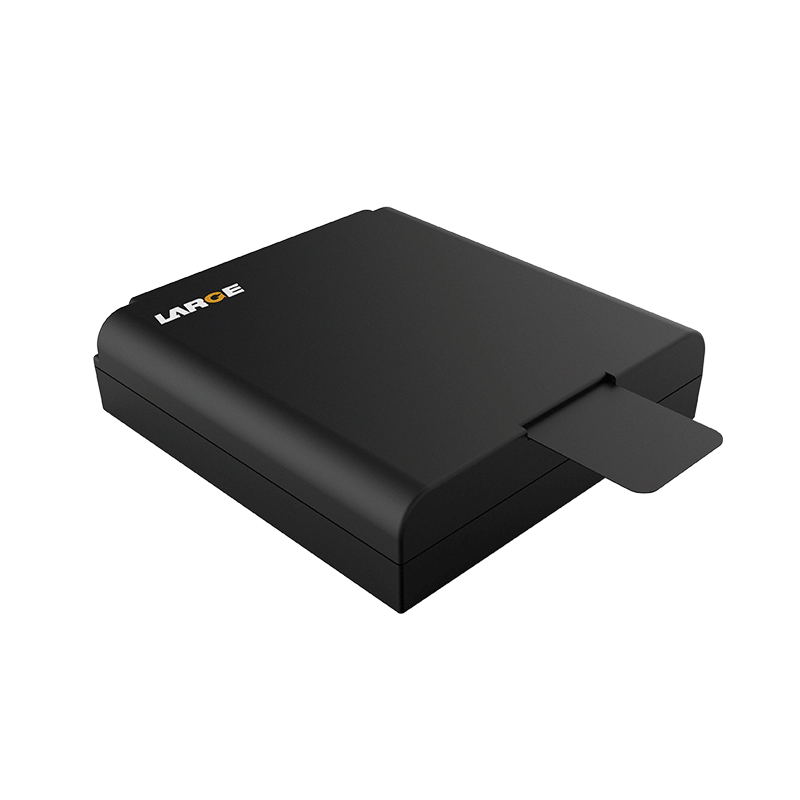

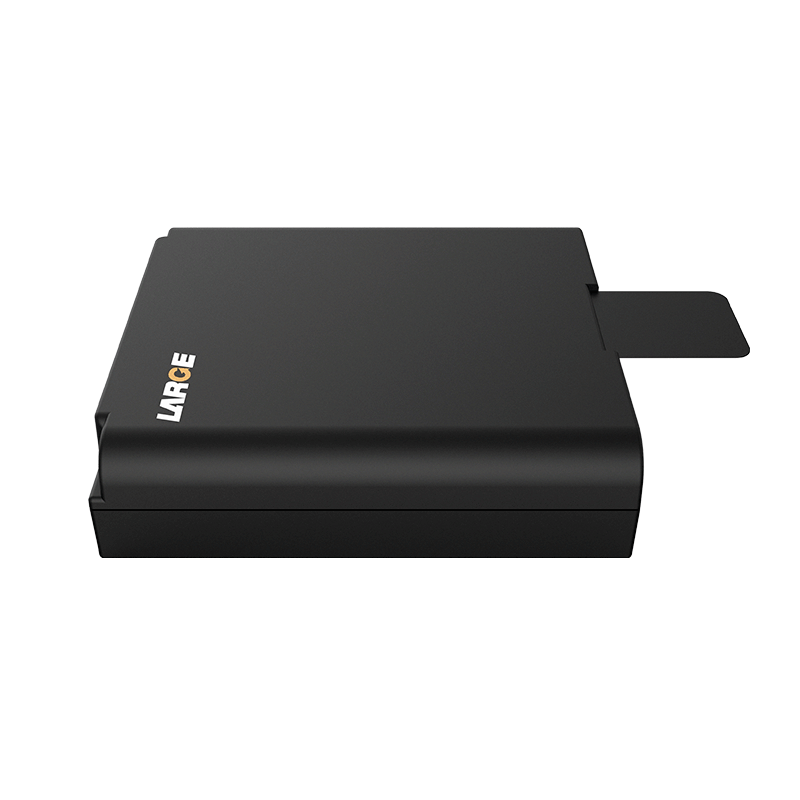

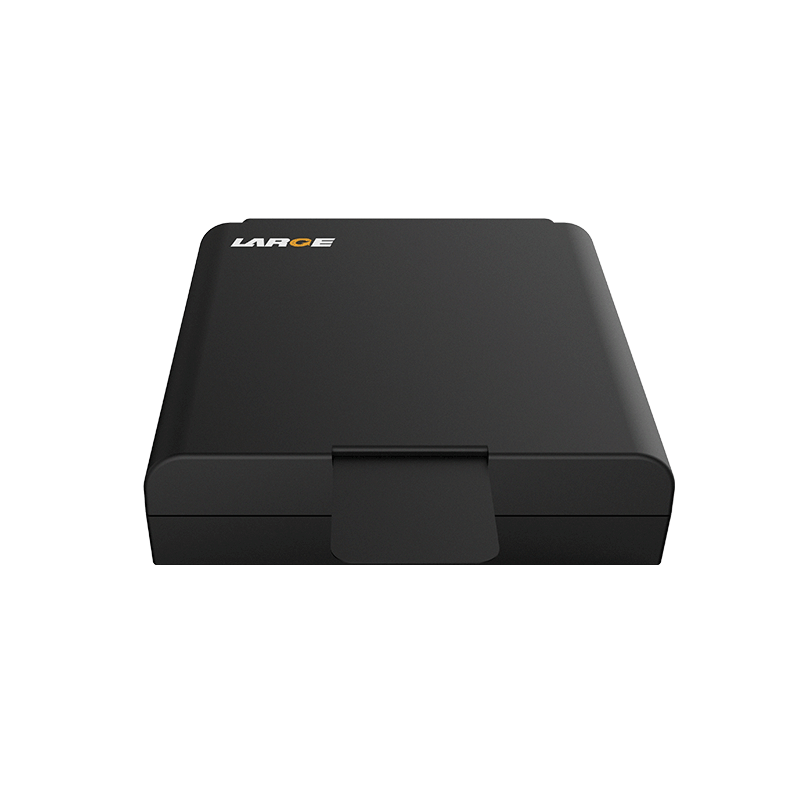

14.8V 3200mAh 18650 Lithium Ion Battery LG Battery for Medical Device with SMBUS Communication

14.8V 3200mAh 18650 Lithium Ion Battery LG Battery for Medical Device with SMBUS Communication
14.8V 3200mAh 18650 Lithium Ion Battery LG Battery for Medical Device with SMBUS Communication
14.8V 3200mAh 18650 Lithium Ion Battery LG Battery for Medical Device with SMBUS Communication
14.8V 3200mAh 18650 Lithium Ion Battery LG Battery for Medical Device with SMBUS Communication

Product Detail

Product number: 30AQ063-01

Cell model:18650/3200mAh/3.7V

Battery specification: 18650-4S1P/14.8V/3200mAh

Nominal voltage:14.8V

Nominal capacity:3200mAh

Charging voltage: 16.8V

Charging current: ≤2.5A

Discharging current: 3A

Instant discharging current: 5A

End-off voltage: 12V

Internal resistance: ≤400mΩ

Battery weight: 210g

Product dimension: 81*76*10.1mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~45 ℃

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, Sumbus communication, etc.

Application field: medical power supply


Product features

1. Current: maximum sustainable discharge current is 5A.

2. Data communication management: adopt imported software management chip, SMBus communication function, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

3. Battery characteristics: adopt imported LG battery with ultra large capacity.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
