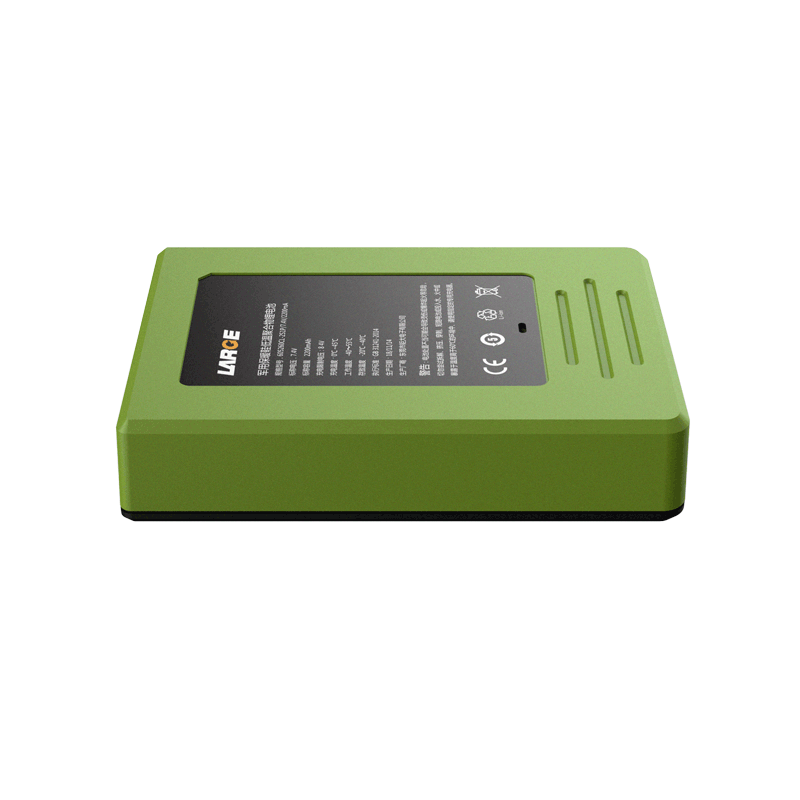

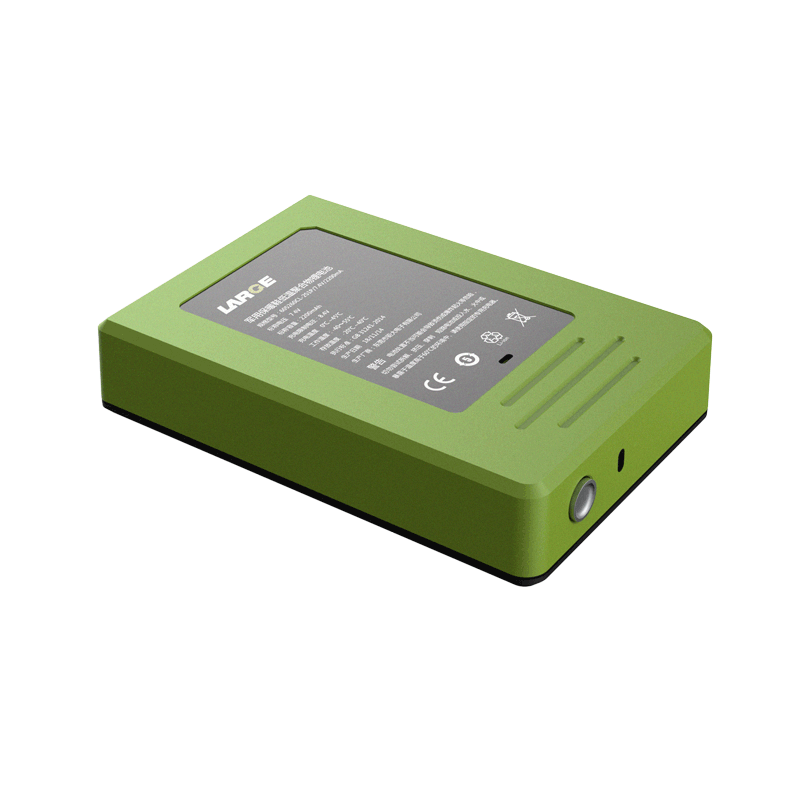

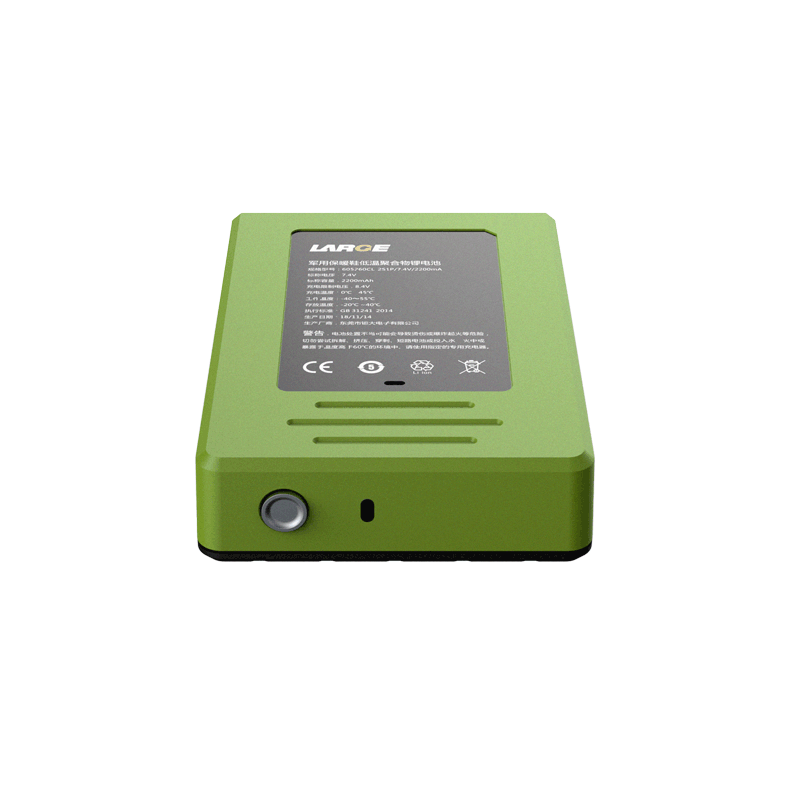

Custom Lithium ion Battery Pack

7.4V 2200mAh Low Temperature Polymer Battery for Military Warm Shoes

  • Model number:35AQ327-01

  • Nominal voltage:7.4V

  • Nominal capacity:2200mAh

  • Battery cell:605260CL/2200mAh/3.7V

  • Dimension:85*58.5*18mm(Max)

  • Application:low temperature site detector, low temperature thermal clothing, military warm shoes, etc.

Product Detail

Product number: 35AQ327-01

Cell model:605260CL/2200mAh/3.7V

Battery specification: 605260CL-2S1P/7.4V/2200mAh

Nominal voltage:7.4V

Nominal capacity:2200mAh

Charging voltage: 8.4V

Charging current: 440mA

Discharging current: 440mA

Instant discharging current: 1100mA

End-off voltage: 6V

Internal resistance: ≤300mΩ

Battery weight: 100g

Product dimension: 85*58.5*18mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~55℃

Storage temperature: -20~40℃

Temperature protection: 60℃±5℃

Battery case: plastic housing, olive green

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, low power alarm, etc.

Application field: low temperature site detector, low temperature thermal clothing, military warm shoes, etc.


Parameter function: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, power display, low power alarm, etc.

Data communication management: adopt IC+TI charger management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

The battery pack has good security, national standard, stable performance and long cycle life.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
