Custom Lithium Ion Battery Pack

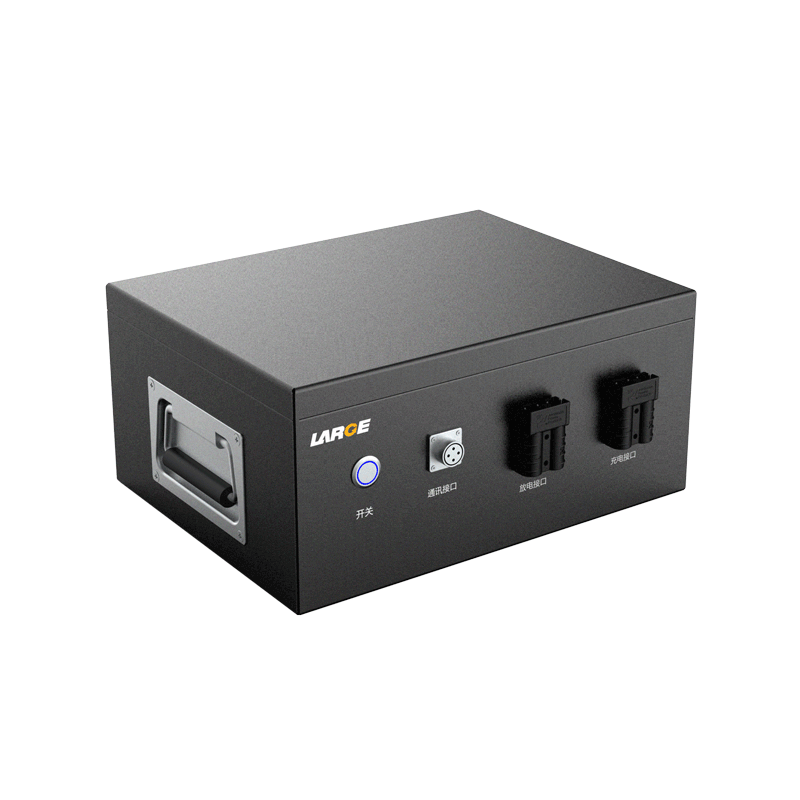

26650 48V 35Ah LiFePO4 Battery for Security Inspection Equipment

  • Model number:04EQ223-01

  • Nominal voltage:48.0V

  • Nominal capacity:35000mAh

  • Battery cell:26650/3.2V/3.5Ah

  • Dimension:360×260×160mm(Max)

  • Application:instrument and equipment

Product Detail

Product number: 04EQ223-01

Cell model:26650/3.2V/3.5Ah

Battery specification: 26650/15S10P/48V/35Ah

Nominal voltage:48V

Nominal capacity:35Ah

Charging voltage: 54V

Charging current: ≤10A

Discharging current: 35A

Instant discharging current: 50A

End-off voltage: 37.75V

Internal resistance: ≤200mΩ

Battery weight: 30Kg

Product dimension: 360×260×160mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: instrument and equipment


Product features

1. Shockproof: fill in the cold rolling metal plate housing by shockproof structure design, which meets the requirements of good security and nice reliability.

2. Salt spray proofing: spray the powder on the surface to avoid salt spray mold and be suitable to marine working environment.

3. Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
