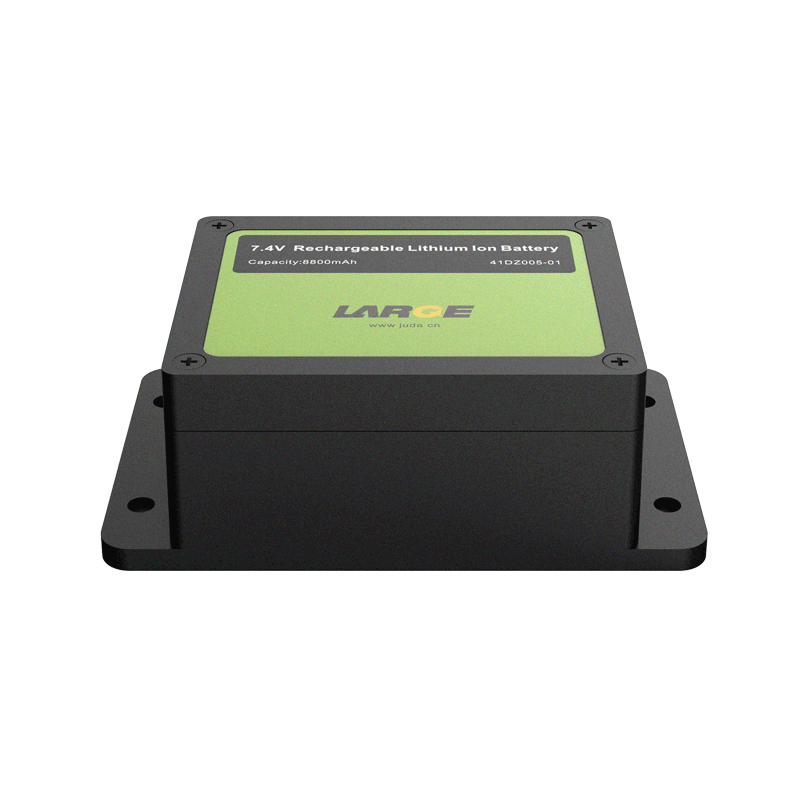

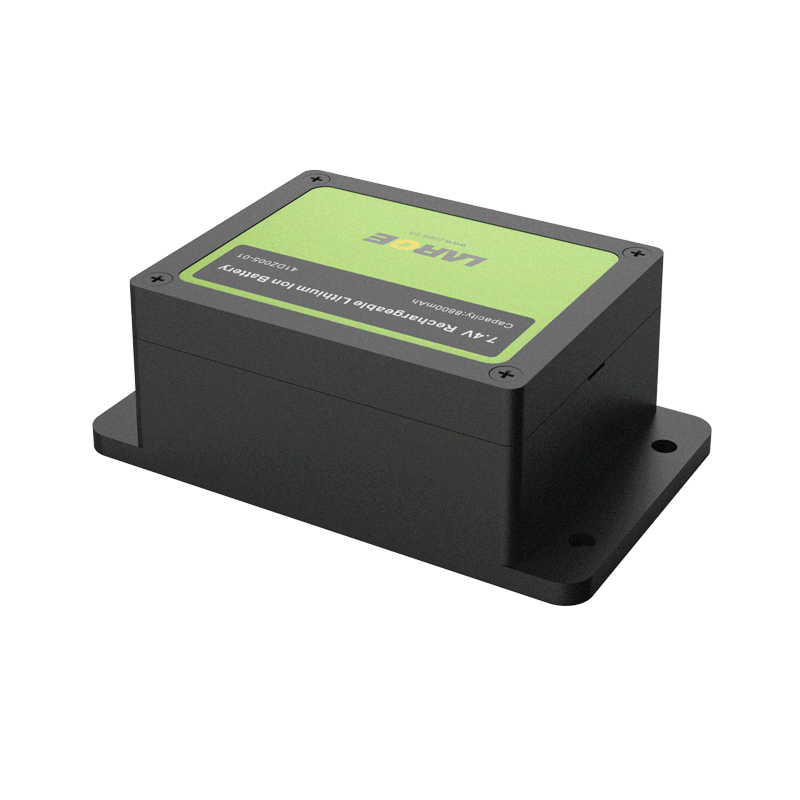

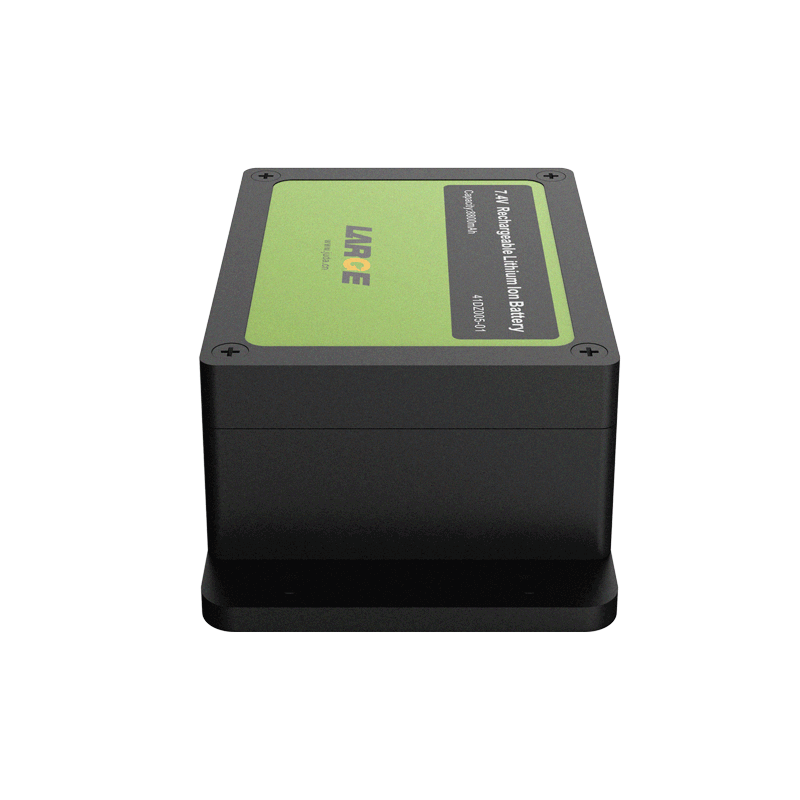

Custom Lithium ion Battery Pack

18650 3.7V Low Temperature Battery for Industrial Environment Detection

Product Detail

Product number: 41DZ005-01

Cell model:18650/3.7V/2200mAh

Battery specification: 18650-2S4P-8800mAh-7.4V

Nominal voltage:7.4V

Nominal capacity:8800mAh

Charging voltage: 8.4V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 4A

End-off voltage: 5V

Internal resistance: ≤200mΩ

Battery weight: 400G

Product dimension: 115*90*55mm( L*W*H)

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~35 ℃

Temperature protection: 65℃±5℃

Battery case: engineering plastic

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and temperature measurement.

Application field: Industrial environment detection

Product features

1. Output connector: normal PH2.0 5pin plug is adaptable to the device with this kind of plug.

2. Cell: adopt ultra-low temperature cell, which can discharge at -40℃.

3.The battery has good security, nice low temperature performance, long cycle life and waterproof capacity.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
