Product Detail

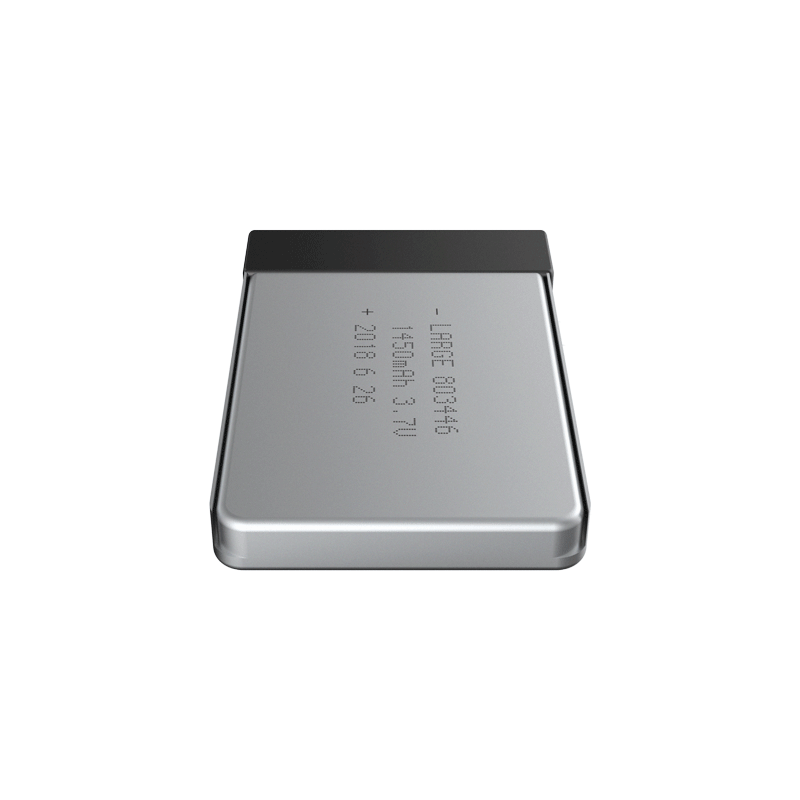

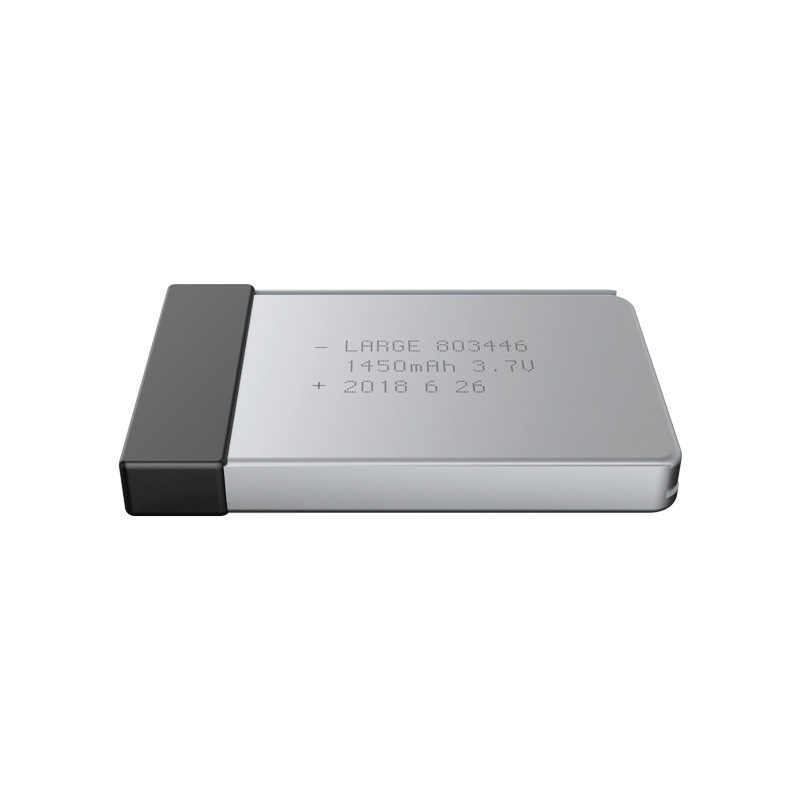

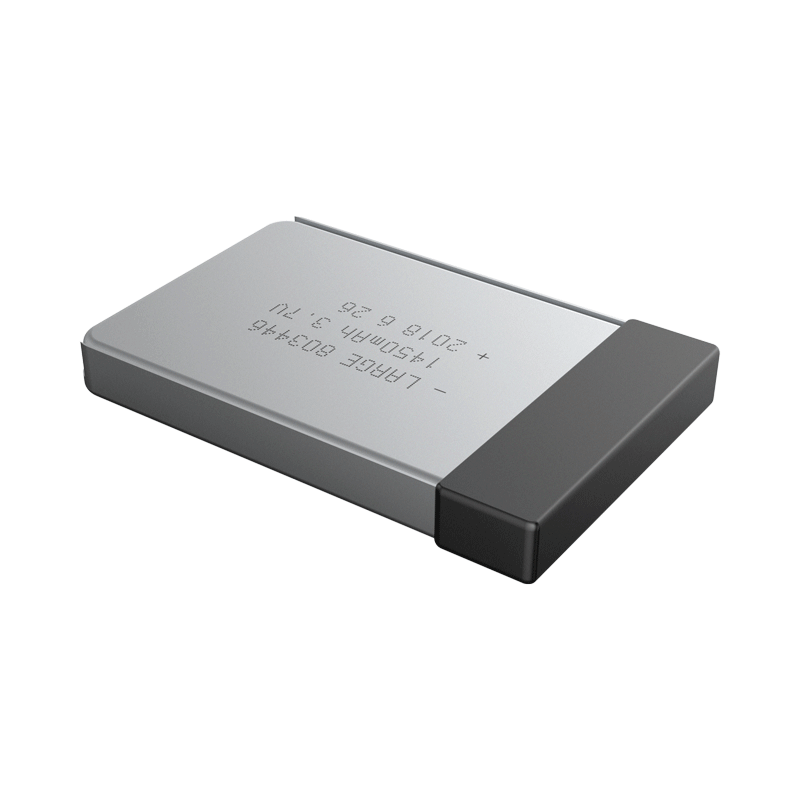

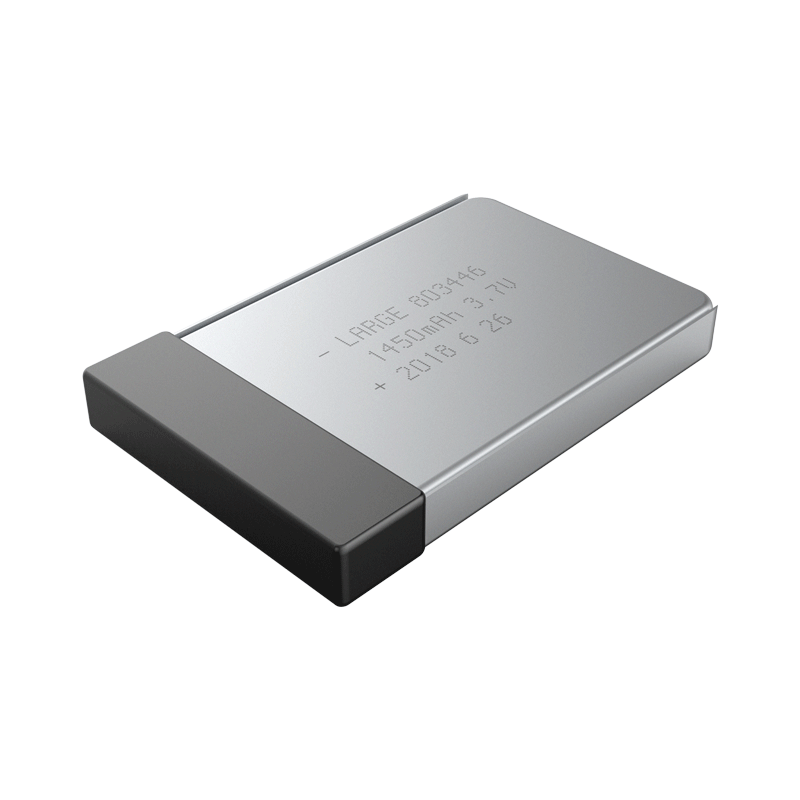

3.7V 1450mAh Lithium Ion Battery for EPOS of Cellphone


Product number: 11AQ038-02

Cell model:803446/3.7V/1450mAh

Battery specification: 803446-1S1P/3.7V/1450mAh

Nominal voltage:3.7V

Nominal capacity:1450mAh

Charging voltage: 4.2V

Charging current: ≤500mA

Discharging current: 500mA

Instant discharging current: 1.0mA

End-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 30g

Product dimension: 49*35*8.0mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: high temperature tape

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: EPOS of cellphone, test and control instrument


*
*
*
