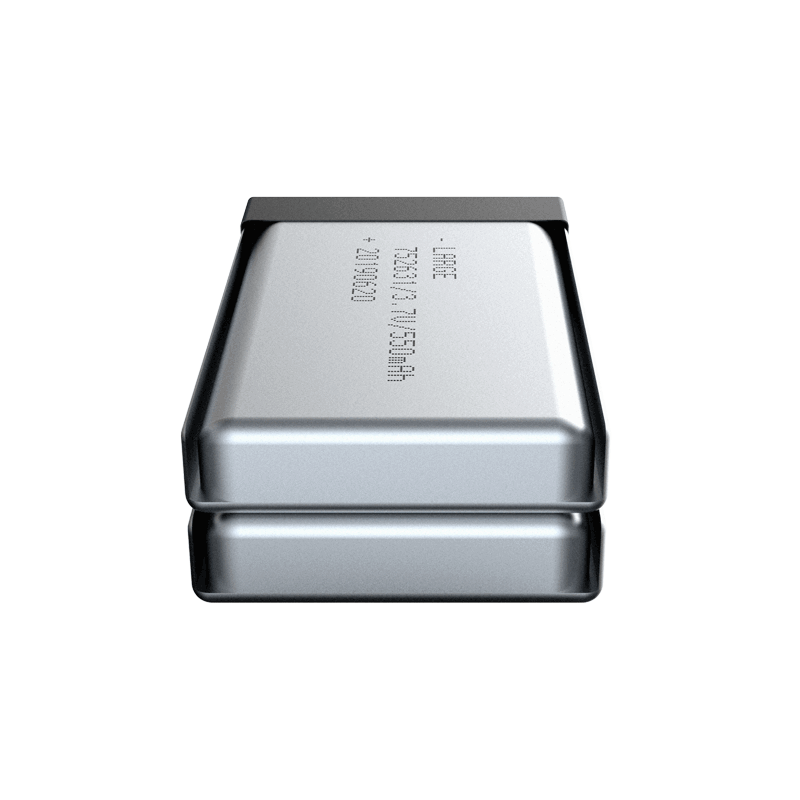

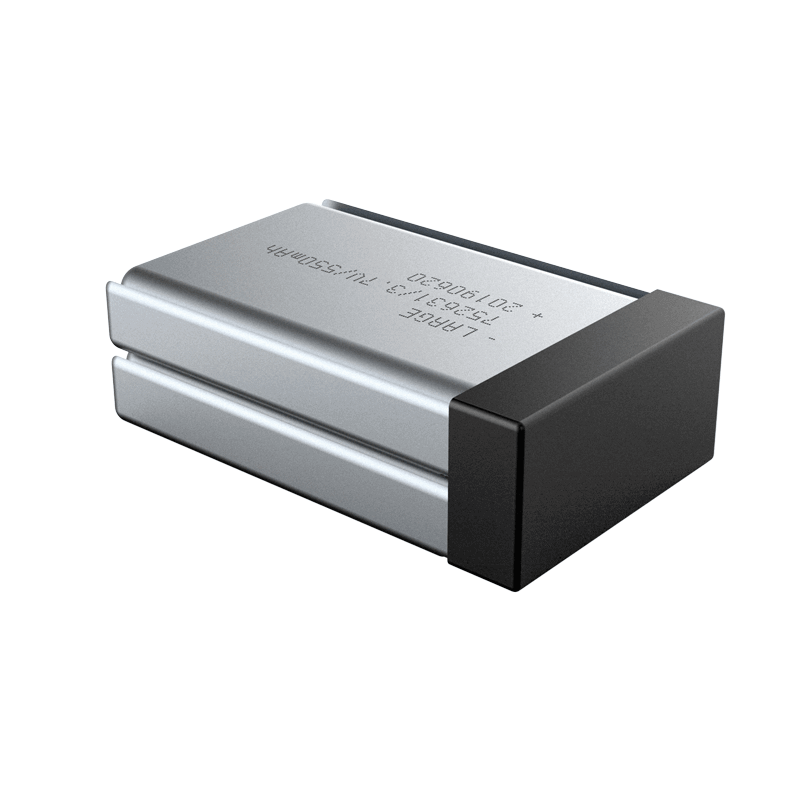

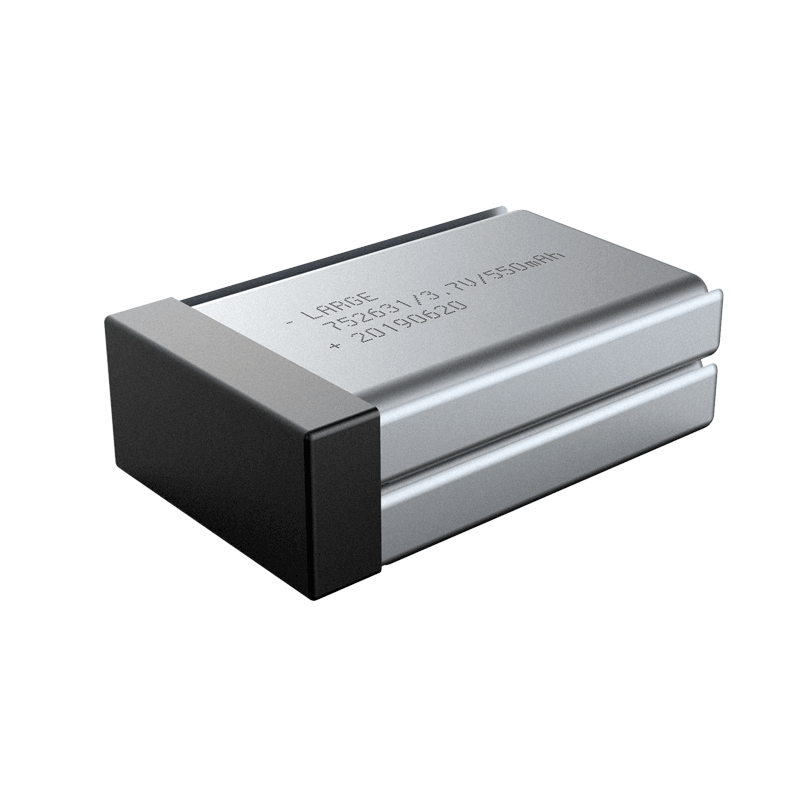

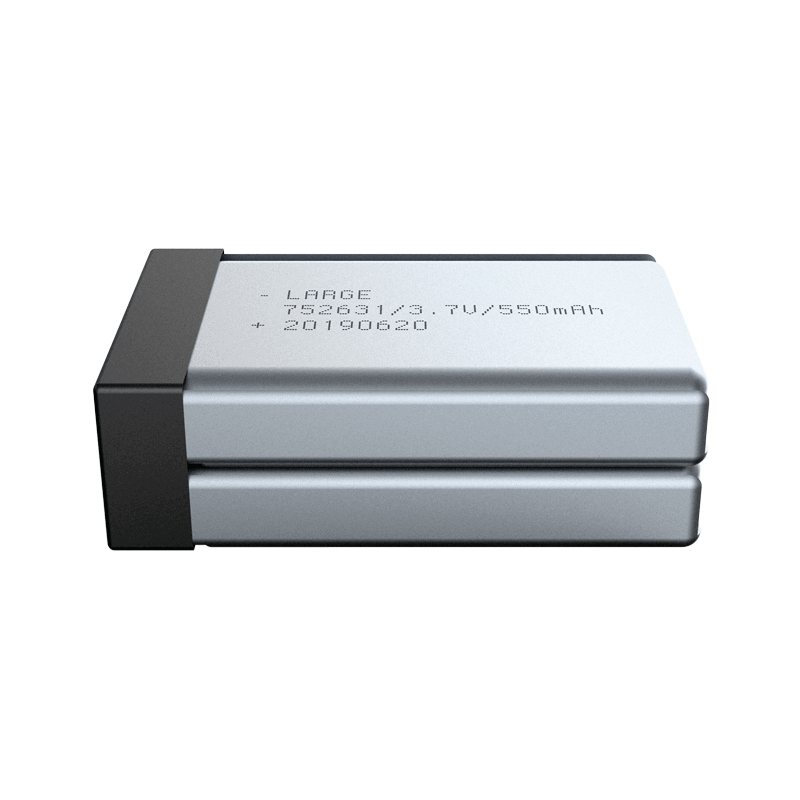

7. 4V 550mAh Lithium Polymer Battery for Test and Control Instrument

Product number: 37AQ011-01

Cell model：752631/3.7V/550mAh

Battery specification: 752631-2S1P/7.4V/550mAh

Nominal voltage：7.4V

Nominal capacity：550mAh

Charging voltage: 8.4V

Charging current: ≤250mA

Discharging current: 550mA

Instant discharging current: 1.0A

End-off voltage: 5.5V

Internal resistance: ≤240mΩ

Battery weight: 26g

Product dimension: 34.0*26.6*15.5mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: high temperature tape

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: test and control instrument
