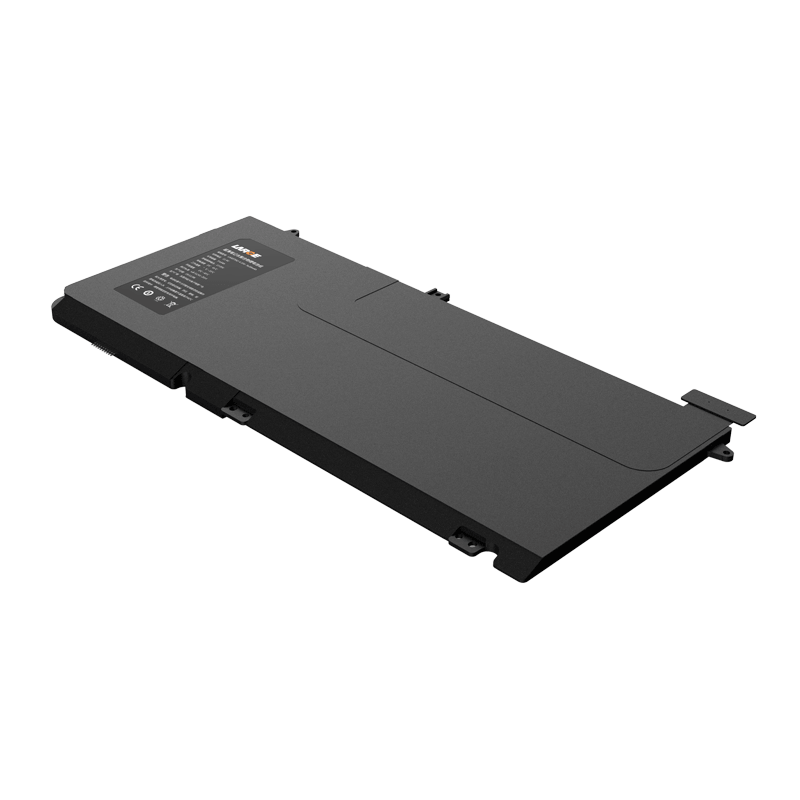

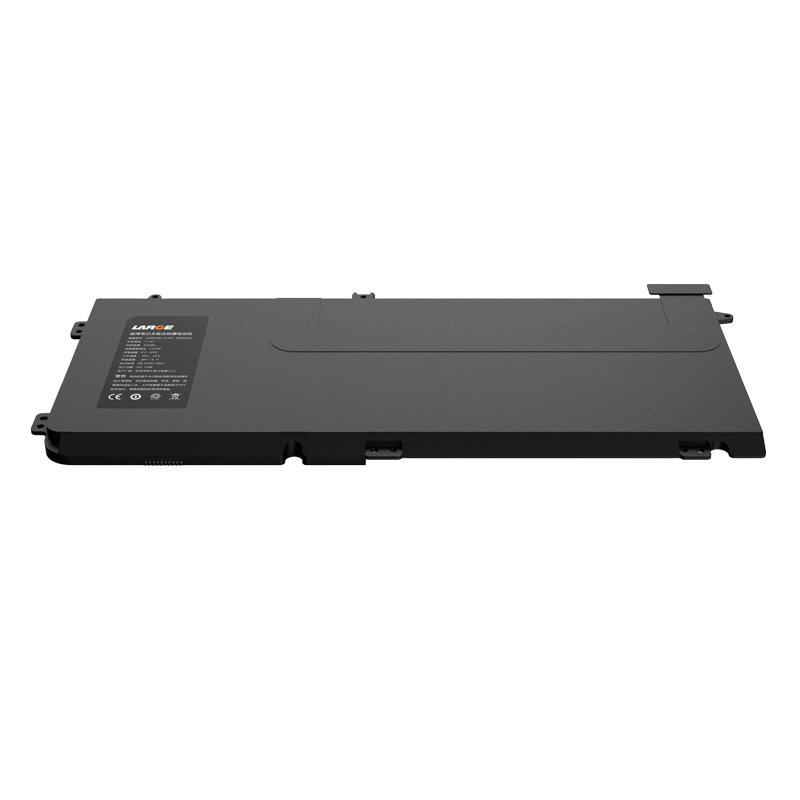

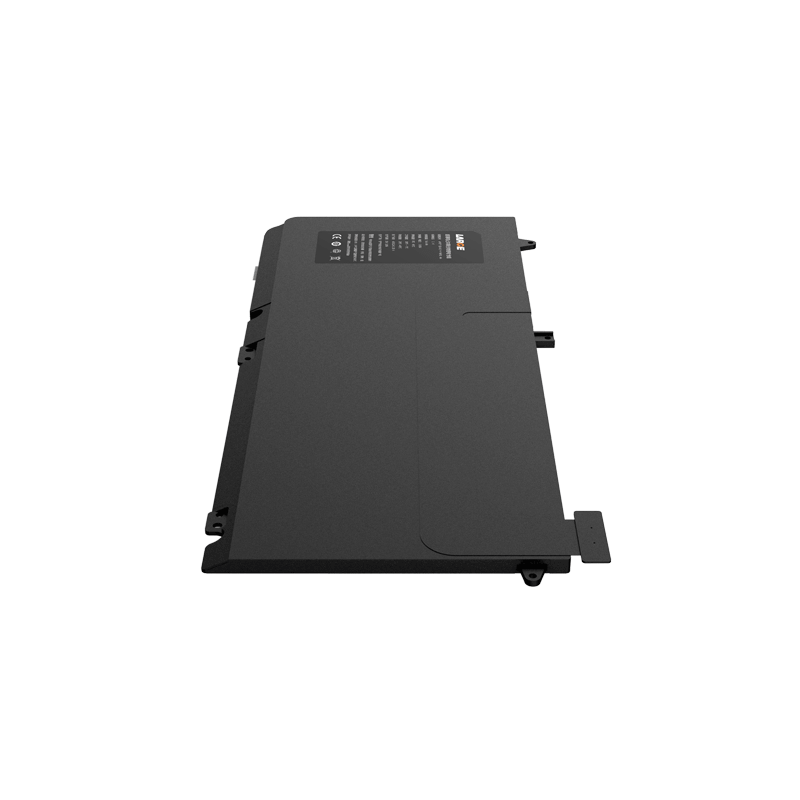

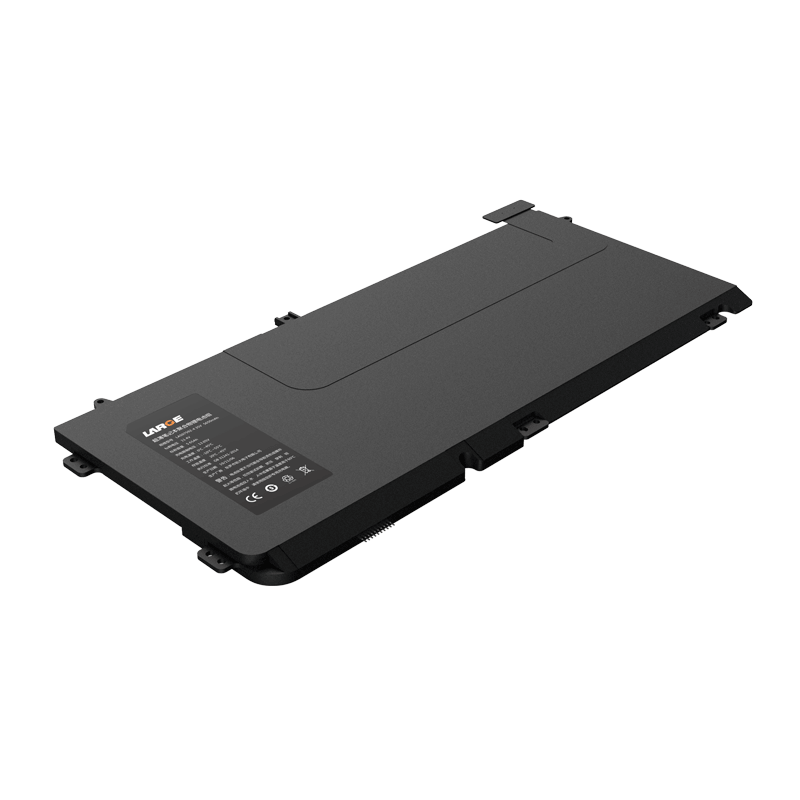

11.4V 5.65Ah Lithium Polymer Battery for Ultrabooks

Product Detail

Product number: 33DZ007-05

Cell model:LA507592-4.35V- 5650mAh

Battery specification: 11.4V 5.65Ah

Nominal voltage:11.4V

Nominal capacity:5.65Ah

Charging voltage: 13.05V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 5A

End-off voltage: 9V

Internal resistance: ≤150mΩ

Battery weight: 280g

Product dimension: 233.37*103.42*7.6mm(L*W*H)

Charging temperature:0~45℃

Discharging temperature: -10~55℃

Storage temperature: -20~45℃

Battery case: industrial grade

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, sumbus communication, etc.

Application field: laptop


Product features

Current: It can keep discharging in 4A at maximum.

Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

Cell characteristics: use self - developed ultra - high capacity polymer cell.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
