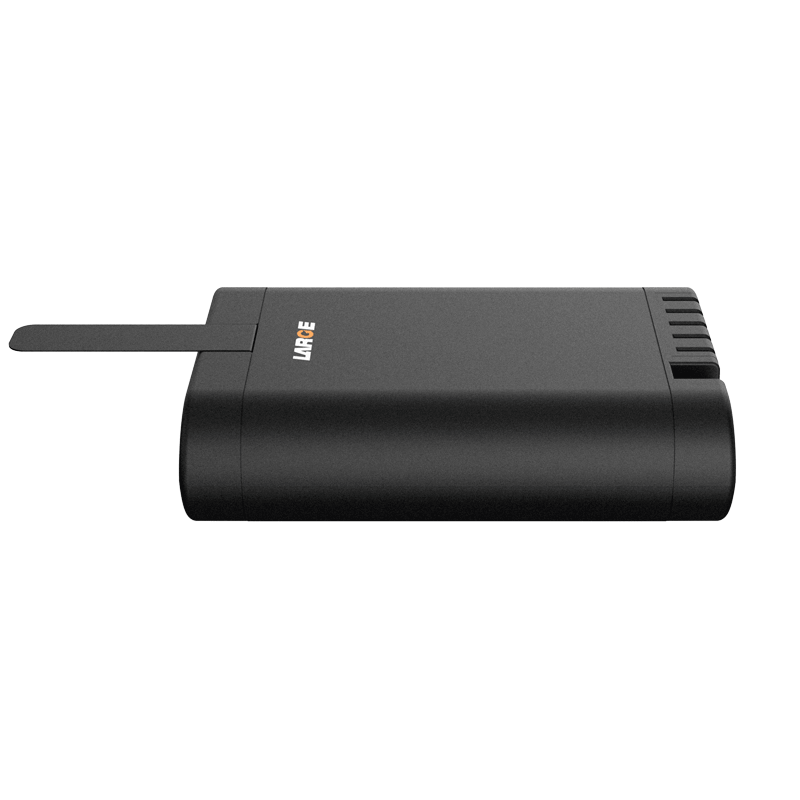

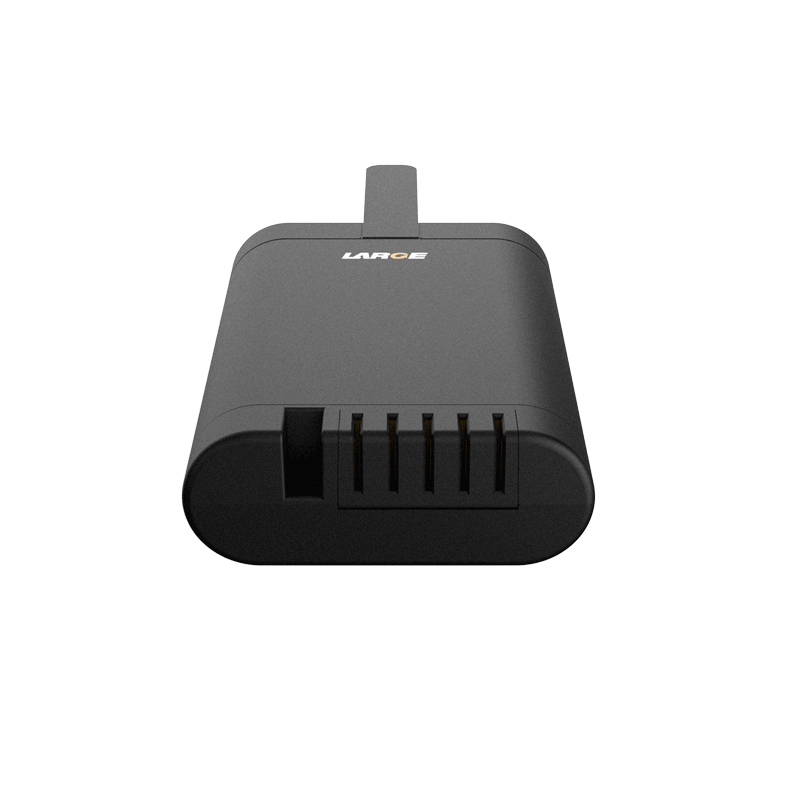

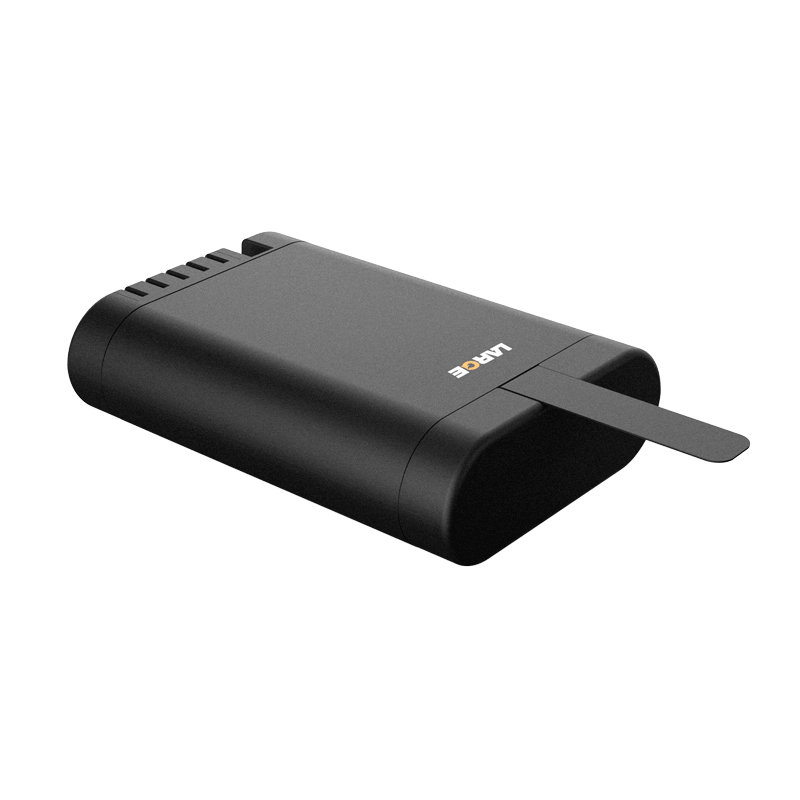

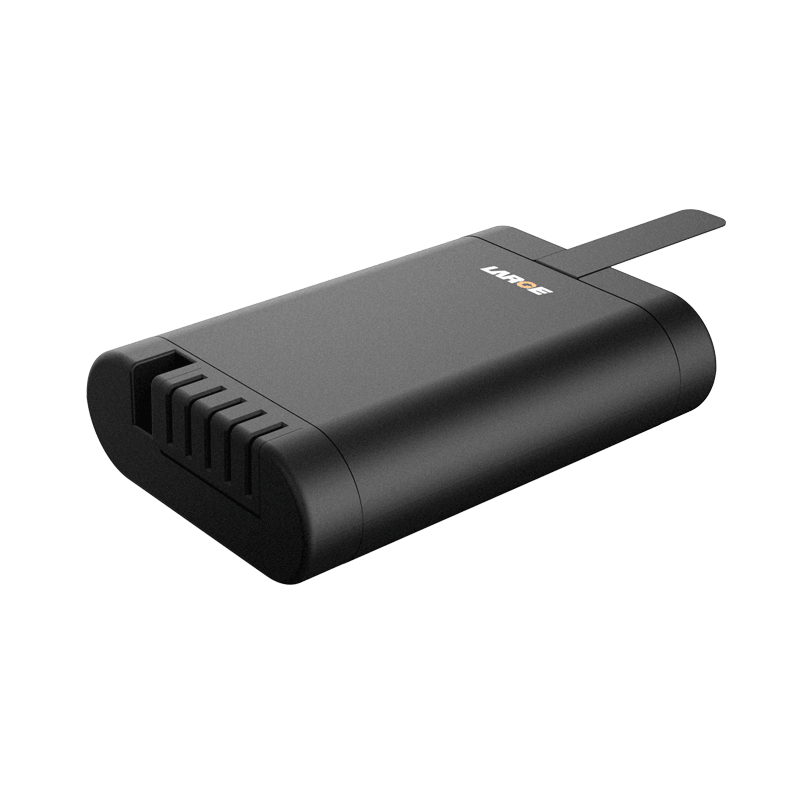

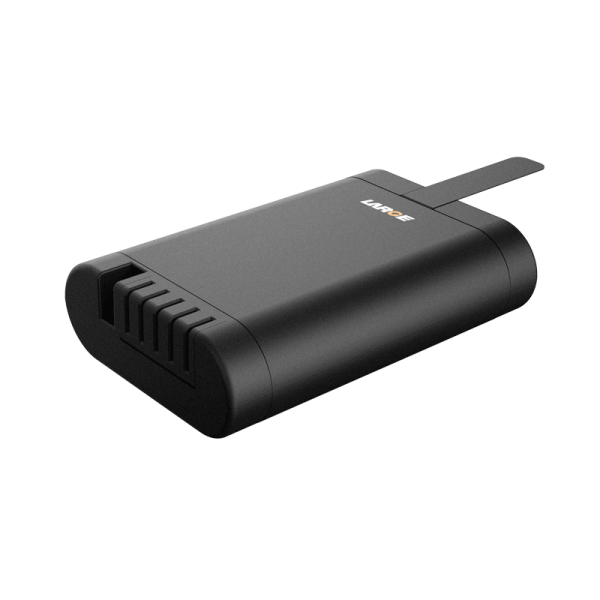

18650 10.8V 3350mAh Samsung Battery 18650 Battery for Network Signal Tester

Product number: 01WQ0037-14

Cell model：INR18650-35E/3350mAh/3.6V-SDI

Battery specification: 18650-3S1P/3350mAh/10.8V

Nominal voltage：10.8V

Nominal capacity：3350mAh

Charging voltage: 12.6V

Charging current: 670mA

Discharging current: 670mA

Maximum discharging current: 3400mA

End-off voltage: 8.1V

Internal resistance: ≤200mΩ

Battery weight: 170g

Product dimension: 85.2*59.1*22.2mm（Max）

Charging temperature：0～45℃

Discharging temperature: -10～60 ℃

Storage temperature: -20～45℃ less than three months

Battery package: plastic shell ABS+PC30%

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: industrial inspection, network signal tester

Product features

ABS+PC housing increases battery reliability and solidity. Its fire rating is UL94 V-0.

The battery pack has good security and nice low-temperature discharge performance.

Battery management: adopt imported protective chip, which has good stability, high precision monitoring, accurate control with temperature protection, so as to eliminate the security risks.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
