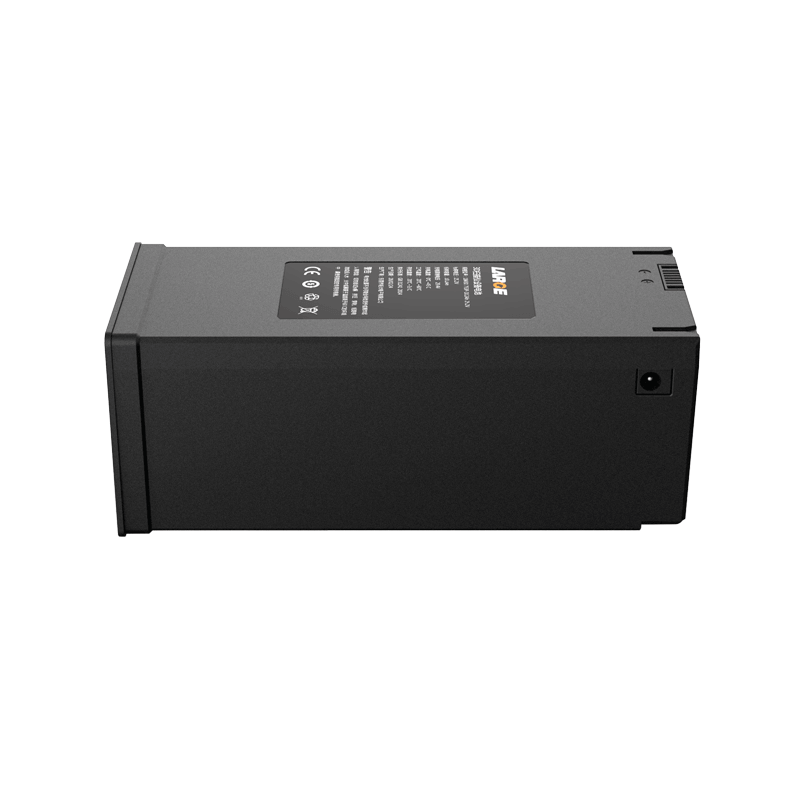

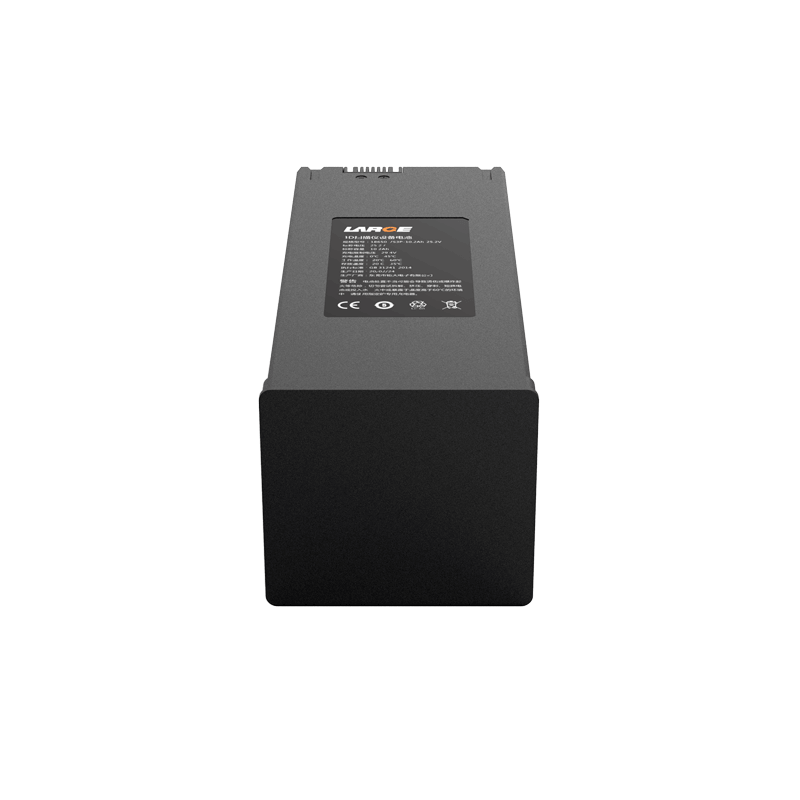

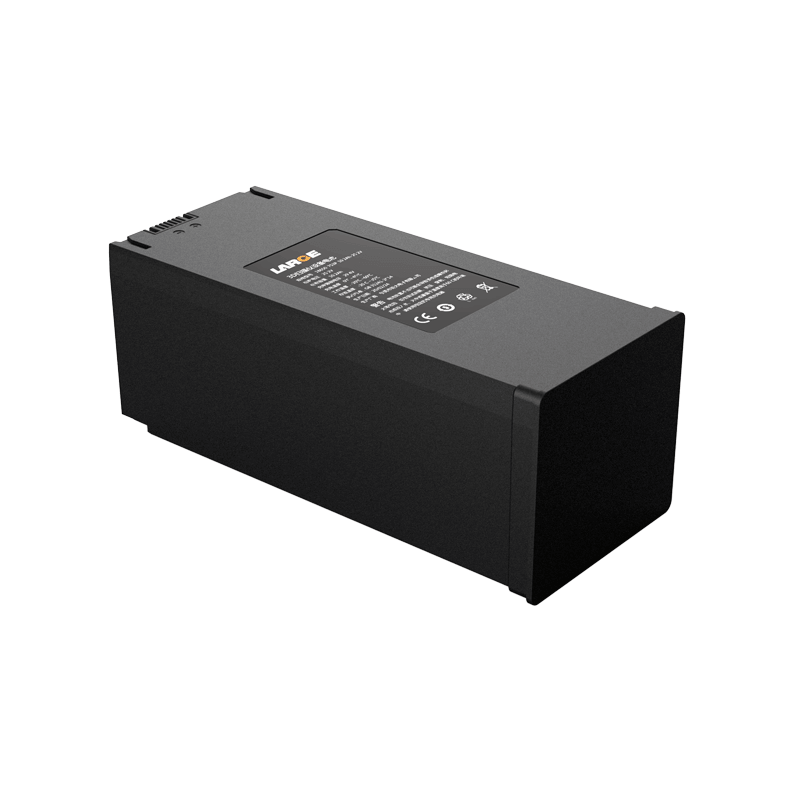

18650-7S3P 10.2Ah 25.2V Lithium ion Battery Pack
Product Number:
08DQ0013-01
Nominal voltage:
25.2V
Nominal capacity:
10.2Ah
Battery Configuration:
18650-7S3P
Dimension:
180 × 71 × 78 mm
Application:
portable scanner
Durable ABS+PC, Gold-plated terminal, High-precision BMS
Product Overview
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 08DQ0013-01 |
| Cell Model | 18650-3350mAh-3.6V |
| Battery Configuration | 18650-7S3P |
| Nominal Voltage | 25.2V |
| Nominal Capacity | 10.2Ah |
| Rated Energy | 257Wh |
| Charging Voltage | 29.4V |
| Discharge Cut-off Voltage | 21V |
| Standard Charging Current | ≤5A |
| Standard Discharge Current | 2A |
| Max Continuous Discharge Current | 2A |
| Internal Resistance | ≤100mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ 60℃ |
| Storage Temperature | -20 ~ 35℃ |
| Dimensions | 180 × 71 × 78 mm |
| Weight | 1350 g |
| Battery Case | ABS+PC engineering plastic |
| Protection System | Short circuit, overcharge, overdischarge, over-temperature, overcurrent, ESD protection |
Application Background
This battery solution is designed for portable 3D scanners and mapping equipment, suitable for high-precision scanning and real-time data collection scenarios.
The devices require long-term continuous operation and stable output to ensure scanning accuracy and data integrity, demanding high performance in endurance, output reliability, and lightweight design.
Project Challenges
- Continuous operation required for 6–8 hours or more
- Instantaneous discharge up to 10A may cause voltage fluctuations
- Frequent charging and discharging, requiring long cycle life and stability
- Limited device size, strict constraints on dimensions and weight
Customized Battery Solution
- High-voltage 25.2V output structure to support high-precision scanning power requirements
- ABS+PC casing for enhanced mechanical protection and reliability
- High-precision battery management chip with ESD and temperature protection for safety
- Gold-plated metal output terminals to improve conductivity and suit portable device layout
Application Results
- Supports continuous operation for 6–8 hours or more
- Stable output under high-load scanning, data acquisition accuracy improved by ~15%
- Lightweight design enhances portability
- Excellent cycle performance, extending battery and device service life
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
