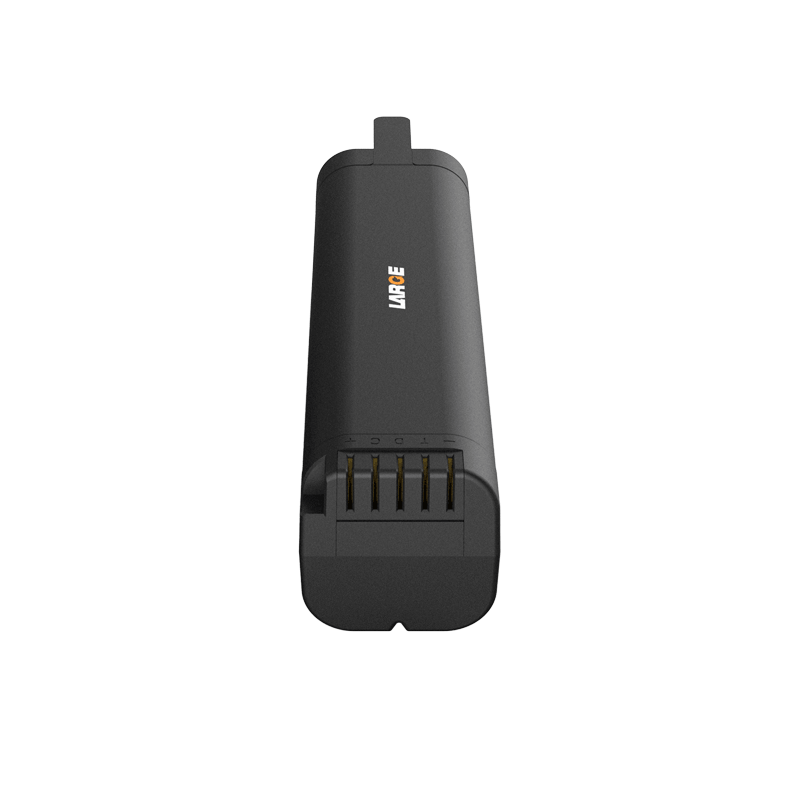

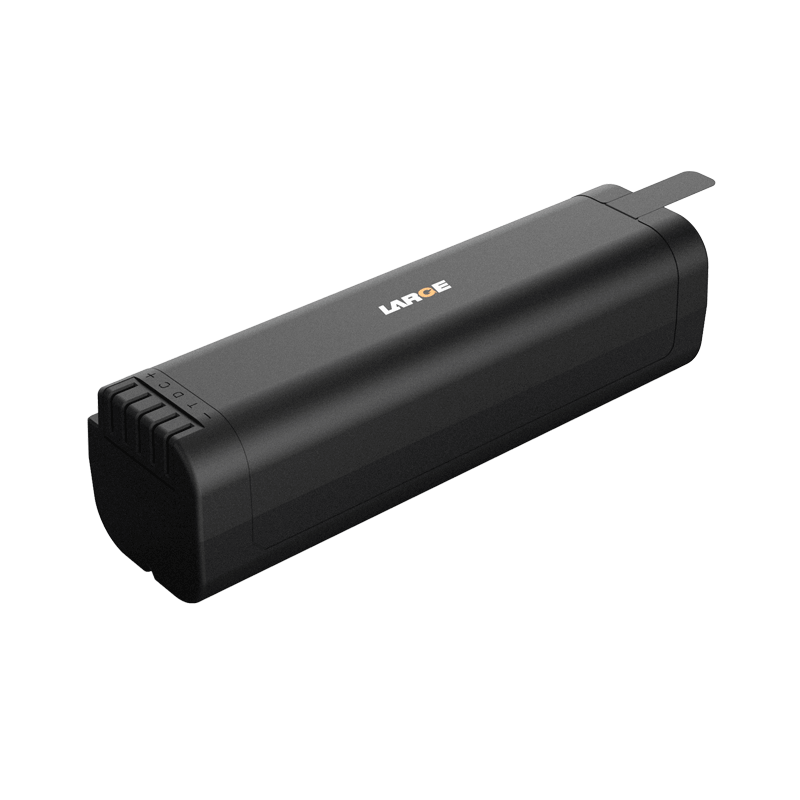

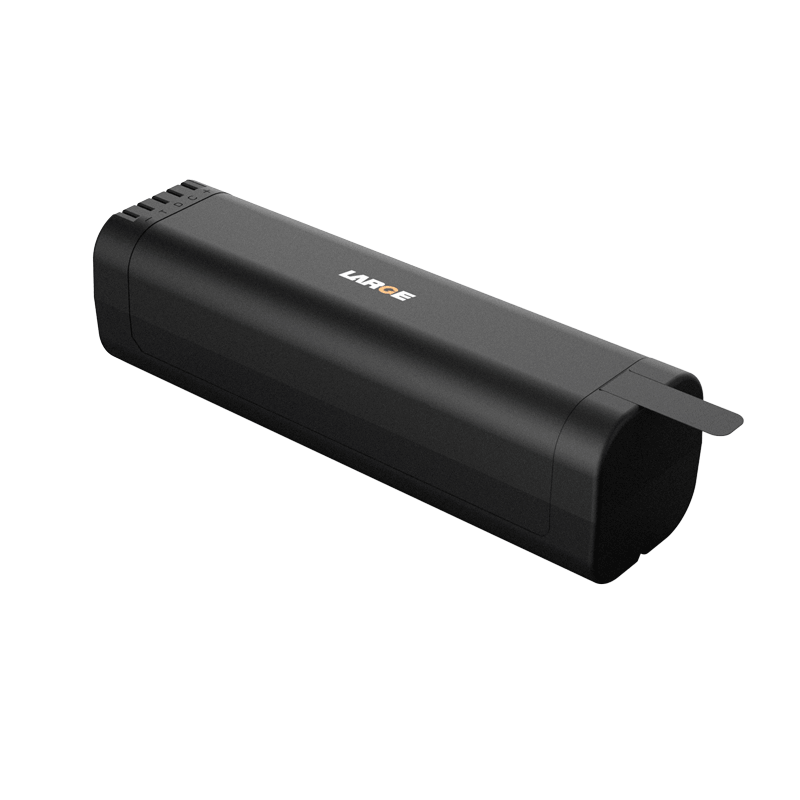

18650 14.4V 6000mAh Lithium Ion Battery for Dialysis Machine

Product Detail

Product number: 36AQ389-01

Cell model:18650-3000mAh-3.6V

Battery specification: 18650-4S2P-6000mAh-14.4V

Product dimension: 142*41.5*35.88mm

Nominal voltage:14.4V

Nominal capacity:6000mAh

Charging voltage: 16.8V

Charging current: ≤3.3A

Discharging current: 1.3A

Instant discharging current: 3.3A

End-off voltage: 12V

Internal resistance: ≤280mΩ

Battery weight: 450g

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: ABS+PC case

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, overcurrent protection, ESD protection, etc.

Application field: portable ultrasonic exploration equipment, portable mapping equipment, medical dialysis machine


Product features

1. ABS+PC case increases battery reliability and immobility.

2. Hardware output terminal: adopt gold-plated shrapnel to increase conductive reliability.

3. Data communication management: Use TI-SMBus software management chip, SMBus communication accurate data transmit and precise temperature control to monitor and control battery status at real time.

4. The battery pack has good safety performance, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
