Custom Lithium ion Battery Pack

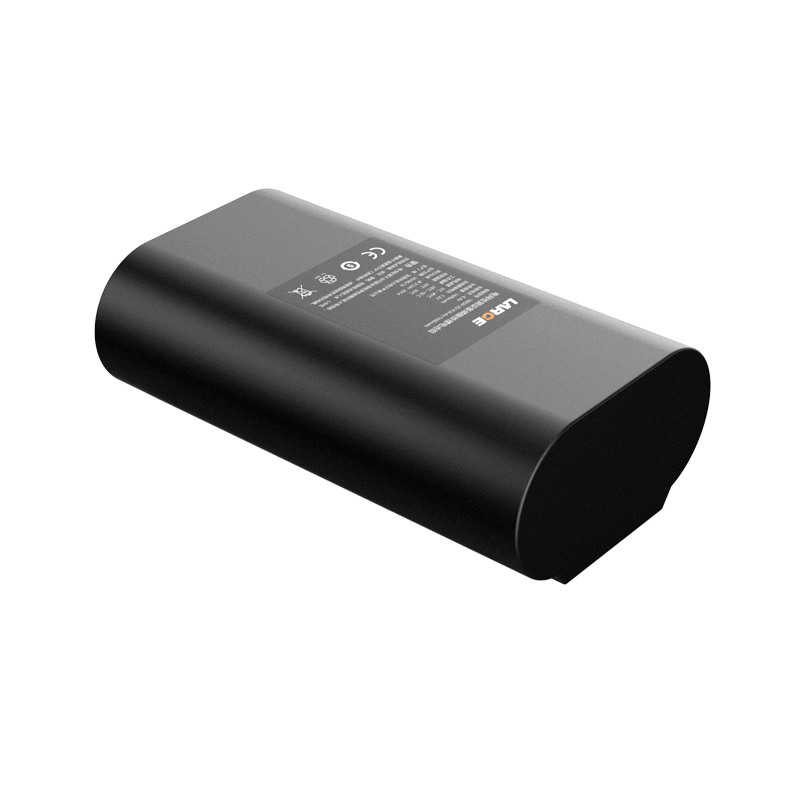

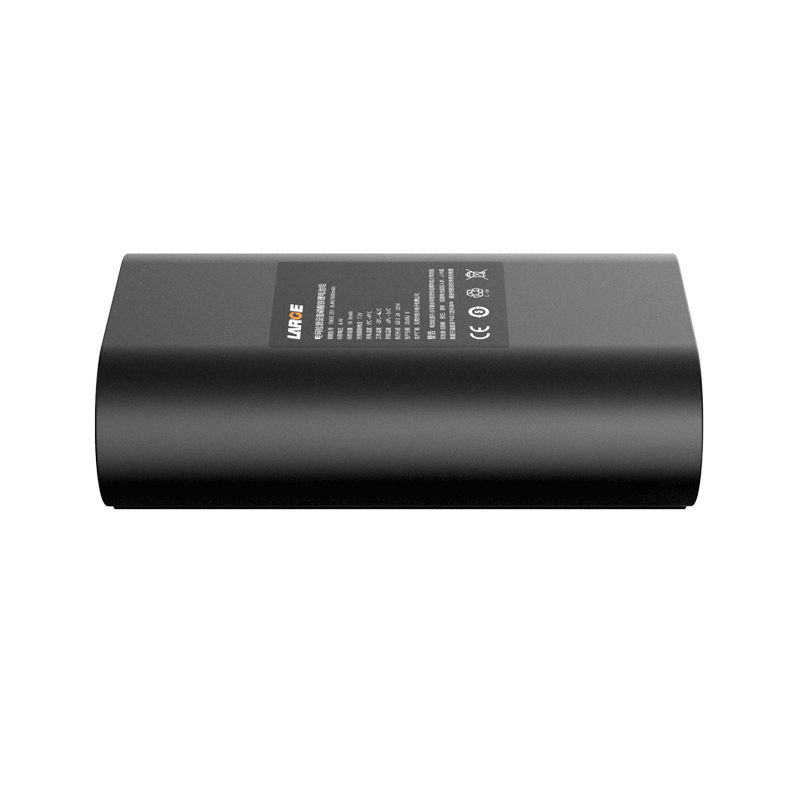

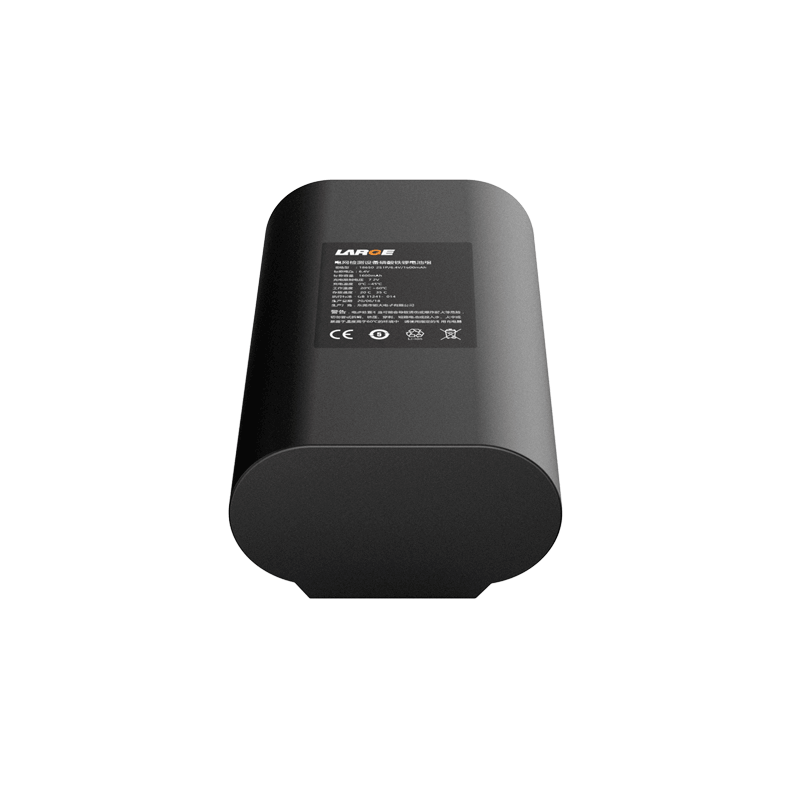

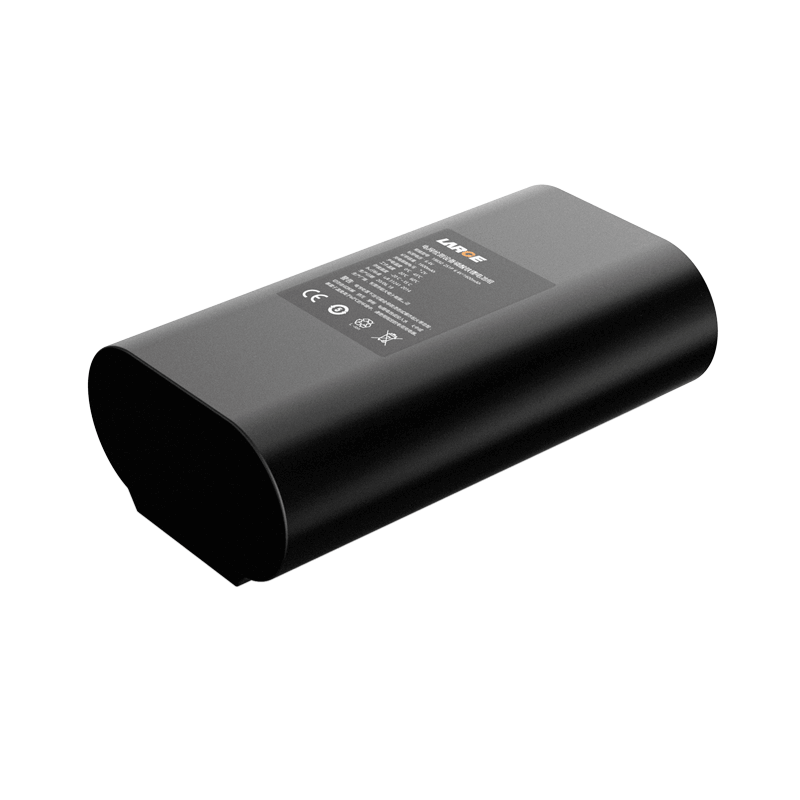

18650 6.4V 1600mAh Lishen Battery LiFePO4 Battery for Power Grid Detection Equipment

Product Detail

Product number: 34AQ018-02

Cell model:18650/1600mAh/3.2V

Battery specification: 18650-2S1P/6.4V/1600mAh/

Nominal voltage:6.4V

Nominal capacity:1600mAh

Charging voltage: 7.2V

Charging current: ≤800mA

Discharging current: 1.6A

Instant discharging current: 3A

End-off voltage: 4.0V

Internal resistance: ≤280mΩ

Battery weight: 85g

Product dimension: 67*37.5*22.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: power grid detection equipment
