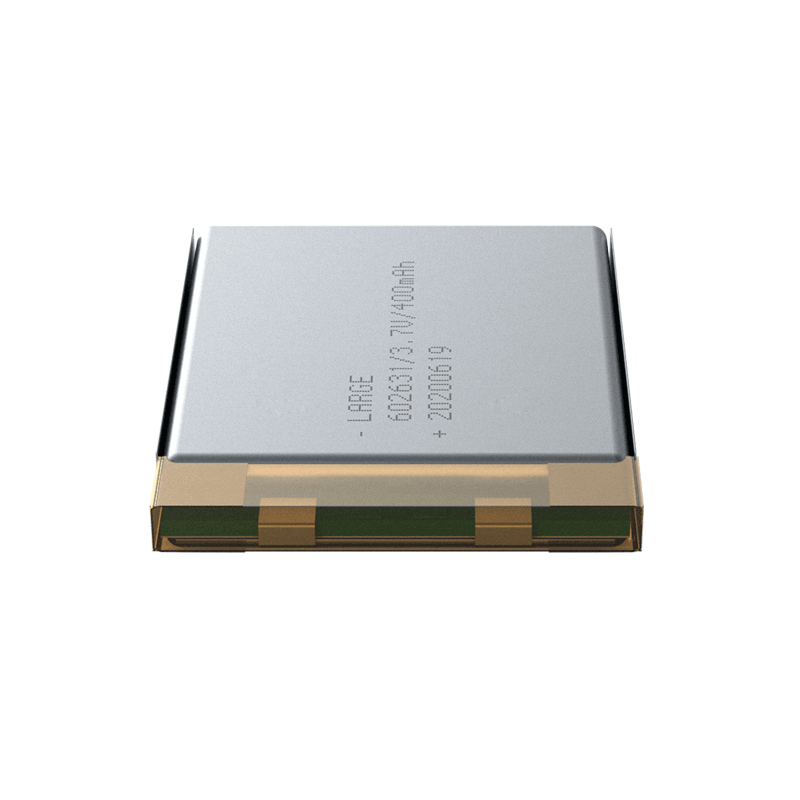

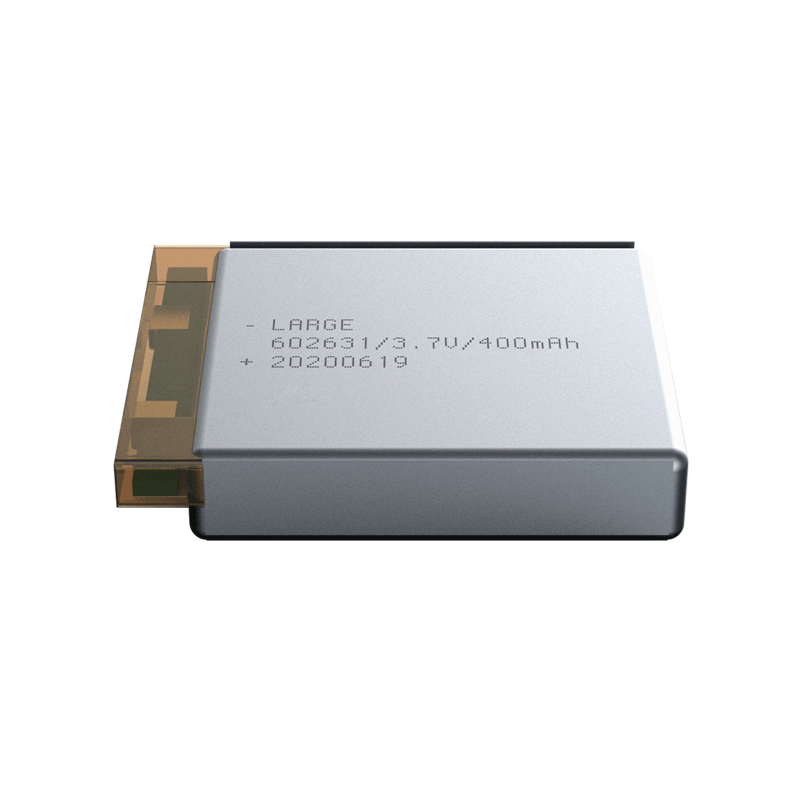

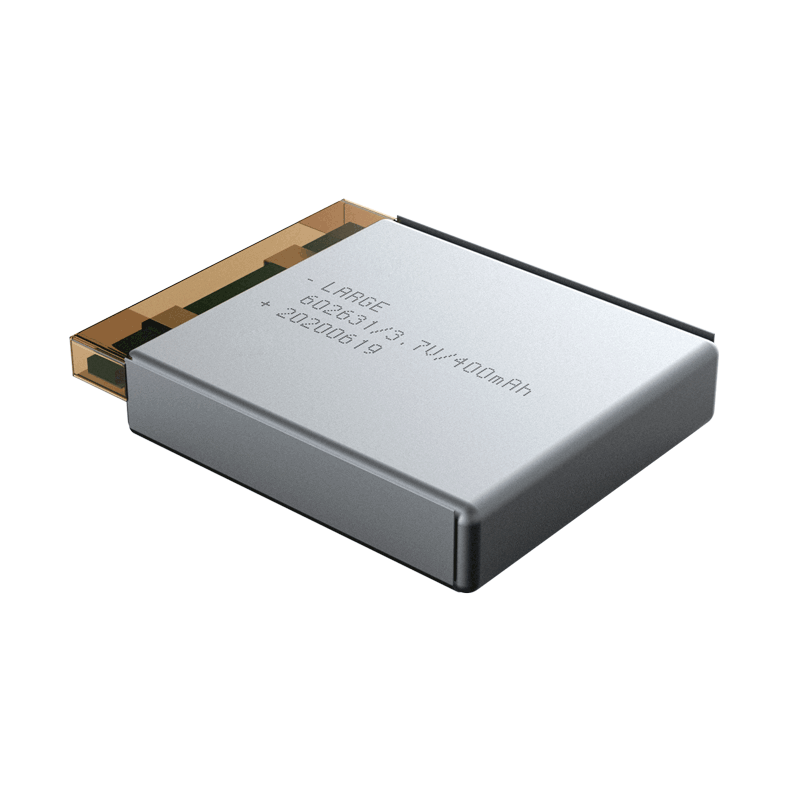

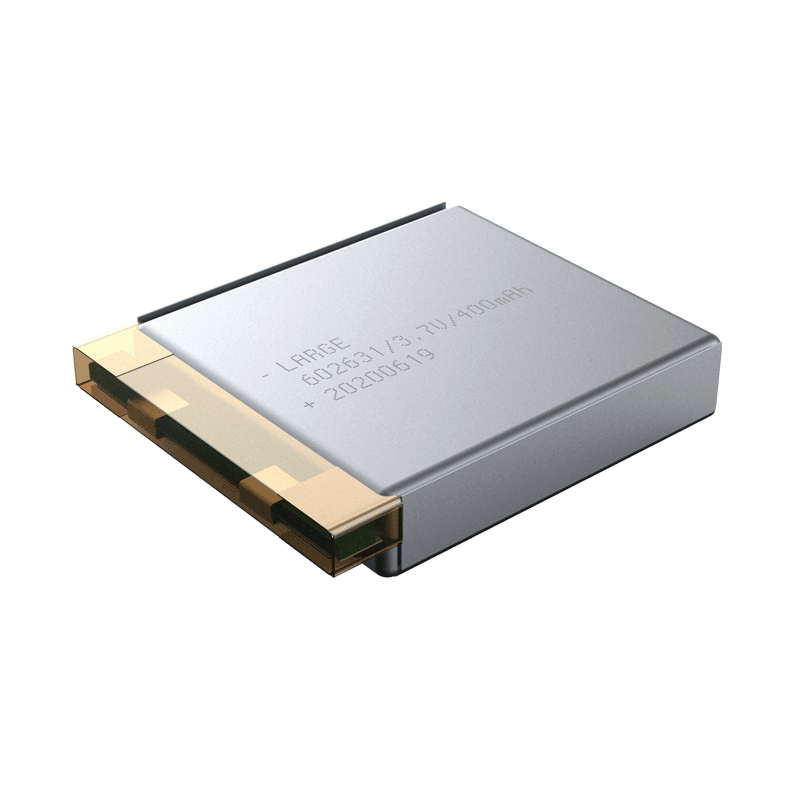

3.7V 400mAh Lithium Polymer Battery for Medical Device

Product Detail

Product number: 34AQ109-01

Cell model:602631/400mAh/3.7V

Battery specification: 602631/400mAh/3.7V

Nominal voltage:3.7V

Nominal capacity:400mAh

Charging voltage: 4.2V

Charging current: ≤400mA

Discharging current: 4000mA

Instant discharging current: 1.0A

End-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 8g

Product dimension: 33*27*6.2mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: high temperature tape

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: household medical device

*
*
*
