Custom Lithium ion Battery Pack

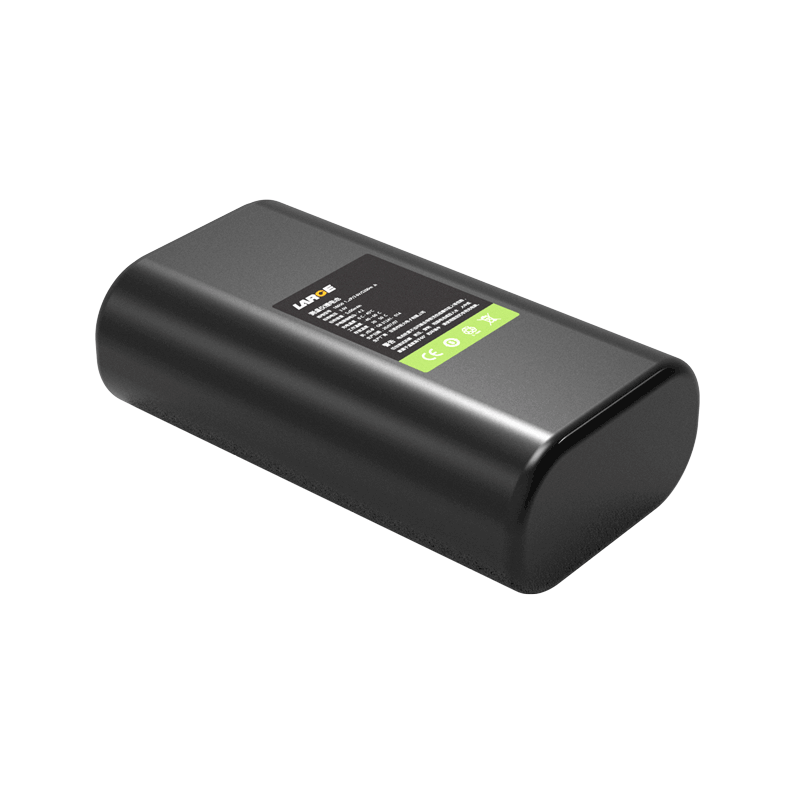

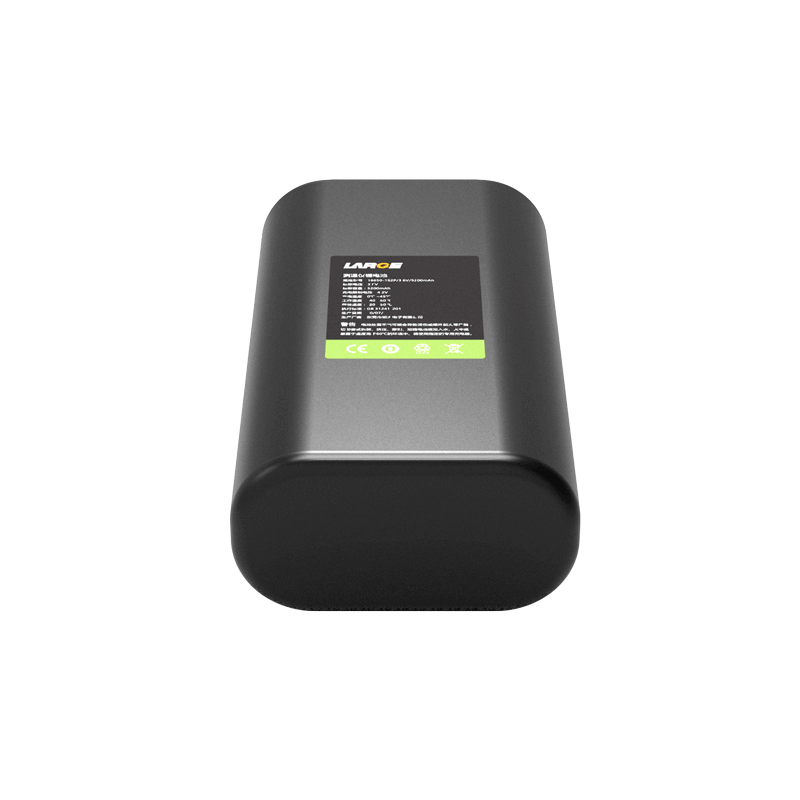

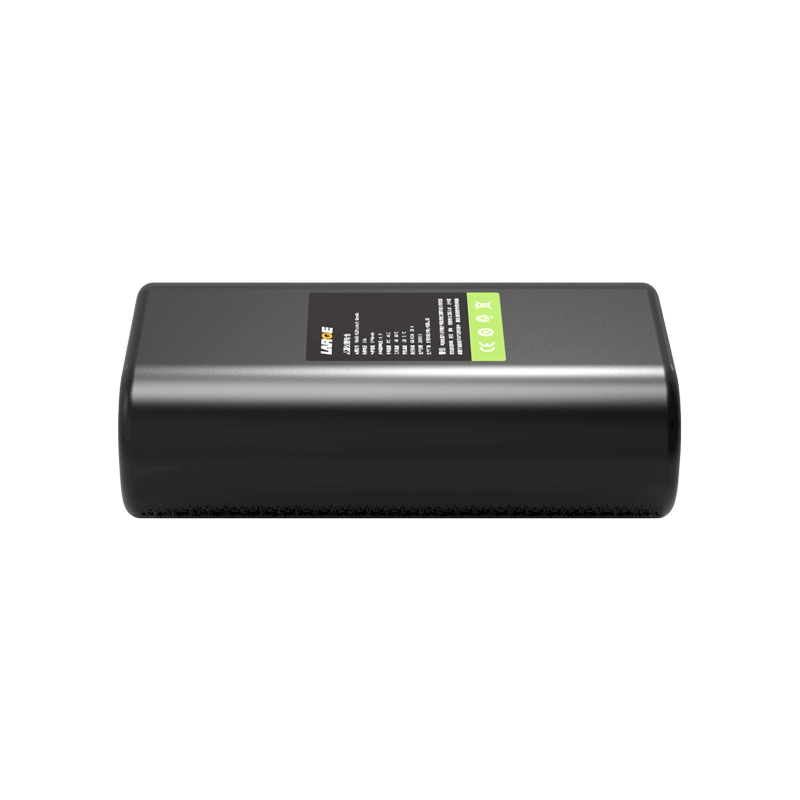

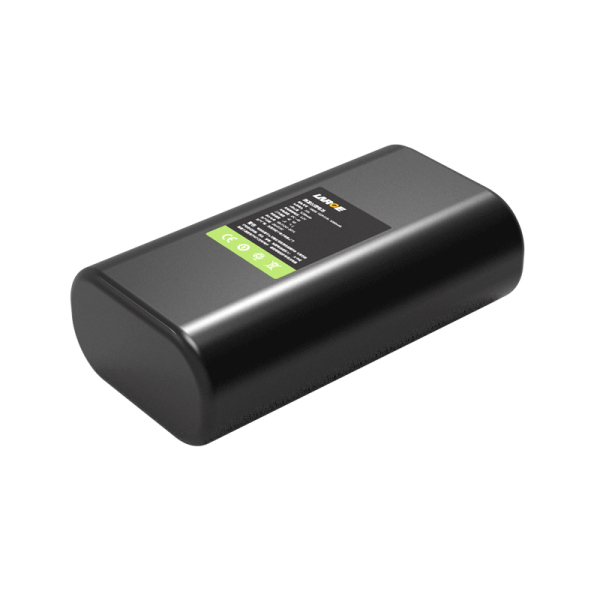

18650 3.6V 5200mA Low Temperature Lithium Battery For Temperature Measurement Instrument

Product Detail

Product number: 08DQ0020-01

Cell model:18650/2600mAh/3.6V

Battery specification: 18650-1S2P/3.6V/5200mAh

Product dimension: 69*37.5*20mm(Max)

Nominal voltage:3.6V

Nominal capacity:5200mAh

Charging voltage: 4.2V

Charging current: ≤2.5A

Discharging current:1A

Instant discharging current: 2.5A

End-off voltage: 2.5V

Internal resistance: ≤250mΩ

Battery weight: 100g

Charging temperature:0~45℃

Discharging temperature: -40~60℃

Battery case: blue PVC heat shrink package

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, ESD protection, etc.

Application field: portable temperature measuring equipment

Product features

1.Blue PVC heat shrinkable film package is simple and reliable, and easy to install.

2.The battery can discharge at a minimum temperature of - 40 ℃.

3.Battery protection management: It adopts imported Seiko protection chip with high stability, high precision monitoring, precise control, so as to eliminate security risks.

4.Data communication management: TI-SMBus software management chip, precise SMBus communication data transmission and accurate temperature control are adopted to eliminate the potential safety hazard to the maximum extent.

5. The battery pack has good security, nice discharge performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
