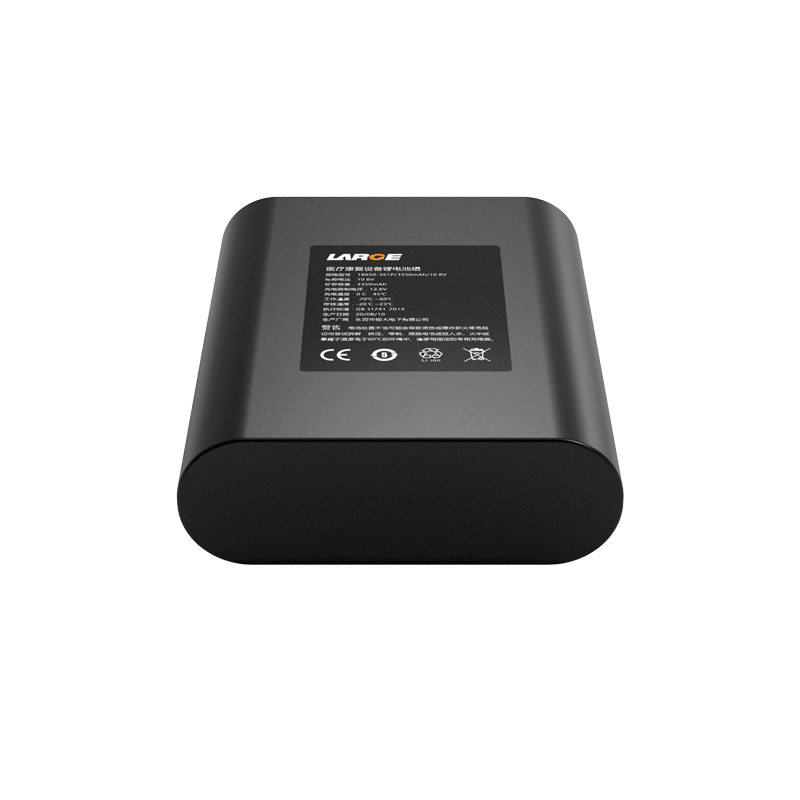

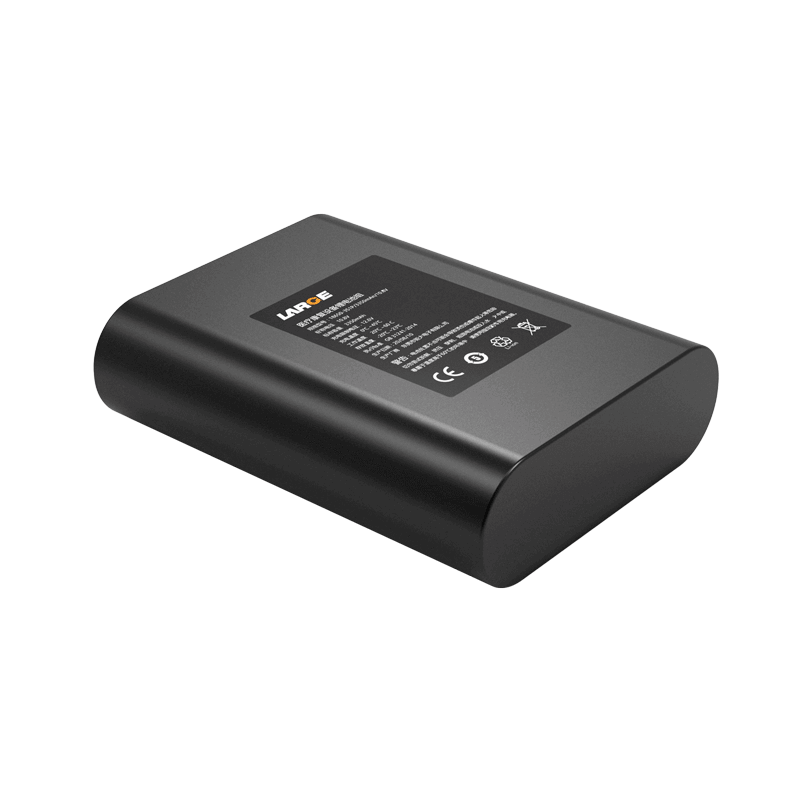

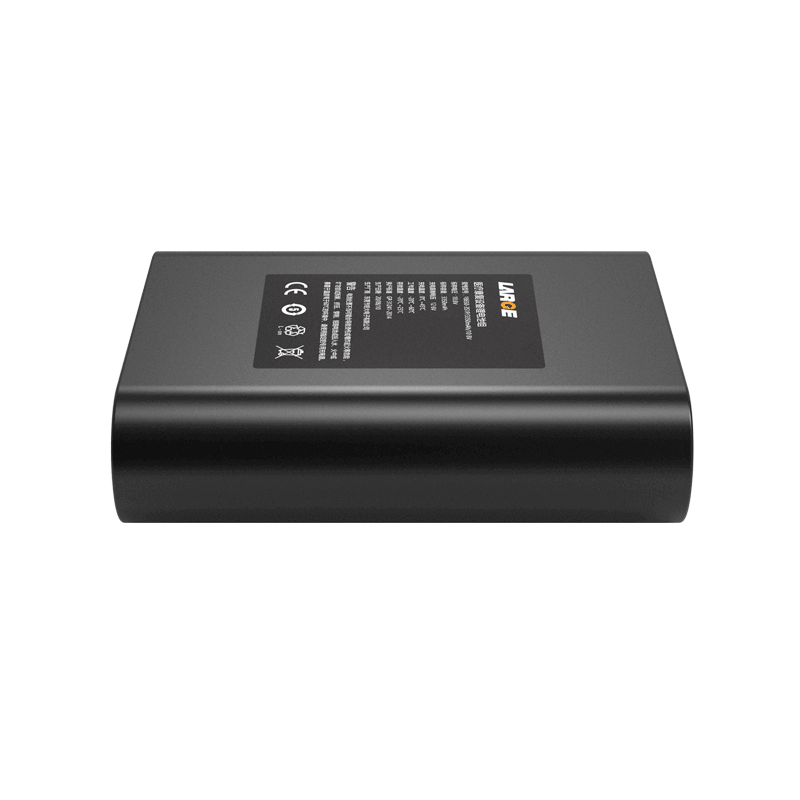

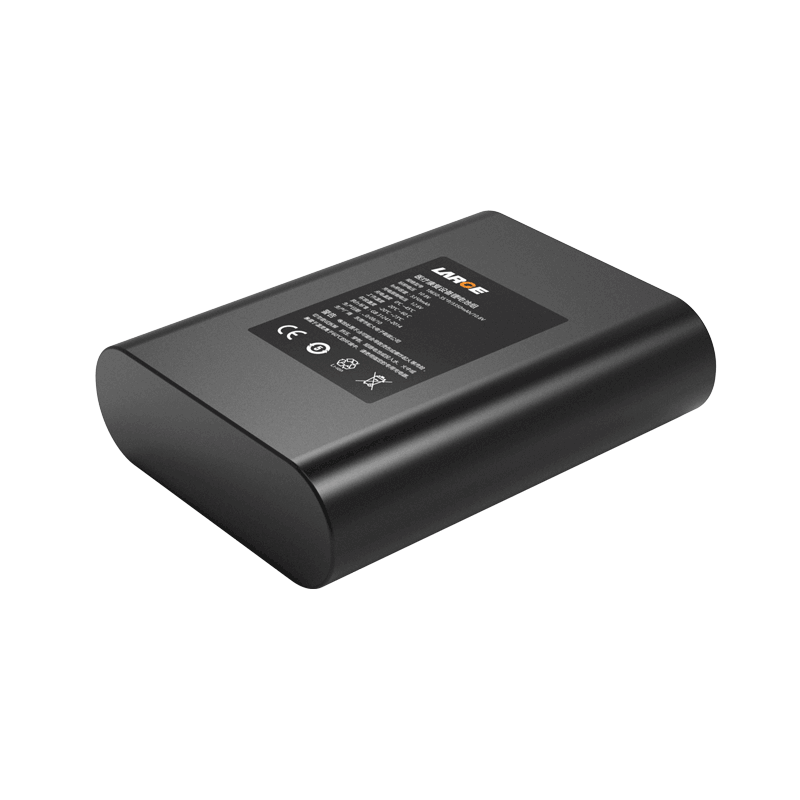

18650 10.8V 3350mAh Samsung Lithium Battery Pack For Medical Rehabilitation Equipment

Product Detail

Product number: 01DQ0126-01
Cell model:18650-3350mAh-3.6V
Battery specification: 18650-3S1P-3350mAh-10.8V
Product dimension: 72*57*20mm(Max)
Nominal voltage:10.8V
Nominal capacity:3350mAh
Charging voltage: 12.6V
Charging current: ≤1.6A
Discharging current: ≤3A
End-off voltage: 8.1V
Internal resistance: ≤180mΩ
Battery weight: 160g
Charging temperature:0~45℃
Discharging temperature: -20~60℃
Storage temperature: -20~35℃
Battery case: blue PVC heat shrinkable film
Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, ESD protection, etc.
Application field: Medical rehabilitation equipment, portable medical devices.


Product features
1.Blue PVC heat shrinkable film package is simple and reliable, and it is easy to install.
2.Outlet of connector plug: JST plug output mode is adopted to increase the conductive reliability.
3.Imported Seiko protection chip: The battery has the characteristics of high stability, high precision monitoring and precise control. The battery is equipped with ESD protection, which can eliminate the potential safety hazard to the maximum extent.
4.The battery pack has good security, nice discharge performance and long cycle life.
5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
