Custom Lithium ion Battery Pack

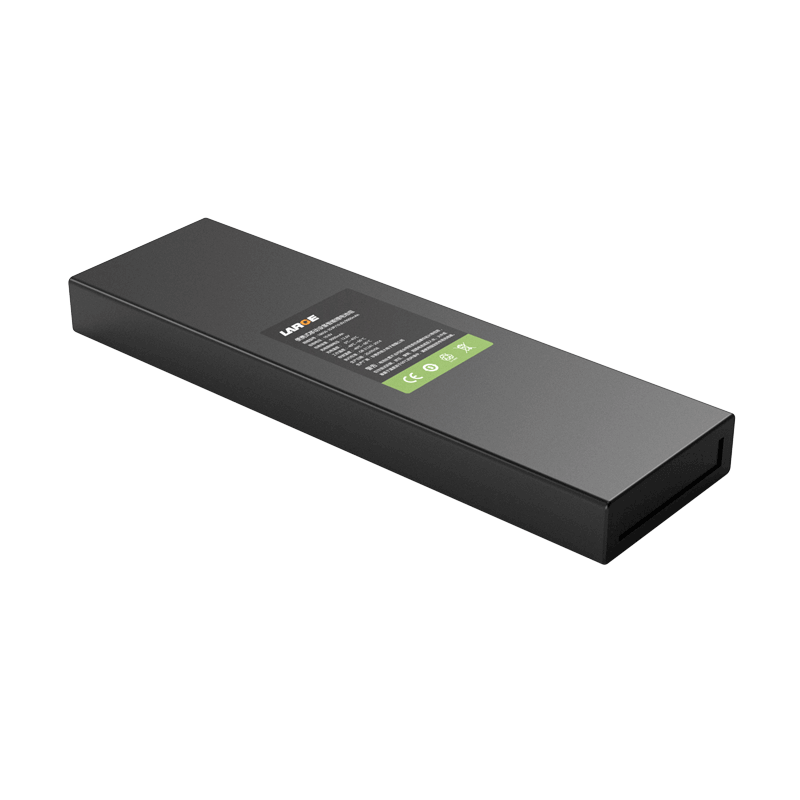

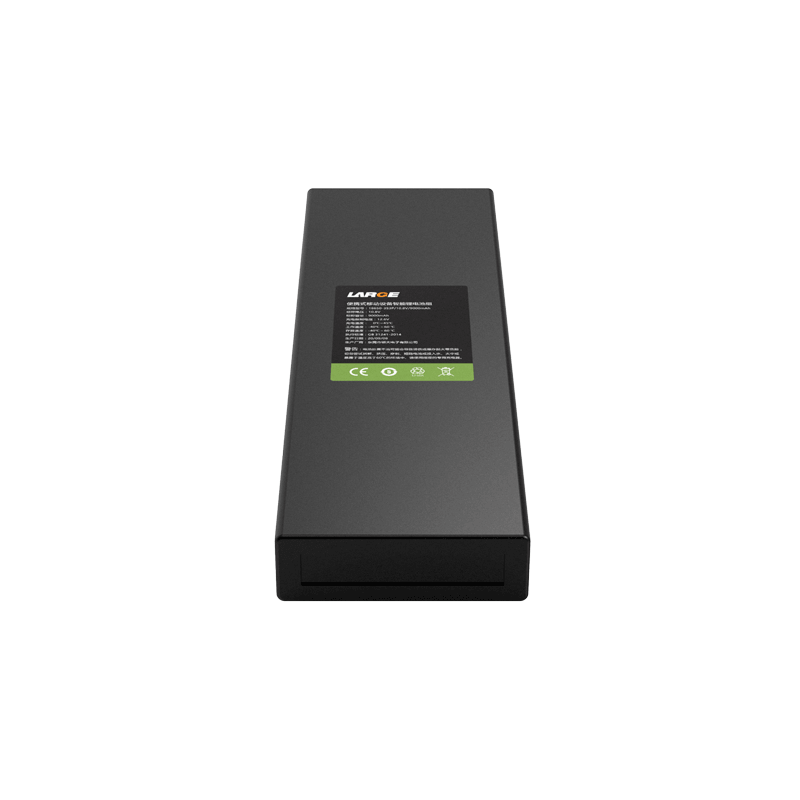

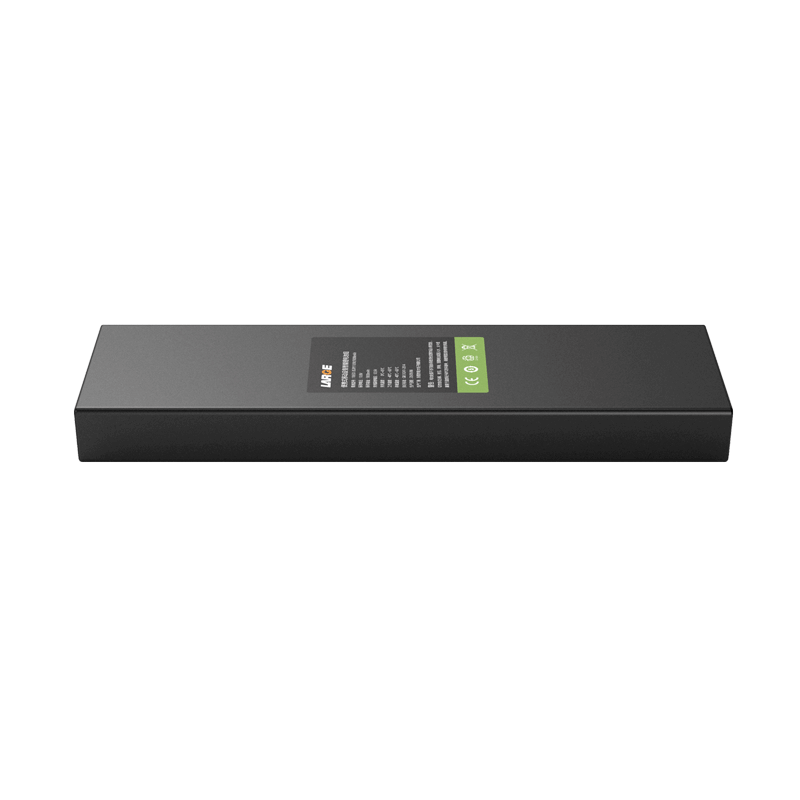

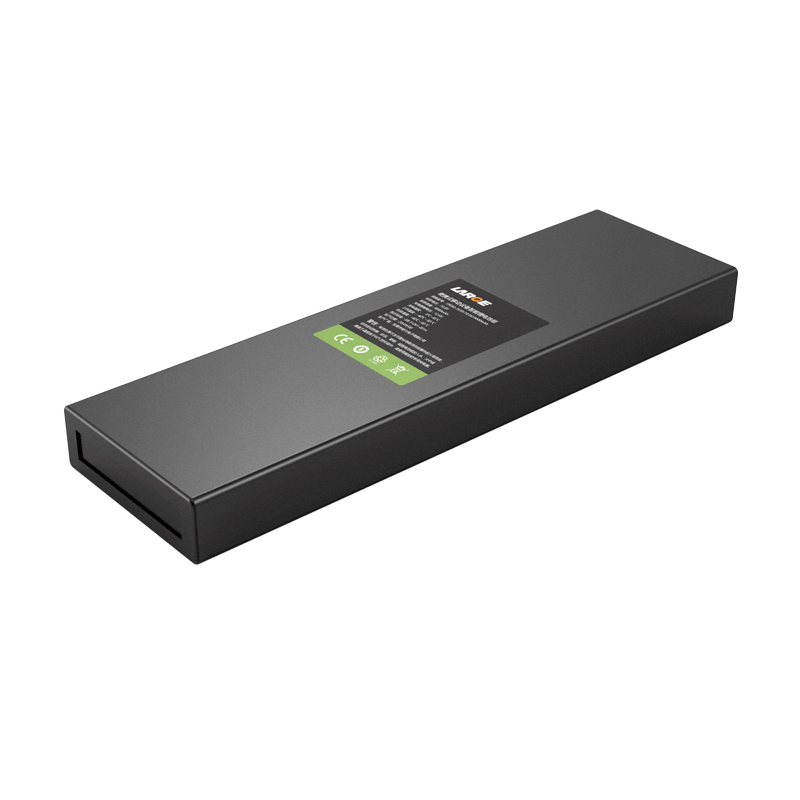

18650 10.8V 9000mAh Samsung Battery Ternary Battery for Portable Mobile Devices with SMBUS Communication Protocol

Product Detail

Product number: 33DZ015-01
Cell model:18650/3.6V/3000mAh
Battery specification: 18650-3S3P/10.8V/9000mAh
Nominal voltage:10.8V
Nominal capacity:9000mAh
Charging voltage: 12.6V
Charging current: ≤4.5A
Discharging current: 4.5A
Instant discharging current: 8A
End-off voltage: 7.5V
Internal resistance: ≤200mΩ
Battery weight: 450g
Product dimension: 20*62.5*201 mm
Charging temperature:0~45℃
Discharging temperature: -40~60 ℃
Storage temperature: -40~60 ℃
Battery case: PVC
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and SMBUS communication protocol.
Application field: portable mobile device
