Custom Lithium ion Battery Pack

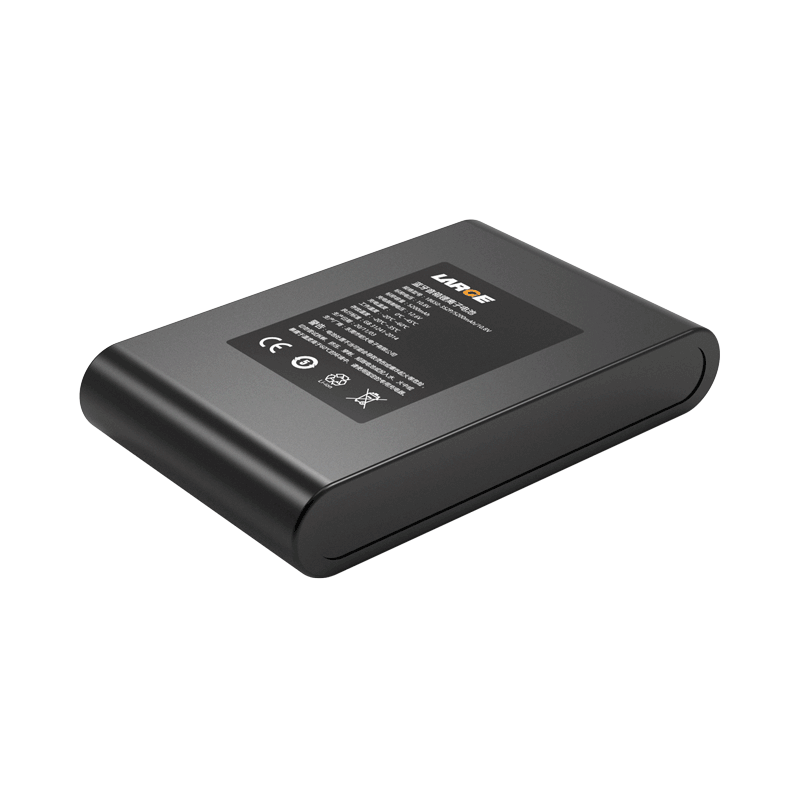

18650 10.8V 5200mAh Ternary Battery for Bluetooth Speaker

Product Detail

Product number: 08DQ0001-01

Cell model:18650-2600mAh-3.6V

Battery specification: 18650-3S2P/5200mAh/10.8V

Product dimension: 113×72×20mm(Max)

Nominal voltage:10.8V

Nominal capacity:60Ah

Charging voltage: 12.6V

Charging current: ≤2.6A

Discharging current: 2.6A

Instant discharging current: 10A

End-off voltage: 8.4V

Internal resistance: ≤180mΩ

Battery weight: 310g

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: blue PVC heat shrinkable film

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, over current protection and ESD protection, etc.

Application field: bluetooth speaker, handheld device, portable instrument



Product features

1. Blur PVC heat shrinkable film is reliable and easy to install.

2. Connector plug outlet: Adopt JST plug output mode to increase conductive reliability.

3. Data communication management: Adopt TI-SMBus software management chip, SMBus communication data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4.Battery management: It has high stability, high precision monitoring, precise control, ESD protection, temperature protection and other functions so as to eliminate safety hazard to the greatest extent.

5. The battery pack has good security , nice discharge performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
