Custom Lithium ion Battery Pack

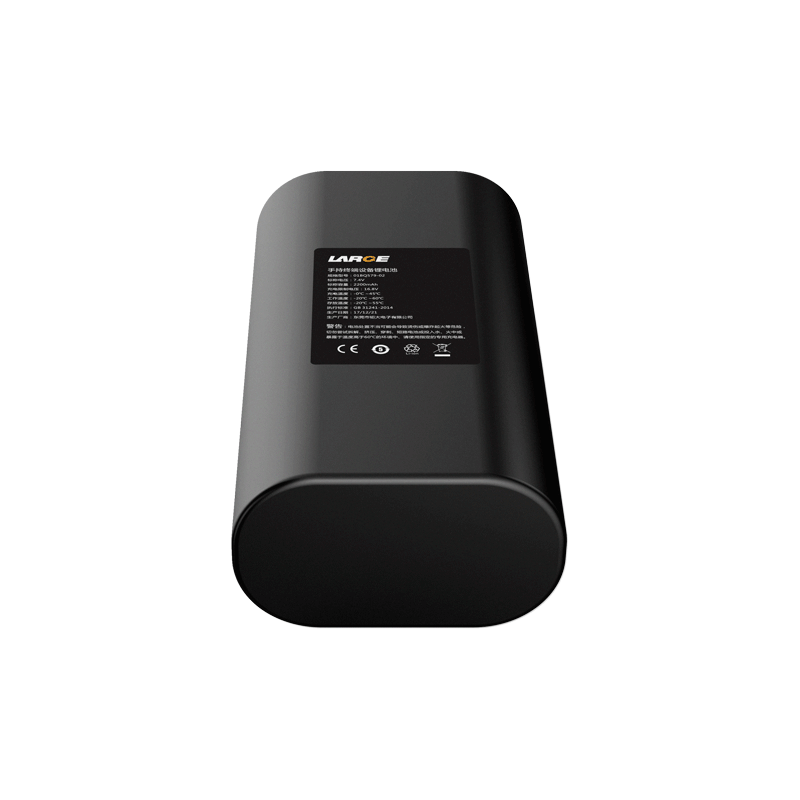

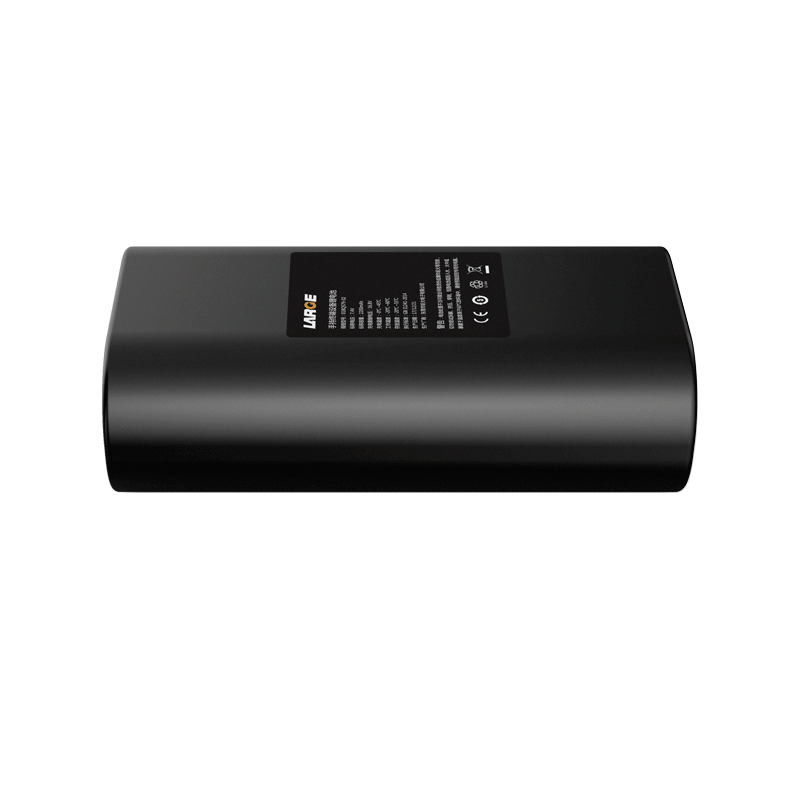

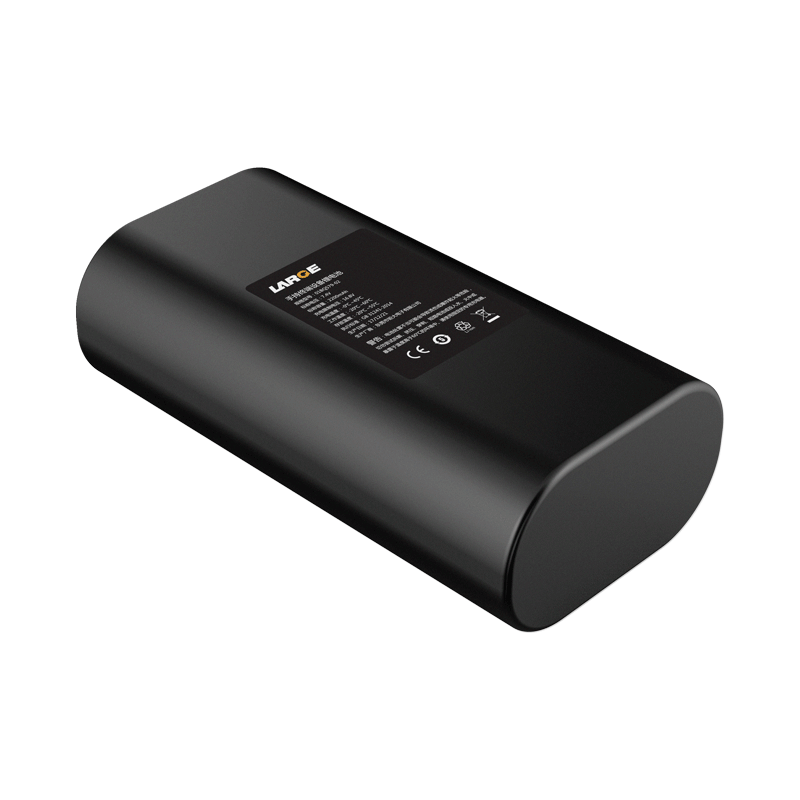

18650 7.4V 2200mAh Ternary Battery Bak Battery for Handheld Terminal

Product Detail

Product number: 01BQ579-02

Combination mode: ICR18650-2S1P

Nominal voltage: 7.4V

Nominal capacity: 2200mAh

Standard continuous discharge current: 0.2C

Maximum continuous discharge current: 1C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 22*37.5*71mm

Finished product internal resistance: 250 mΩ or less

Lead model: JST ELP-02V-2P reverse socket and plug UL1007/18#, line length 95mm

*
*
*
