Custom Lithium ion Battery Pack

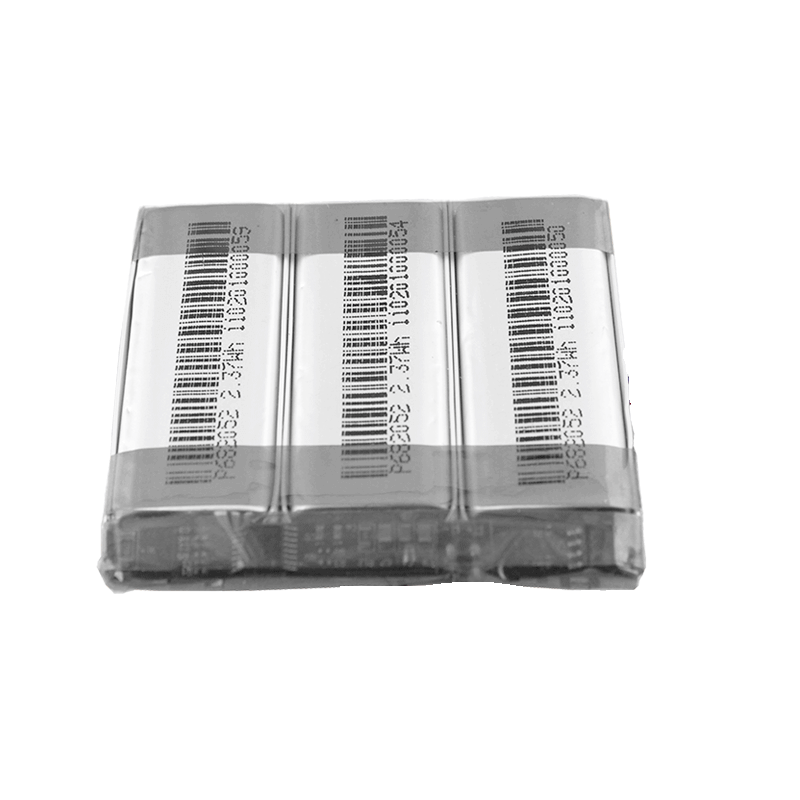

11.1V 640mAh 682052 Lithium Polymer Battery for Ultrasonic Flowmeter

Product Detail

Product number: 02BQ199-07

Combination mode: 682052P-3S1P

Nominal voltage: 11.1V

Nominal capacity: 640mAh

Standard continuous discharge current: 0.2C

Maximum continuous discharge current: 1C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 7.1*55.0*63.0mm

Finished product internal resistance: 320 mΩ or less

Lead model: JST-XH-2P reverse UL1571/24#, red and black, line length =65mm


*
*
*
