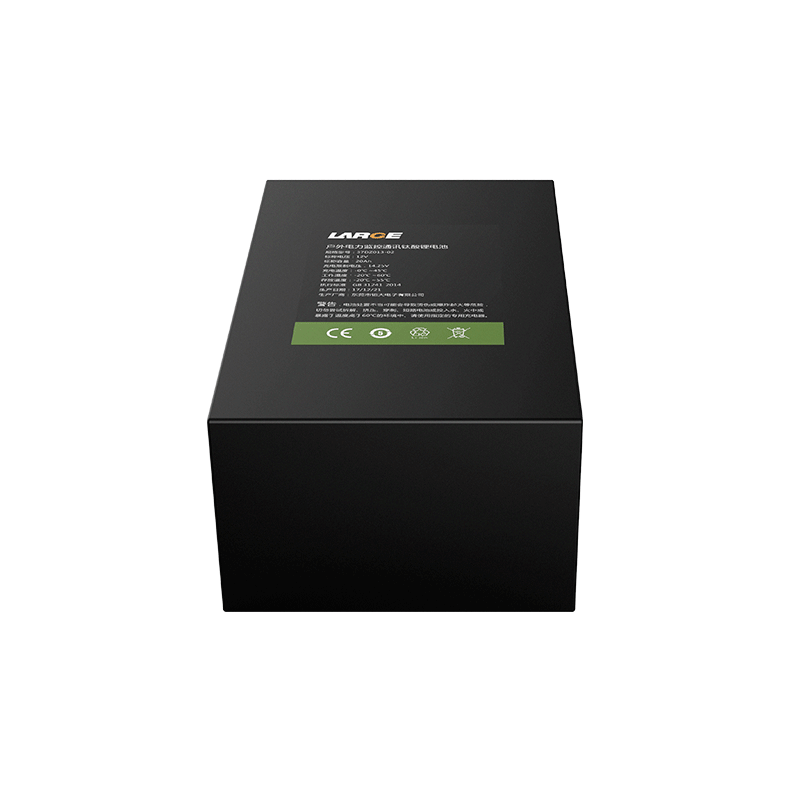

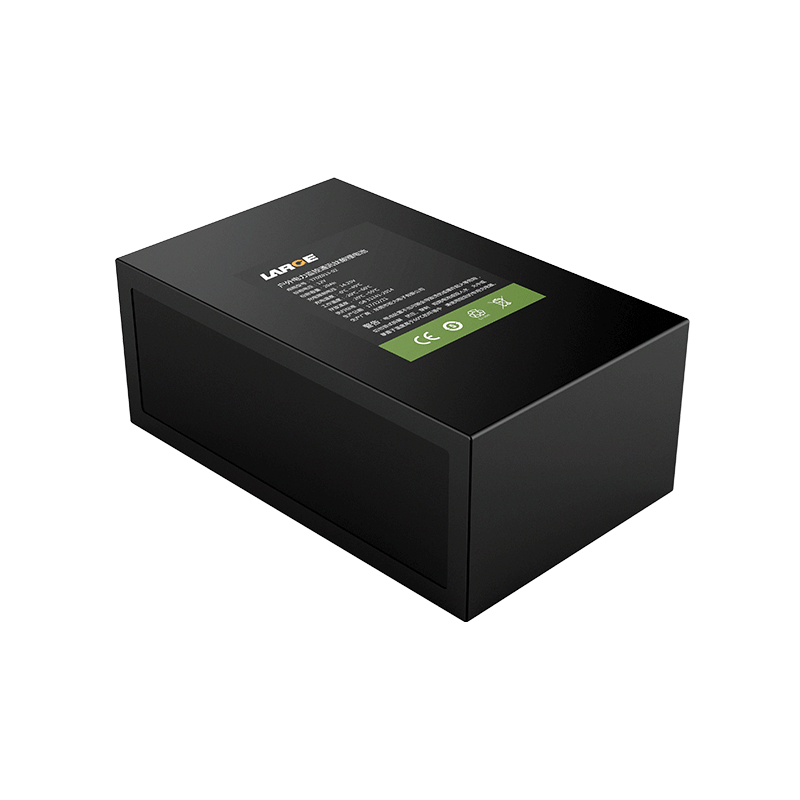

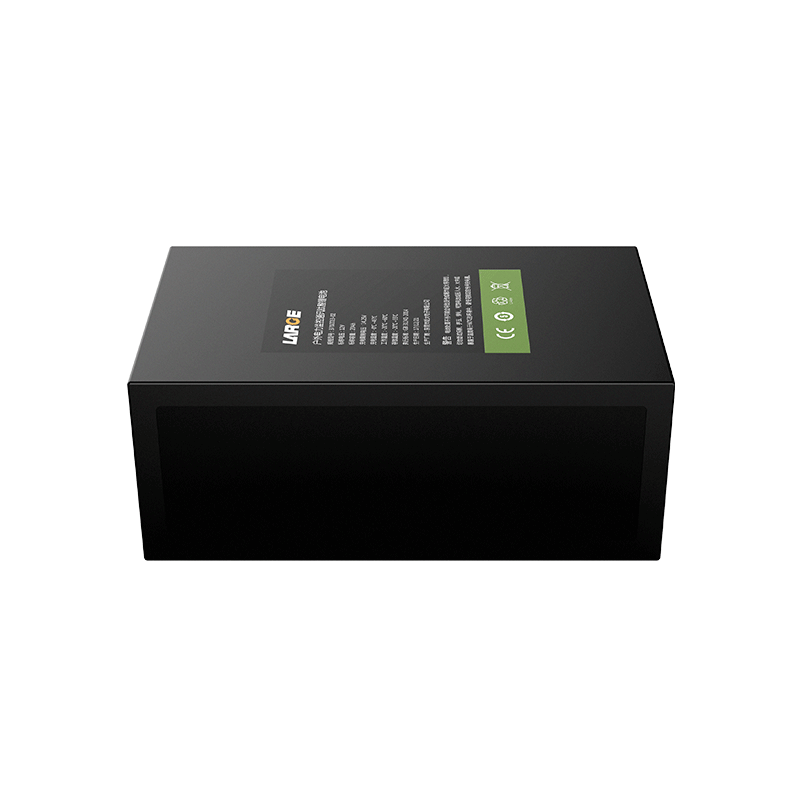

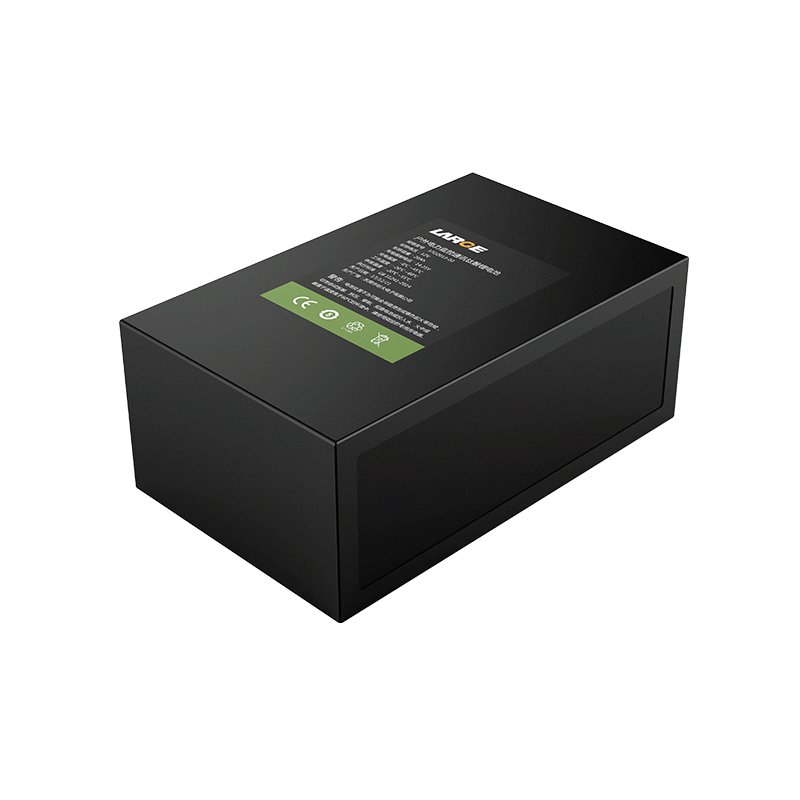

Custom Lithium ion Battery Pack

12V 20Ah lithium titanate battery for outdooe power of communication and monitor

  • Model number:37DZ013-02

  • Nominal voltage:12.0V

  • Nominal capacity:20000mAh

  • Battery cell:40120/2.4V/10Ah

  • Dimension:85X130X220mm(Max)

  • Application:battery of outdoor power and communication monitor

Product Detail

Product number: 37DZ013-02

Cell model:40120/2.4V/10Ah

Battery specification: 5S2P/12V/20Ah

Nominal voltage:12V

Nominal capacity:20Ah

Charging voltage: 14.25V

Charging current: ≤4A

Discharging current: 5A

Instant discharging current: 15A

End-off voltage: 7.5V

Internal resistance: ≤150mΩ

Battery weight: 2.8kg

Product dimension: 85X130X220mm (Max)

Charging temperature:-20~45℃

Discharging temperature: -20~70℃

Storage temperature: -20~45℃

Battery housing: PVC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection, etc.

Application field: battery of outdoor power and communication monitor



Product features

1. The battery can charge at -20℃.

2. The battery has wide range discharging between -20℃ to 70℃.

3. The battery pack has good safety performance and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
