Custom Lithium ion Battery Pack

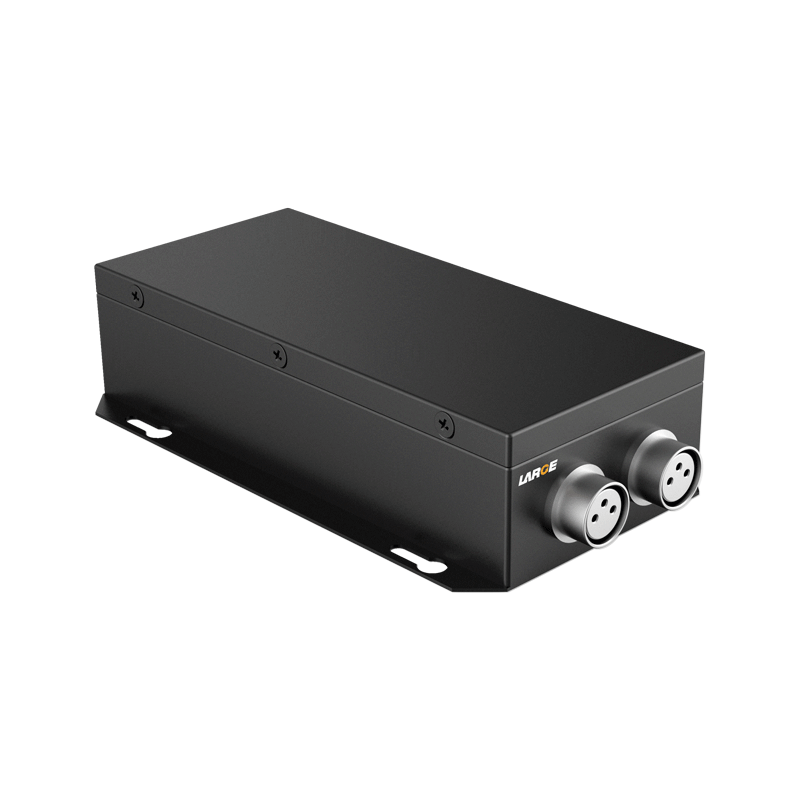

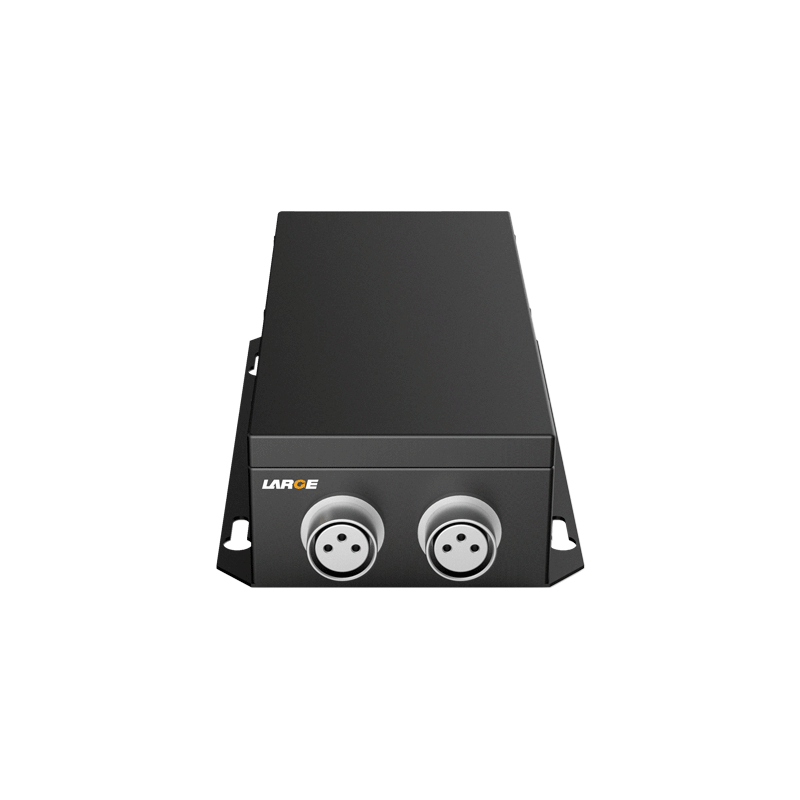

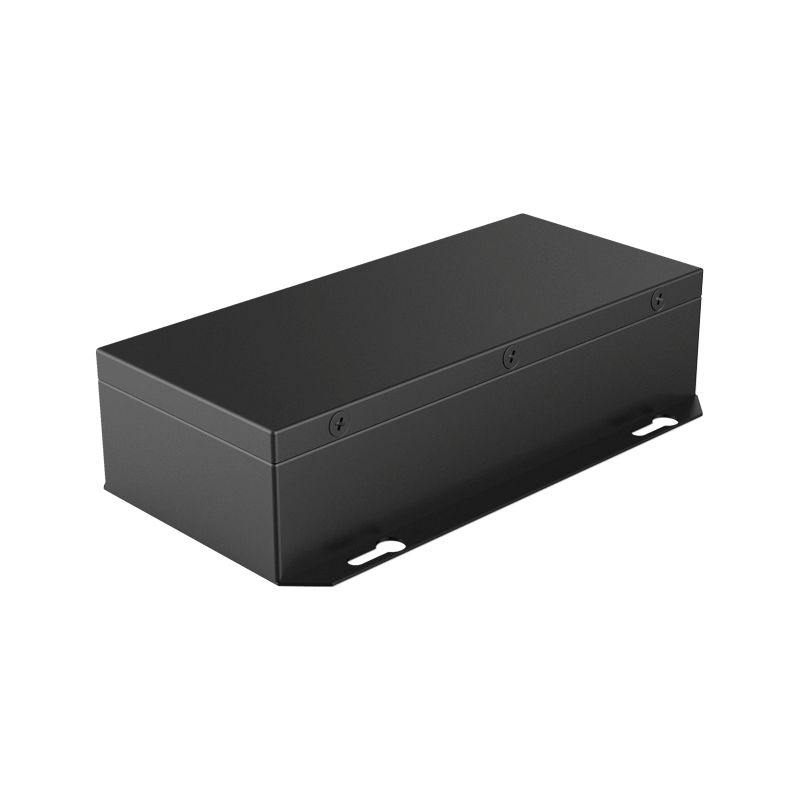

12V 13Ah 18650 Lithium Ion Battery Panasonic Battery for Special Equipment

  • Model number:03EQ112-01

  • Nominal voltage:10.8V

  • Nominal capacity:13400mAh

  • Battery cell:18650/3.6V/3350mAh

  • Dimension:175*78*45mm

  • Application:emergency power supply at field, instrument detection, special equipment tester

Product Detail

Product number: 03EQ112-01

Cell model:18650/3.6V/3350mAh

Battery specification: 18650-3S4P/12V/13Ah

Nominal voltage:10.8V

Nominal capacity:13.4Ah

Charging voltage: 12.6V

Charging current: ≤3A

Discharging current: 5A

Instant discharging current: 10A

End-off voltage: 9V

Internal resistance: ≤120mΩ

Battery weight: 1000g include housing

Product dimension: 175*78*45mm (do not include the installation site)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~50 ℃

Temperature protection: 60℃±5℃

Battery case: metal housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and temperature protection.

Application field: emergency power supply at field, instrument detection, special equipment tester



Product features

1. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

2. The battery pack is a portable outdoor equipment with good security, nice low temperature performance and long cycle life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
