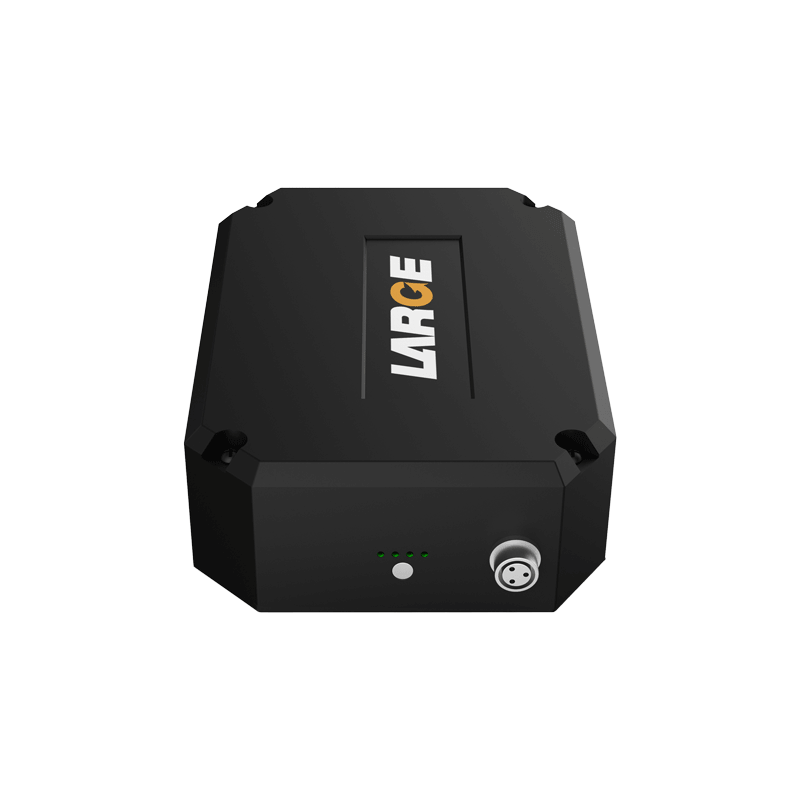

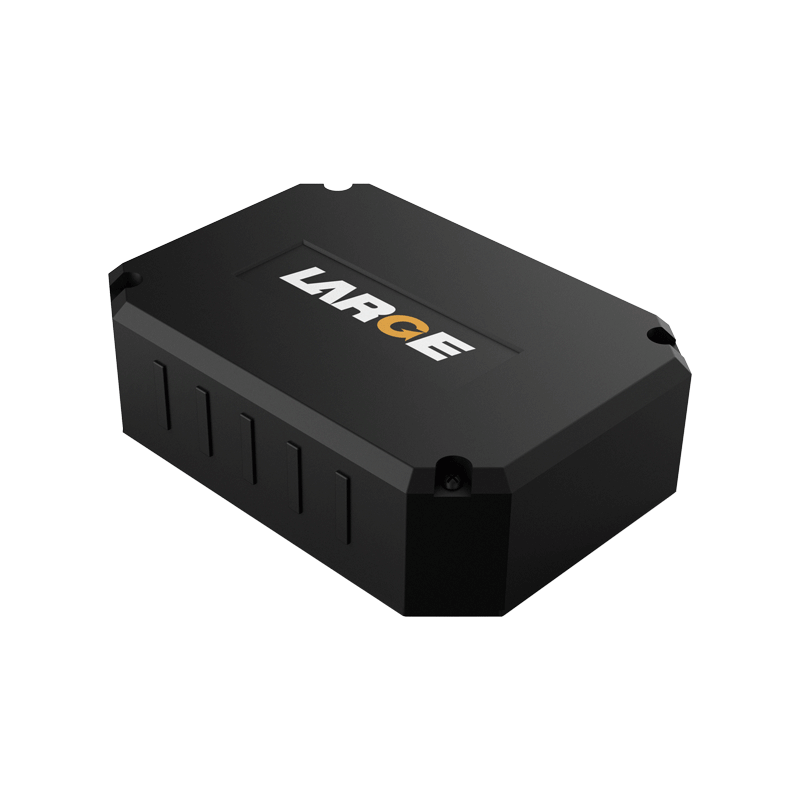

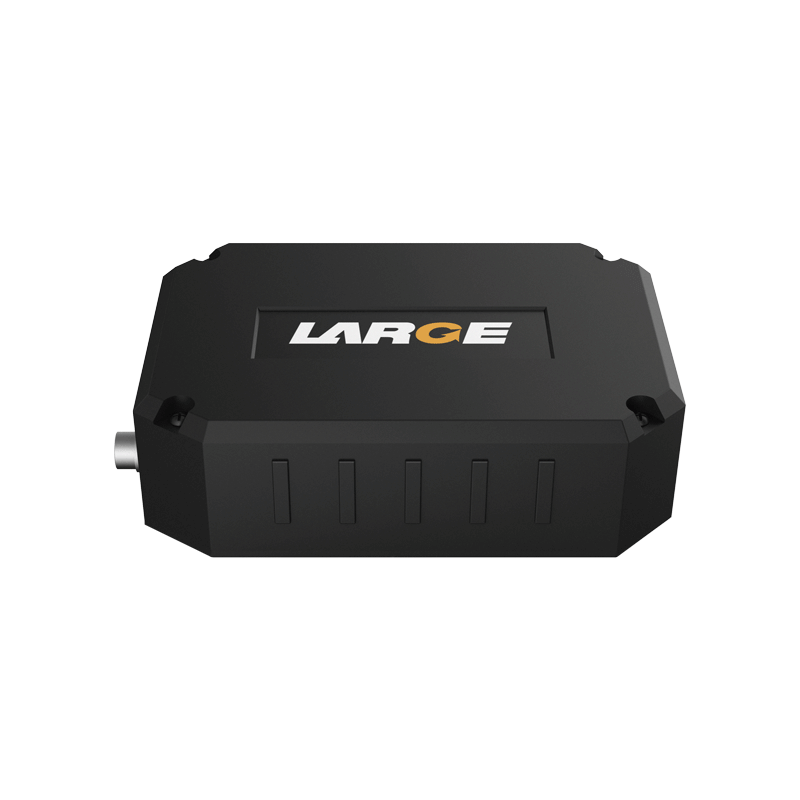

18650 25.2V 5.2Ah Energy Storage Battery Lishen Battery for Testing Equipment

Product number: 32AQ041-01

Cell model：18650/3.6V/2600mAh

Battery specification: 18650-7S2P/25.2V/5200mAh

Nominal voltage：25.2V

Nominal capacity：5.2Ah

Charging voltage: 29.4V

Charging current: ≤2A

Discharging current: 4A

Instant discharging current: 10A

End-off voltage: 16.8V

Internal resistance: ≤300mΩ

Battery weight: 0.8Kg

Product dimension: 170*125*50mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35 ℃

Battery case: engineering plastic

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application: testing equipment, instrument detection

Product features

1. Aviation output terminal: adopt special output mode so as to increase the conductivity and reliability.

2. LED capacity display: display the charging status during charging process so as to improve the recognition effect of capacity.

3. Battery protection management: adopt IC chip so as to try our best to eliminate the security risks.

4. The battery pack has good security, nice low temperature performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
