25.6V 20Ah LiFePO4 Battery for Oil Field Testing Equipment

Product number: 30AQ129-01

Cell model：TB2770145/3.2V/20Ah

Battery specification: TB2770145-8S1P/25.6V/20Ah

Nominal voltage：25.6V

Nominal capacity：20Ah

Charging voltage: 29.2V

Charging current: 5A

Stable output: 24V

Discharging current: 3A

Instant discharging current: 5A 5s

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 8.5kg

Product dimension: 240*220*90mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～55℃

Storage temperature: -20～40℃

Temperature protection: 60℃±5℃

Communication protocol: SMBUS

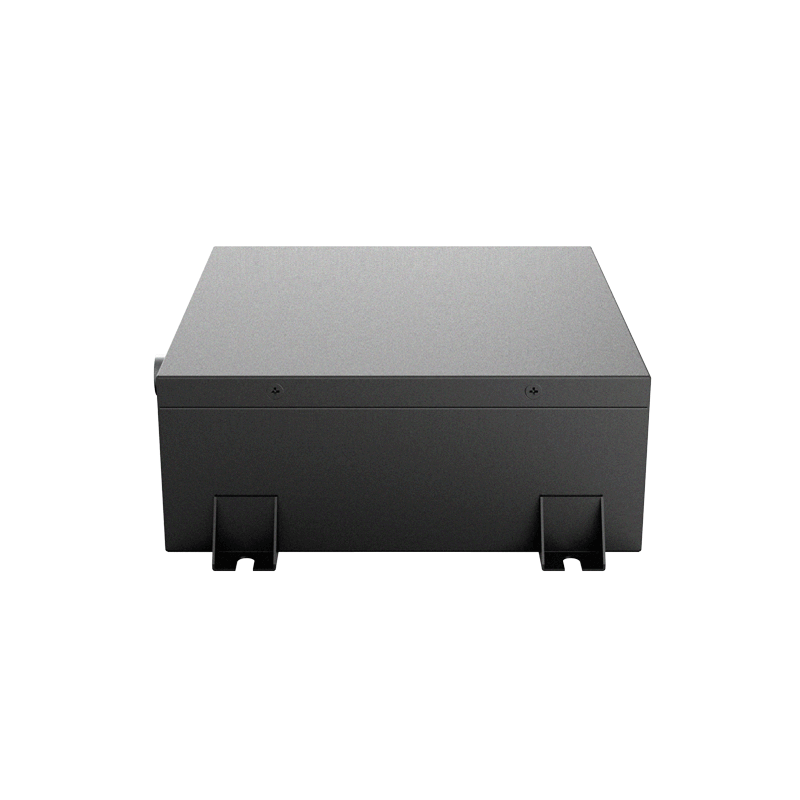

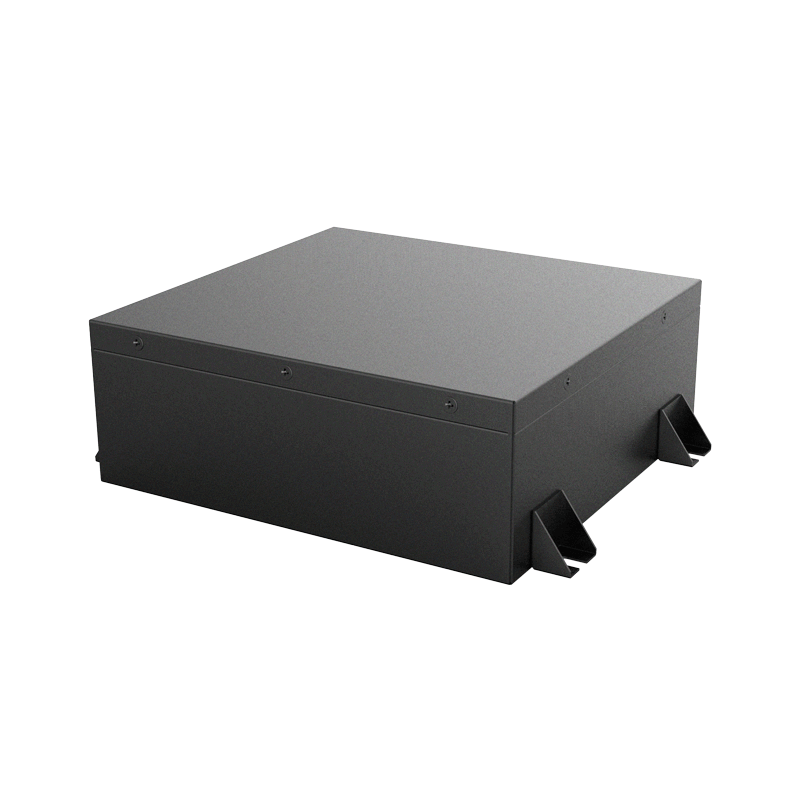

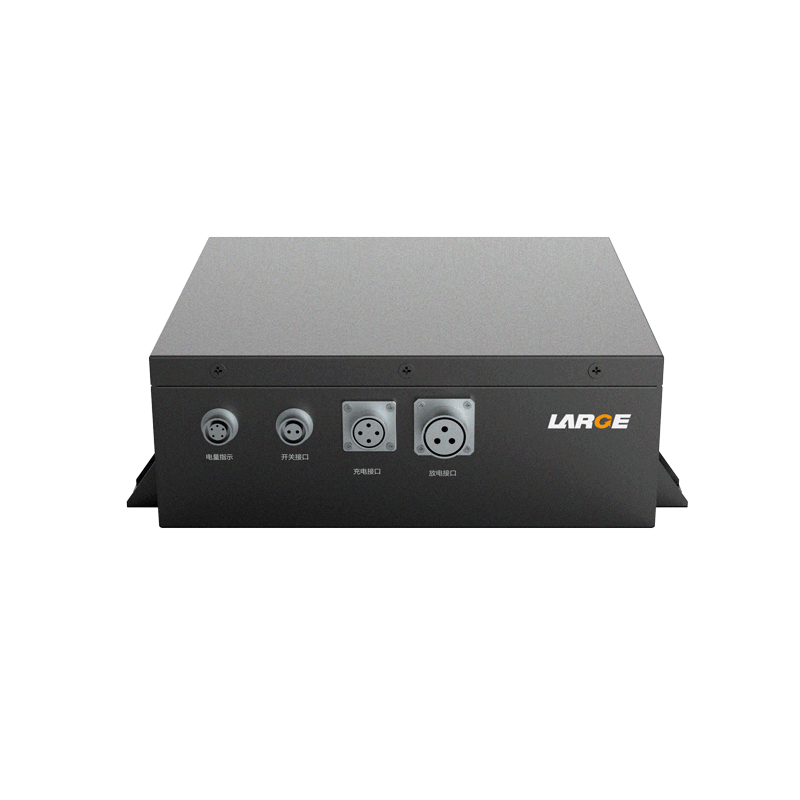

Battery case: metal plate housing, mock black

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, power display, low power alarm, etc.

Application field: special device, oil field explosive-proof detection equipment, industrial detection equipment

Parameter function: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, power display, low power alarm, etc.

Data communication management: adopt IC+TI charger management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

The battery pack has good security, national military standard, stable performance and long cycle life.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
