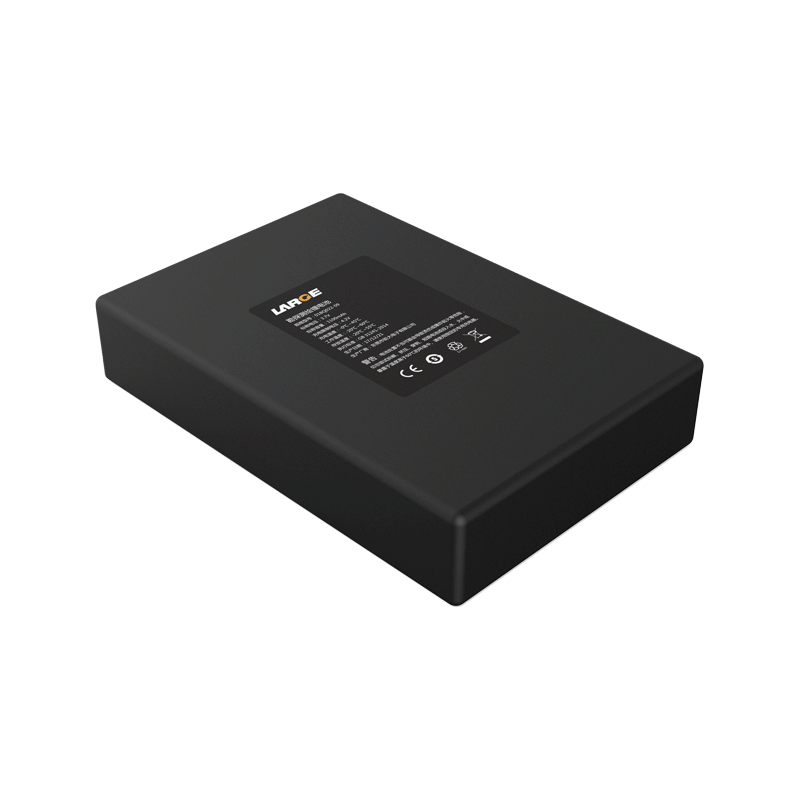

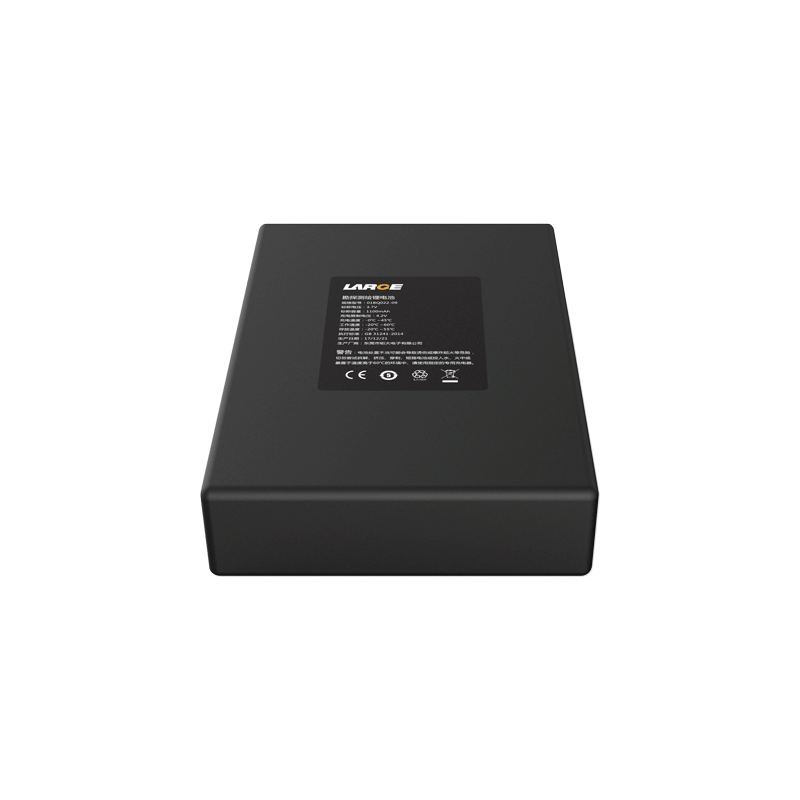

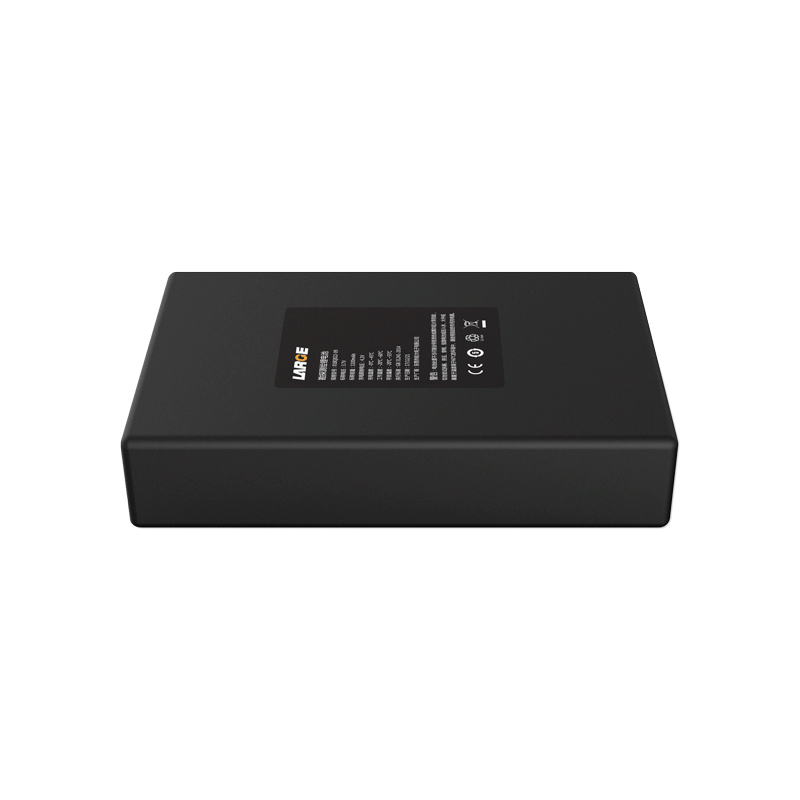

3.7V 1100mAh Lithium Ion Battery for Test and Control Instrument

Product number: 01B022-09

Cell model：553450/3.7V/1100mAh

Battery specification: 553450-1S1P/3.7V/1100mAh

Nominal voltage：3.7V

Nominal capacity：1100mAh

Charging voltage: 4.2V

Charging current: ≤550mA

Discharging current: 550mA

Instant discharging current: 1.0A

End-off voltage: 3.0V

Internal resistance: ≤200mΩ

Battery weight: 30g

Product dimension: 55*35*6.5mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: wireless audio, test and control instrument
