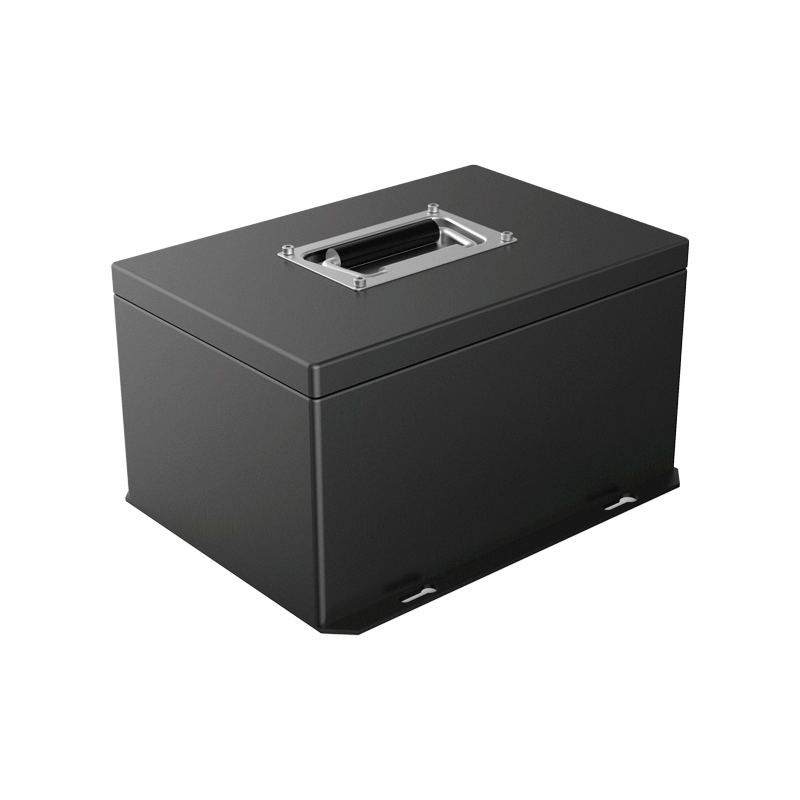

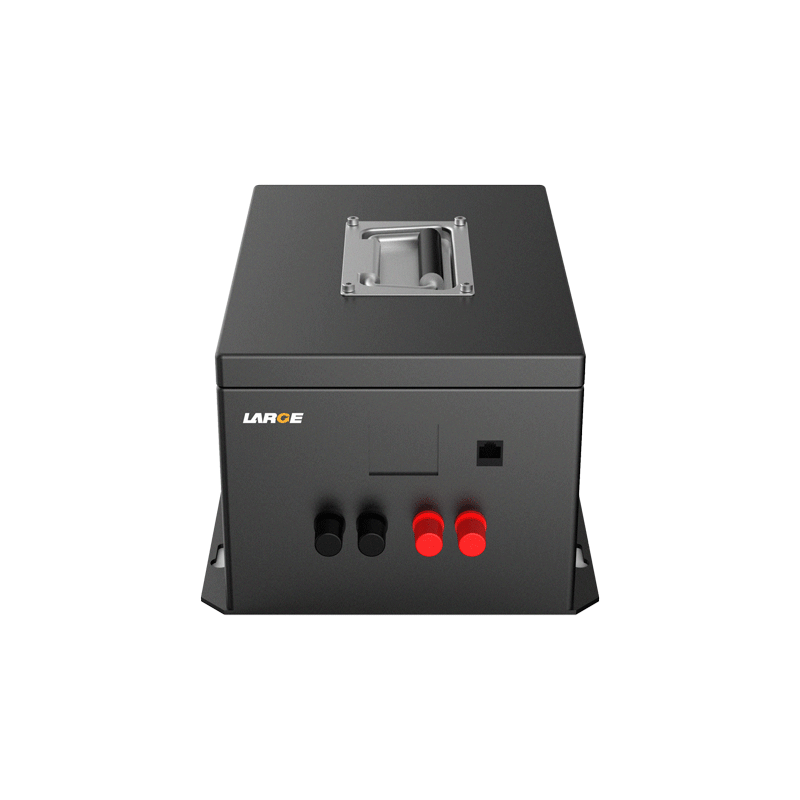

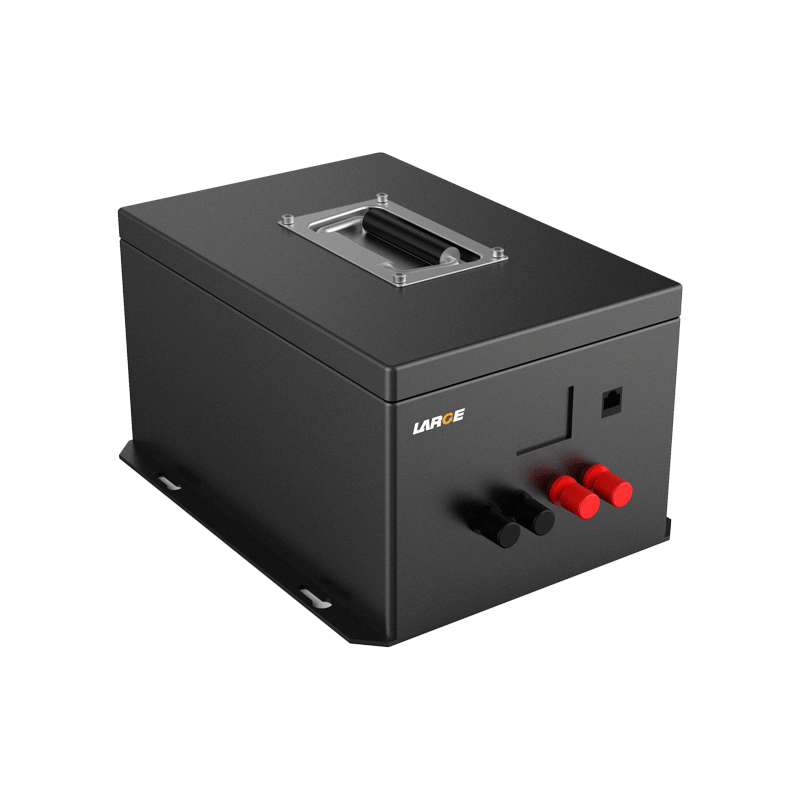

48V 20Ah Lithium Ion Battery for AGV

48V 20Ah Lithium Ion Battery for AGV
48V 20Ah Lithium Ion Battery for AGV
48V 20Ah Lithium Ion Battery for AGV
48V 20Ah Lithium Ion Battery for AGV

Product Detail

Cell model:26650/3.2V/3.3Ah

Battery specification: 26650-15S6P/48V/20Ah

Nominal voltage:48V

Nominal capacity:20Ah

Charging voltage: 54V

Charging current: ≤10A

Discharging current: 20A

Instant discharging current: 50A

End-off voltage: 37.5V

Internal resistance: ≤200mΩ

Battery weight: 15kg

Product dimension: 300*237*165mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~60℃

Temperature protection: 65℃±5℃

Battery case: cold rolling + powder spraying shell

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, 485 communication, etc.

Application field: industrial machine, AGV


Product features

1. Communication function: LCD screen is used to display voltage and capacity.

2. Binding post terminal output: terminal output interface adopts binding post to increase conductive reliability.

3. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks..

4. The battery pack is safe with special handle. It has good low temperature performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
