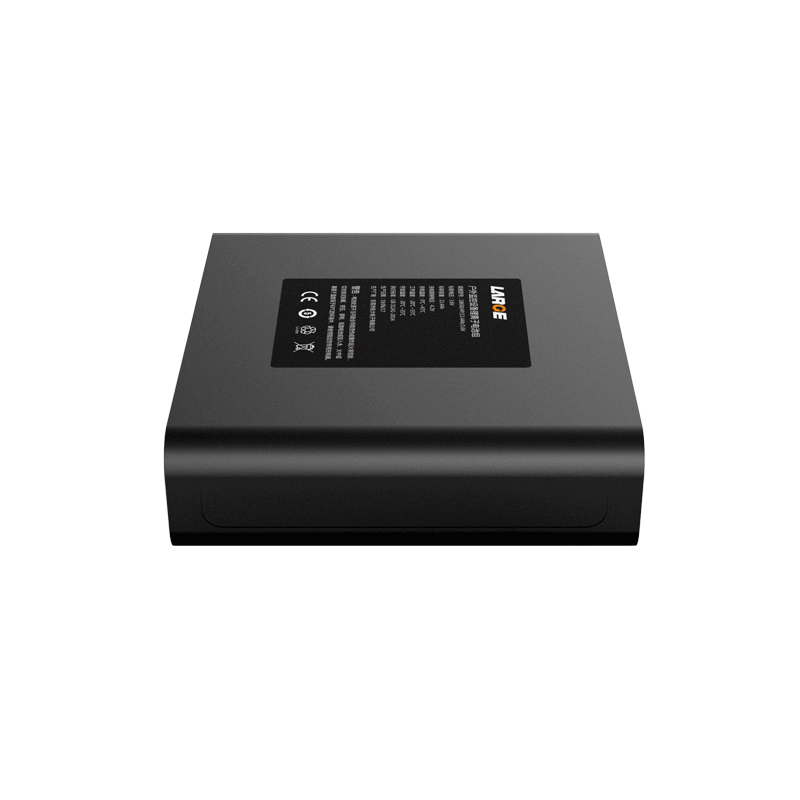

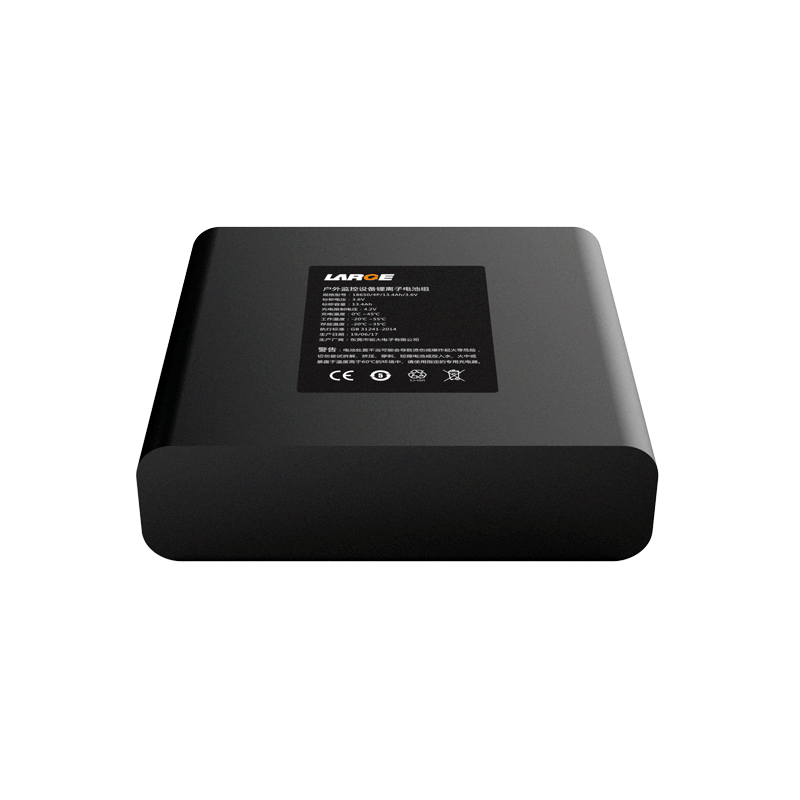

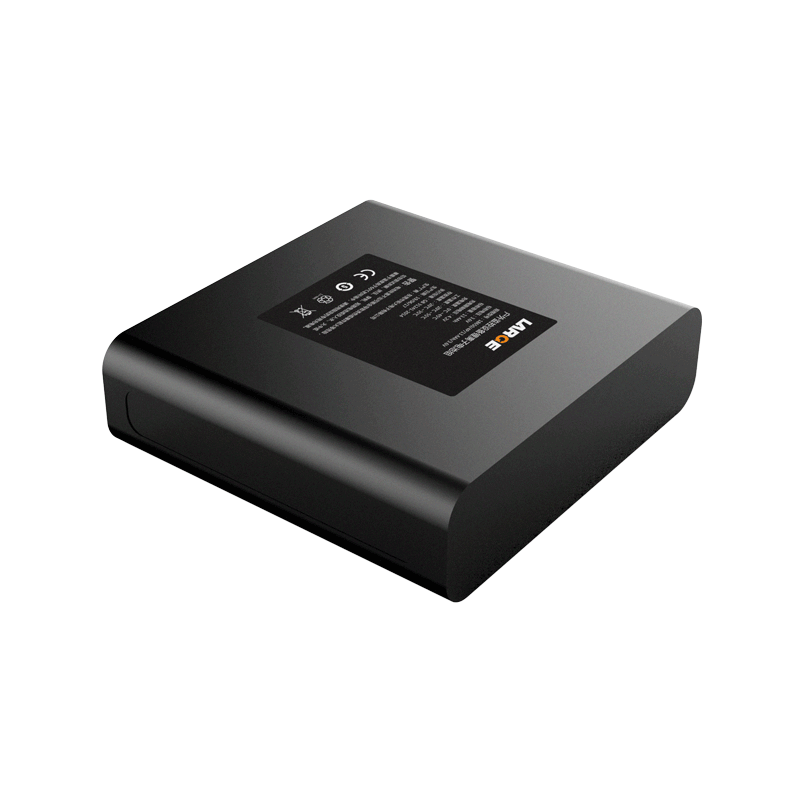

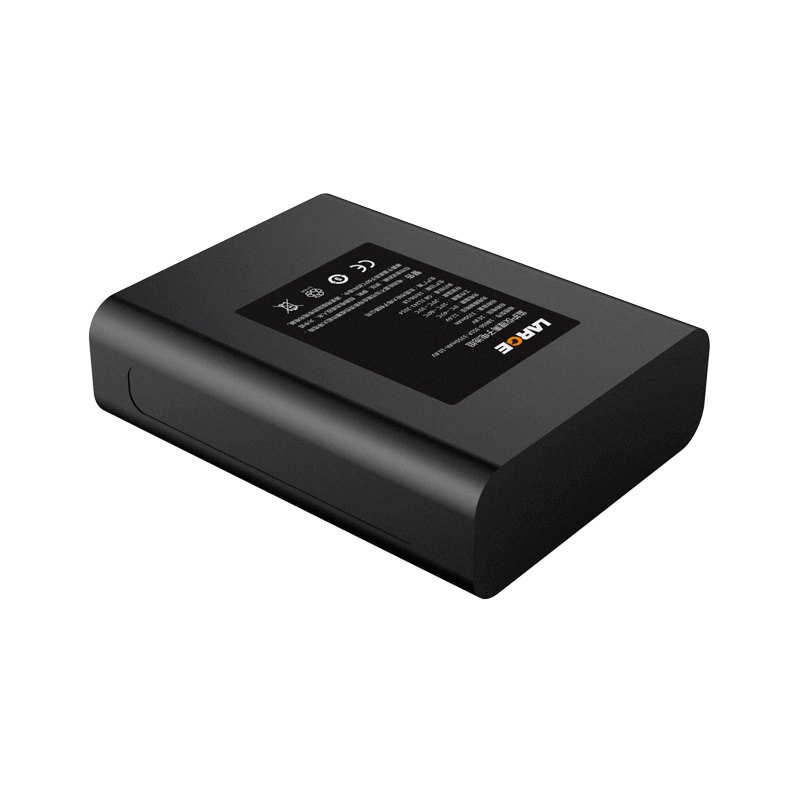

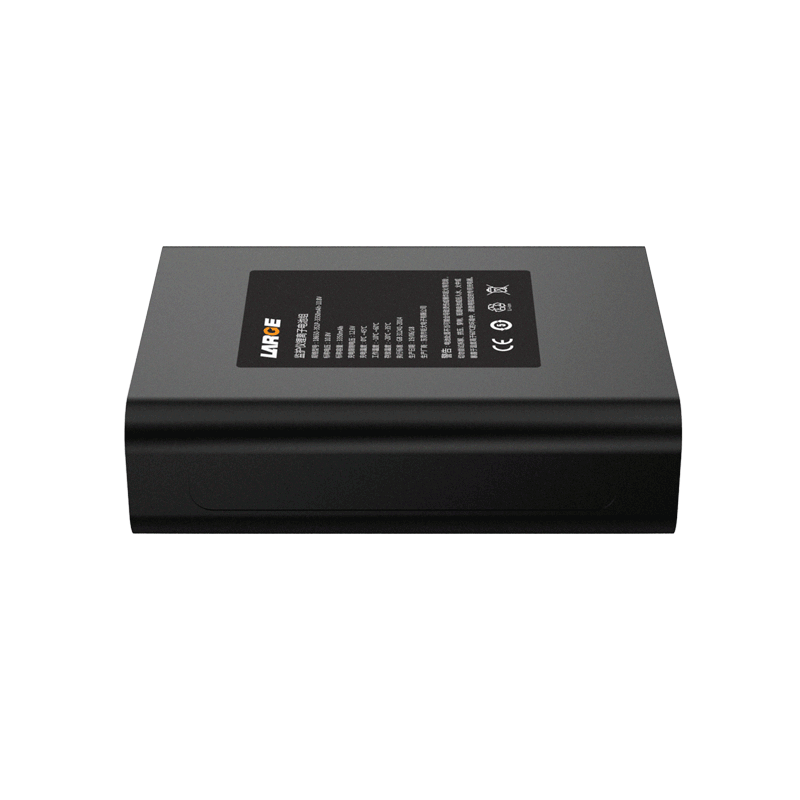

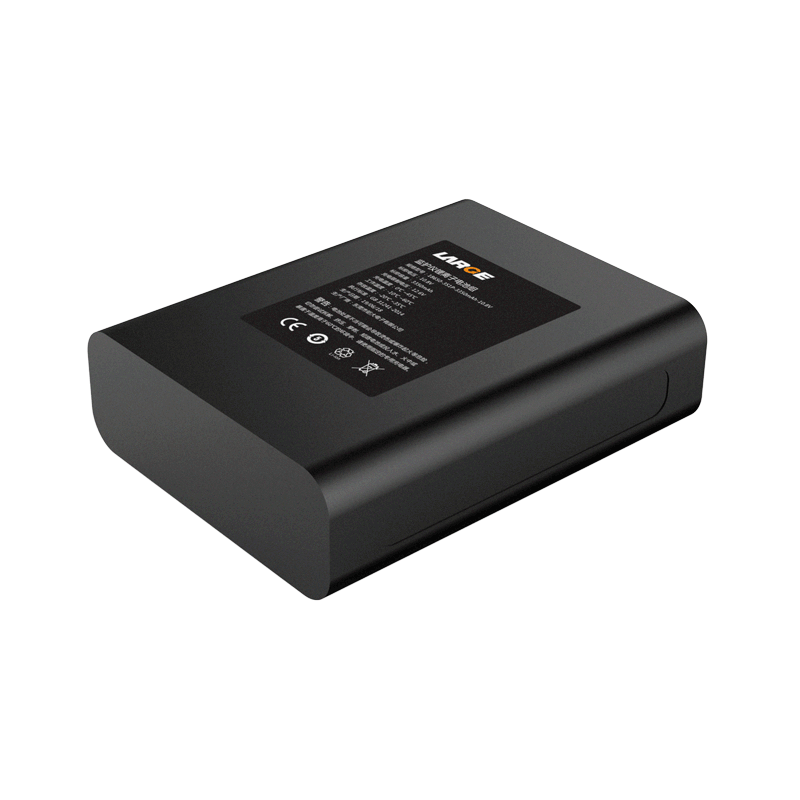

10.8V 3350mAh Lithium Ion Battery Samsung Battery for Medical Monitor with SMBUS Communication

Product Detail

Product number: 04DQ0082-01

Cell model:18650-3350mAh-3.6V

Battery specification: 18650-3S1P-3350mAh-10.8V

Nominal voltage:10.8V

Nominal capacity:3350mAh

Charging voltage: 12.6V

Charging current: ≤2000mA

Discharging current: ≤2000mA

End-off voltage: 7.95V

Internal resistance: ≤250mΩ

Battery weight: about 138g

Product dimension: 71.5*36*20mm(MAX)

Charging temperature:0~45℃

Discharging temperature: -10~60 ℃

Storage temperature: -20~35℃

Battery case: PVC

Lithium ion battery protection: overcharge protection, over-discharge protection and discharge overcurrent protection, discharge short-circuit protection.

Communication protocol:SMBUS

Application field: monitor, medical devices

*
*
*
