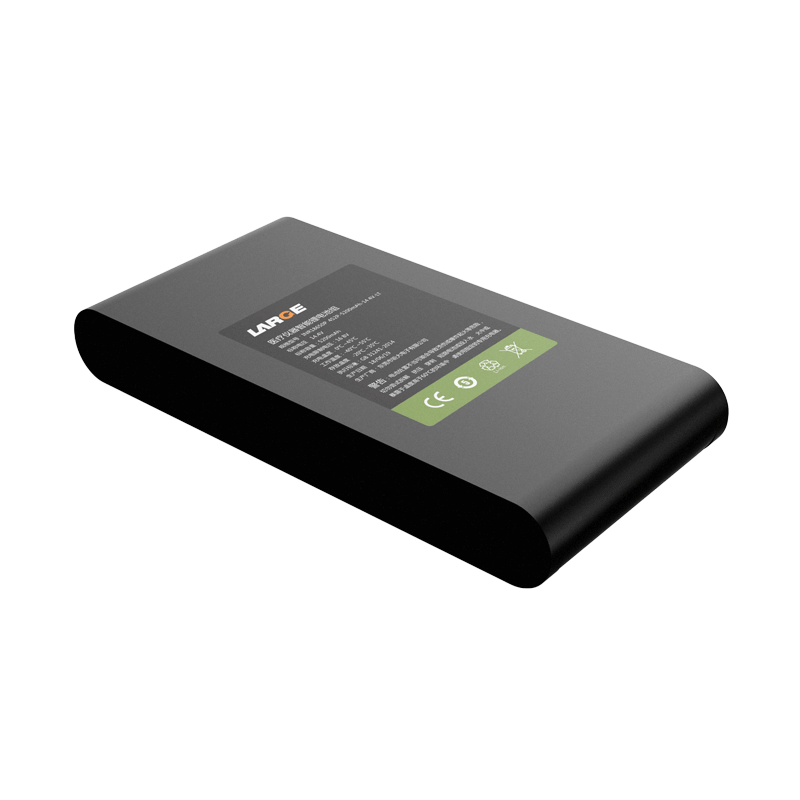

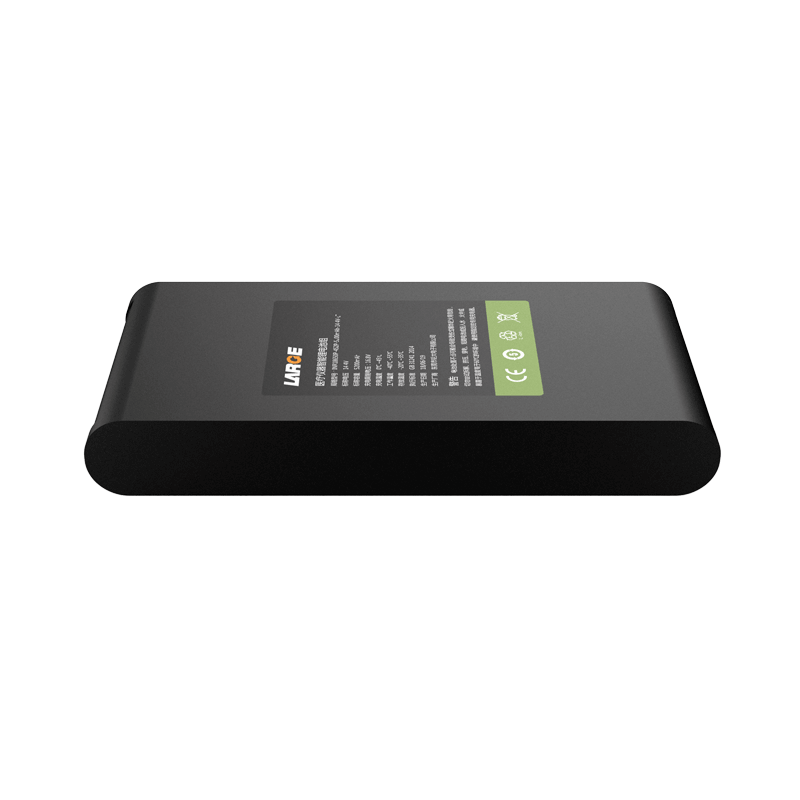

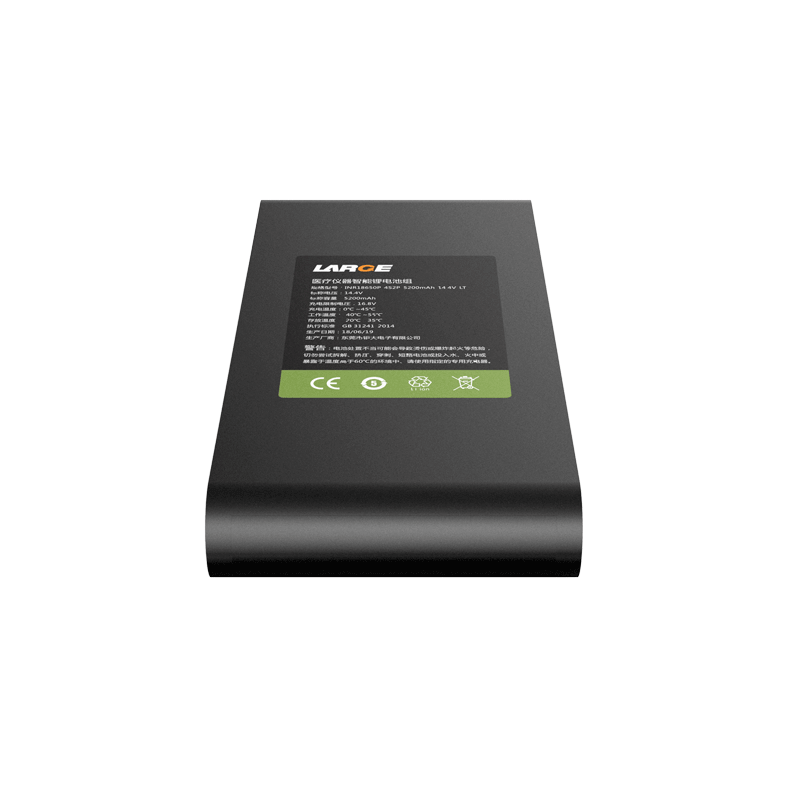

INR18650P 14.4V 5200mAh Lithium Battery for Medical Device with SMBUS Communication

Product Detail

Product number: 04DQ0086-01

Cell model:18650-2600mAh-3.6V-LT

Battery specification: INR18650P-4S2P-5200mAh-14.4V-LT

Nominal voltage:14.4V

Nominal capacity:5200mAh

Charging voltage: 16.8V

Charging current: ≤2600mA

Discharging current: ≤5200mA

End-off voltage: 10.0V

Internal resistance: ≤250mΩ

Battery weight: about 399g

Product dimension: 150*73*21mm(MAX)

Charging temperature:0~45℃

Discharging temperature: -40~55 ℃

Storage temperature: -20~35 ℃

Battery case: PVC

Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection and discharge short circuit protection.

Communication protocol: SMBUS

Application field: medical device

*
*
*
