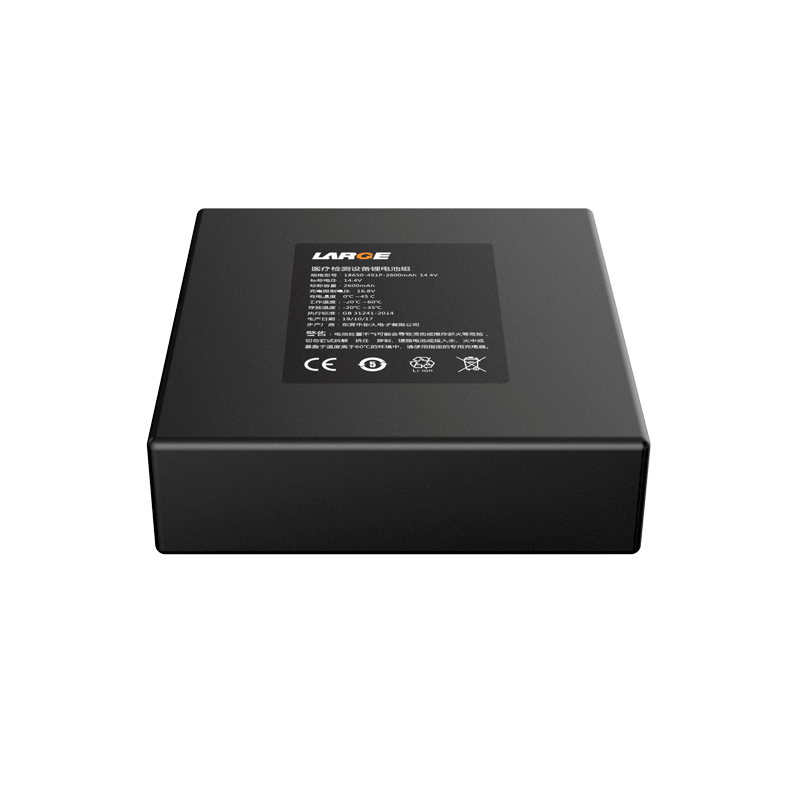

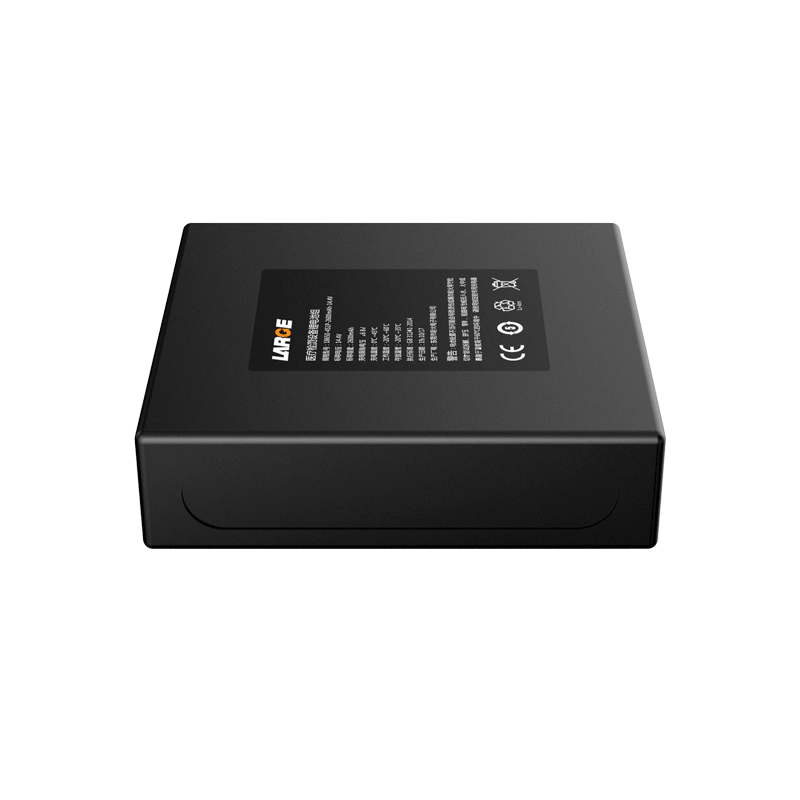

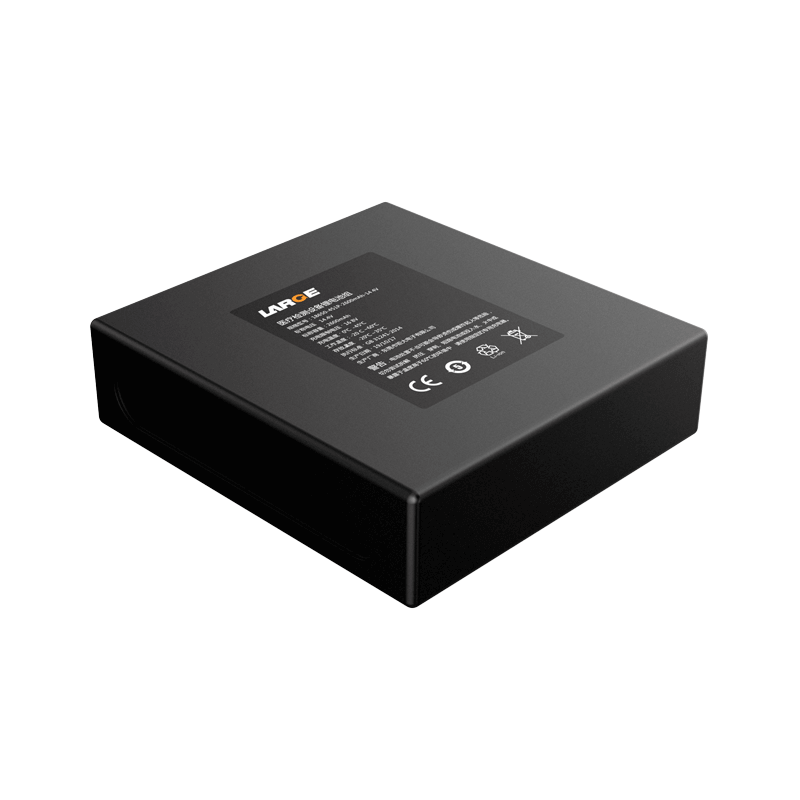

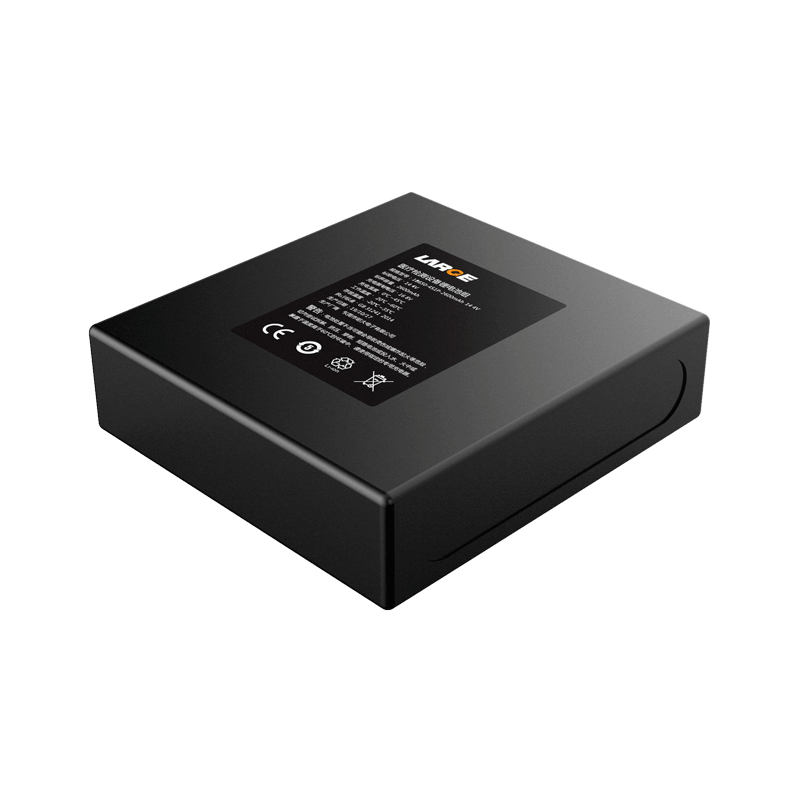

18650 14.4V 2600mAh Lithium Ion Battery Pack for Medical Testing Equipment

Product Detail

Product number: 22AQ002-03T

Cell model:18650/2600mAh/3.6V

Battery specification: 18650-4S1P-2600mAh-14.4V

Nominal voltage:14.4V

Nominal capacity:2600mAh

Charging voltage: 16.8V

Charging current: ≤1250mA

Discharging current: ≤2500mA

End-off voltage: 11.0V

Internal resistance: ≤300mΩ

Battery weight: about 200g

Product dimension: 75*69.5*20mm MAX

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case:PVC

Lithium ion battery protection: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, etc.

Application field: medical testing equipment

*
*
*
