18650 10.8V 5000mAh Samsung Battery 18650 Battery for Communication Stations

Product Detail

Product number: 01DQ0047-05

Cell model:INR18650-25R/2500mAh/3.6V-SDI

Battery specification: 18650-3S2P/5000mAh/10.8V

Nominal voltage:10.8V

Nominal capacity:5000mAh

Charging voltage: 12.6V

Charging current: 2500mA

Discharging current: 2500mA

Maximum discharging current: 30000mA

End-off voltage: 8.4V

Internal resistance: ≤350mΩ

Battery weight: 350g

Product dimension: 154.5*29.7*26.9mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~70 ℃

Storage temperature: -20~45℃ less than three months

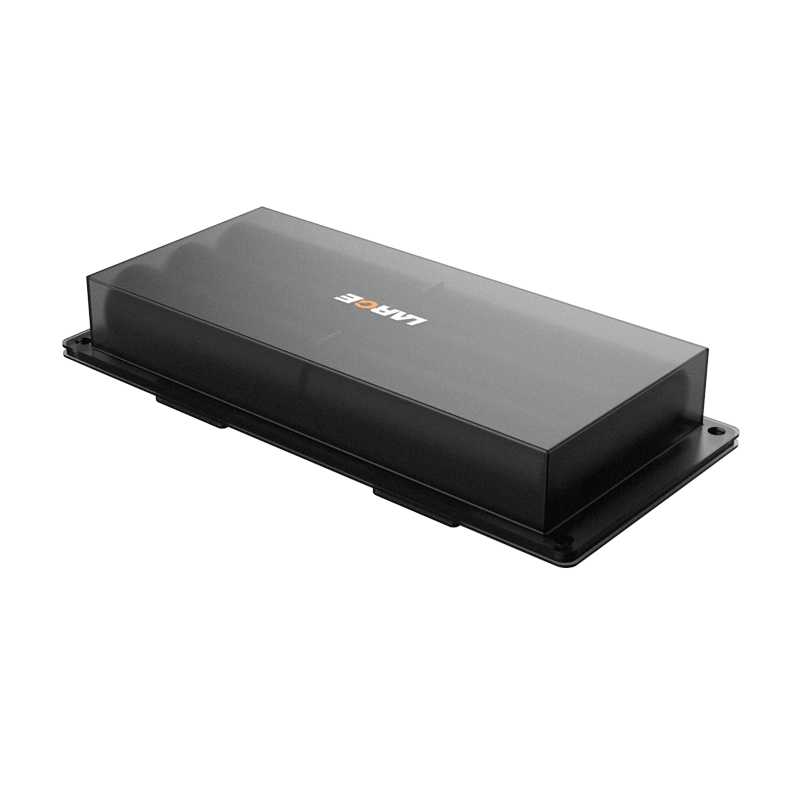

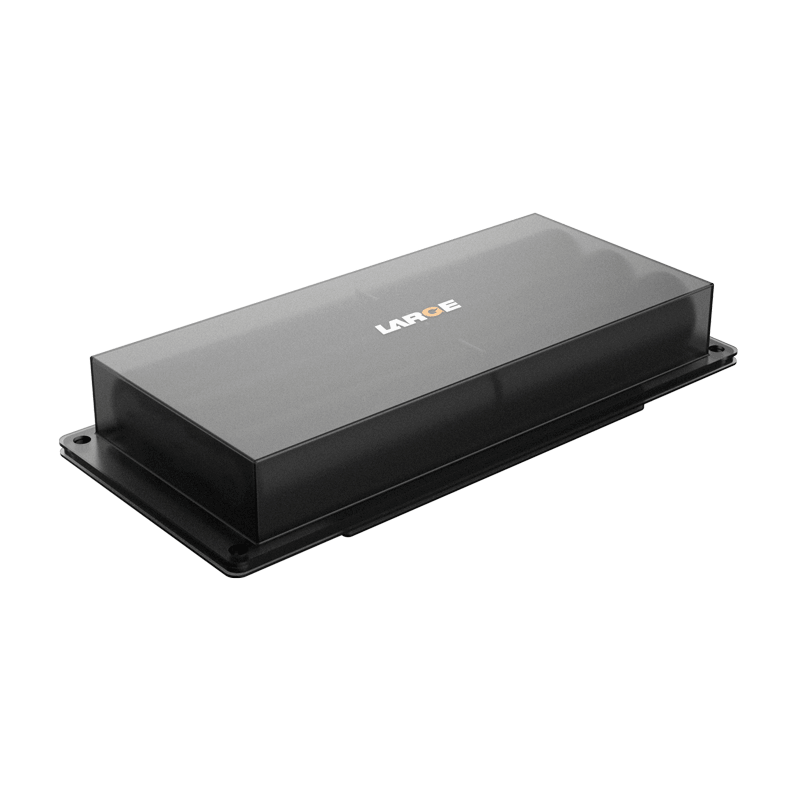

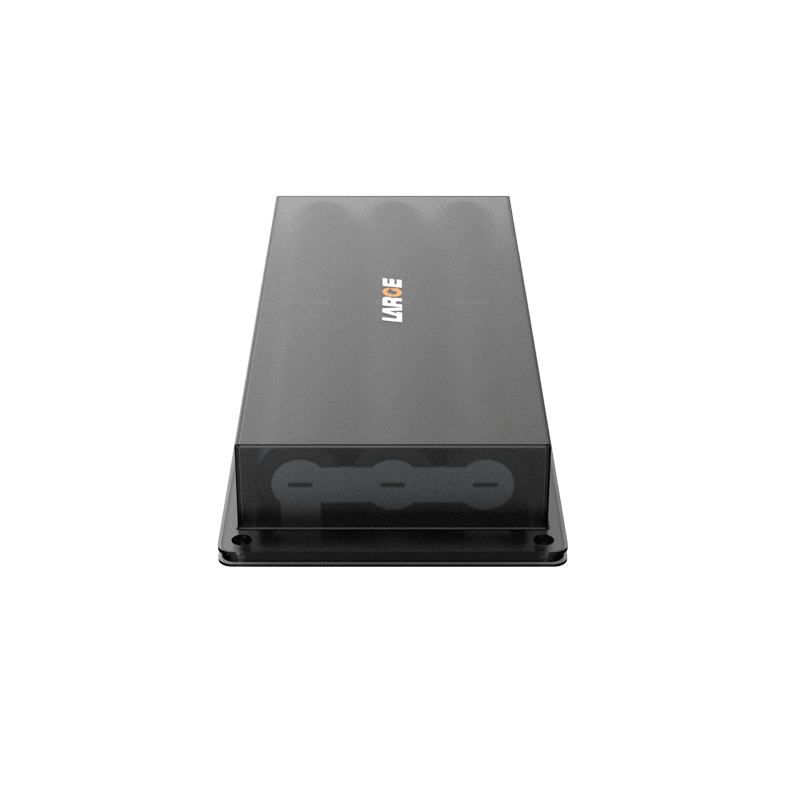

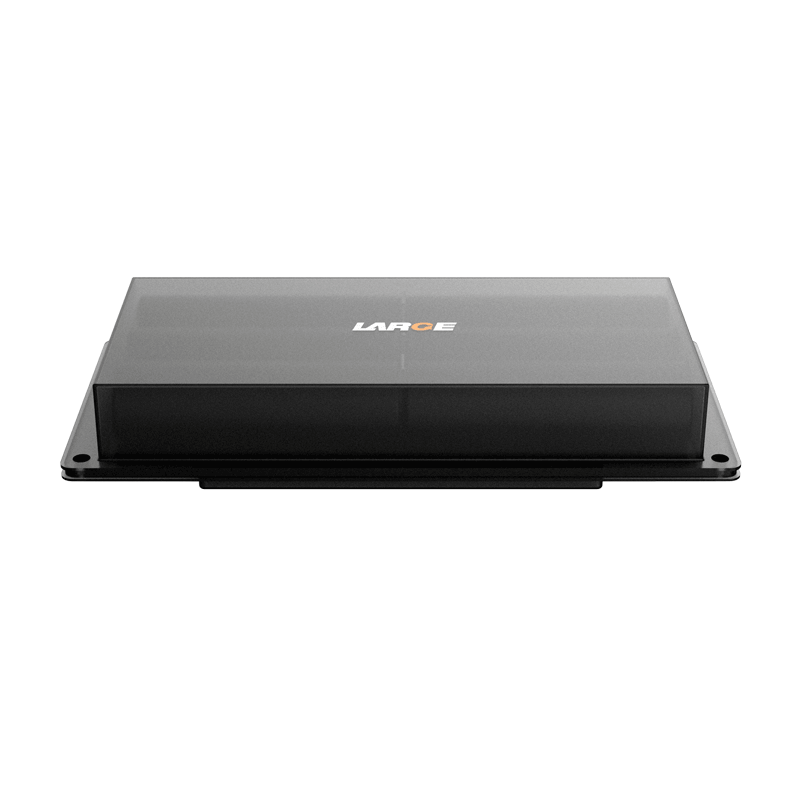

Battery package: PP translucent case

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: industrial instrument, communication station


Product features

PP translucent case increases battery reliability and solidity. Its fire rating is UL94 V-0.

The battery pack has good security, nice low-temperature discharge performance and long cycle life. It conforms to the principle of low carbon, energy conservation and environmental protection.

Data communication management: adopt TI charging management chip, which has constant current constant voltage performance. The charging voltage and current can be adjusted according to the characteristics of the cell, and the charging temperature, charging current and charging voltage can be monitored. It also has short circuit protection, low power consumption, high efficiency, small package, voltage width, etc.

*
*
*
