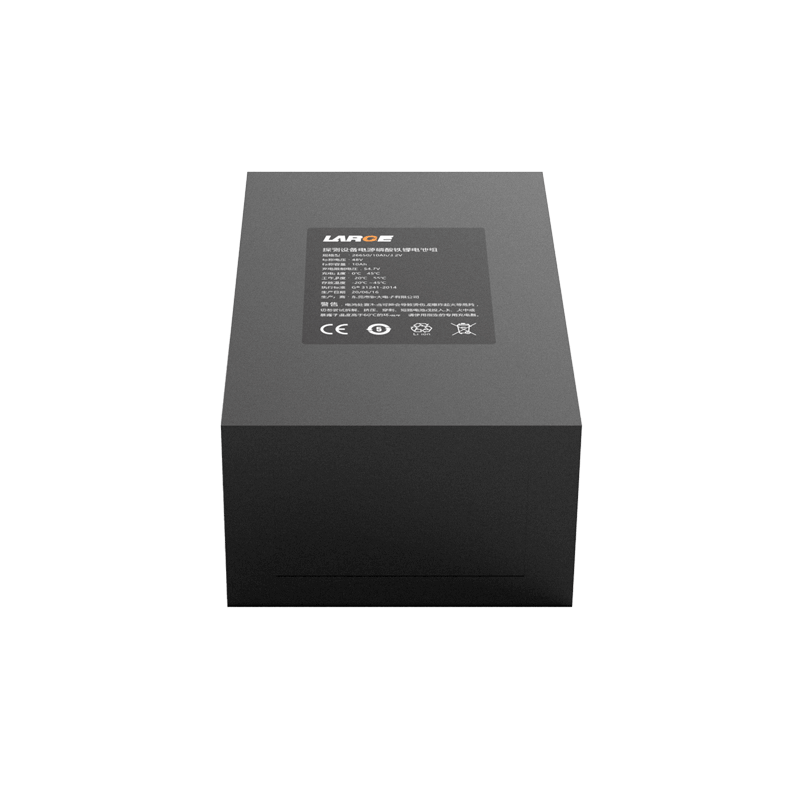

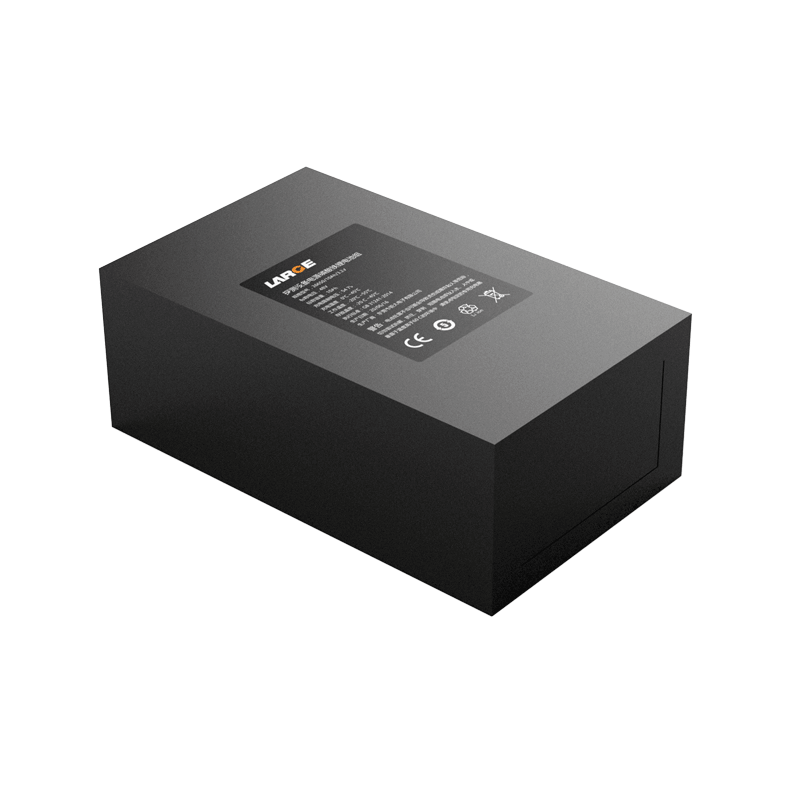

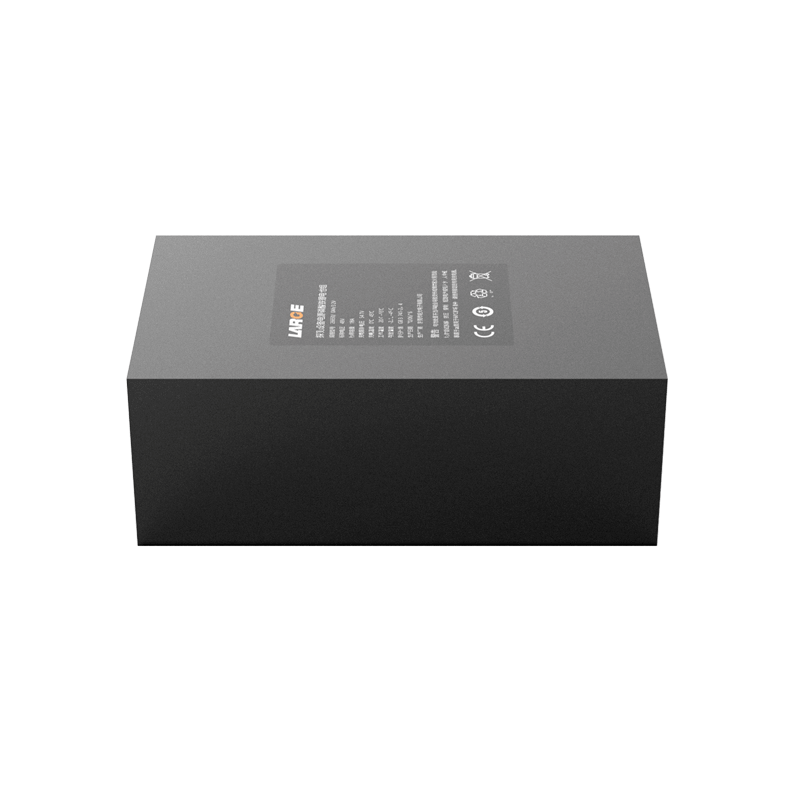

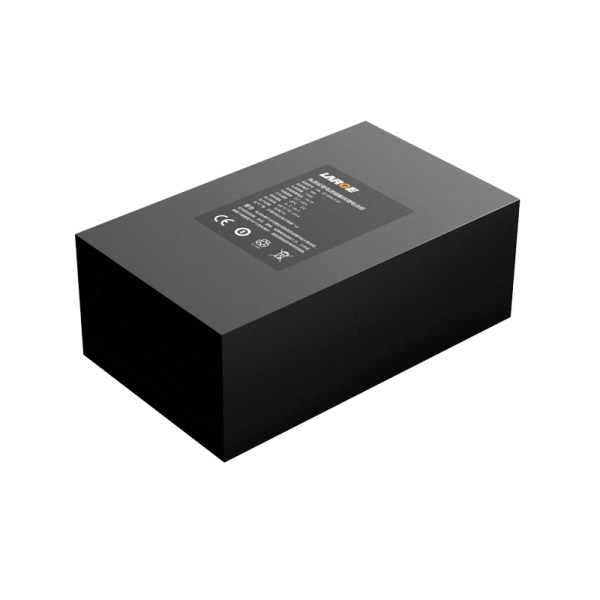

48V 10Ah 26650 Lifepo4 Battery for Detection Equipment

Product Detail

Product number: 42DZ002-01

Cell model:26650/10Ah/3.2V

Battery specification: 48V10Ah

Nominal voltage:48V

Nominal capacity:10Ah

Charging voltage: 54.7V

Charging current: ≤10A

Discharging current: 10A

Instant discharging current: 20A

End-off voltage: 30V

Internal resistance: ≤200mΩ

Battery weight: 5000g

Product dimension: 245×145×90mm(max)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~45℃

Battery case: portable epoxy plate + PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, equilibrium, 232 and 485 communication, etc.

Application field: detector power supply


Product features

1. Current: Lasts for a maximum of 20A discharge.

2. Data communication management: use imported software management chip, have 232 and 485 communication functions, accurate data transmission, accurate temperature control, so as to eliminate the security risks.

3. Battery characteristics: the battery has a long life for 2000 cycles, and can discharge at low temperature to -20 ℃.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
