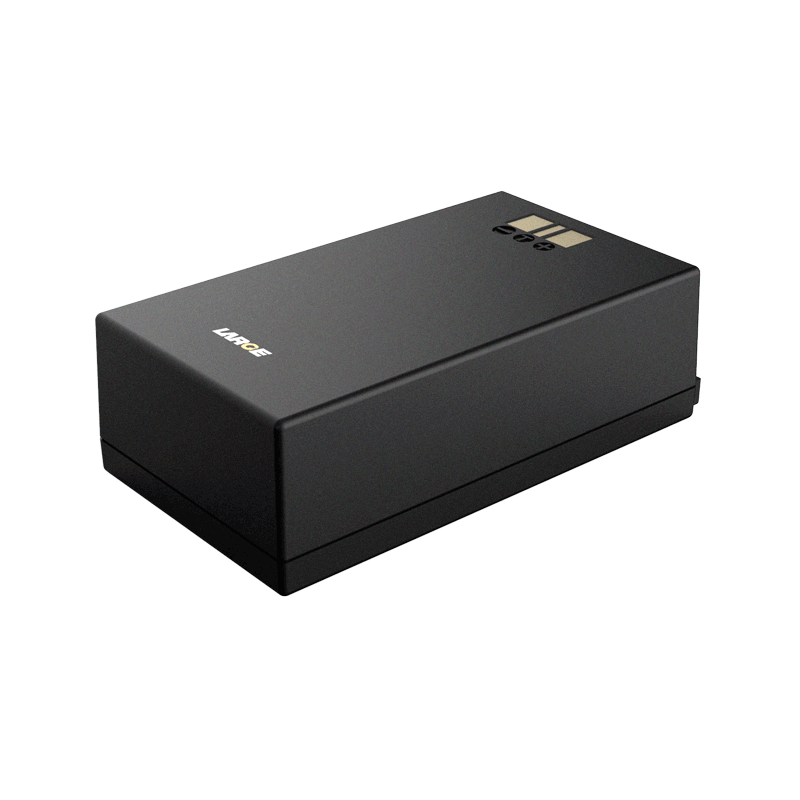

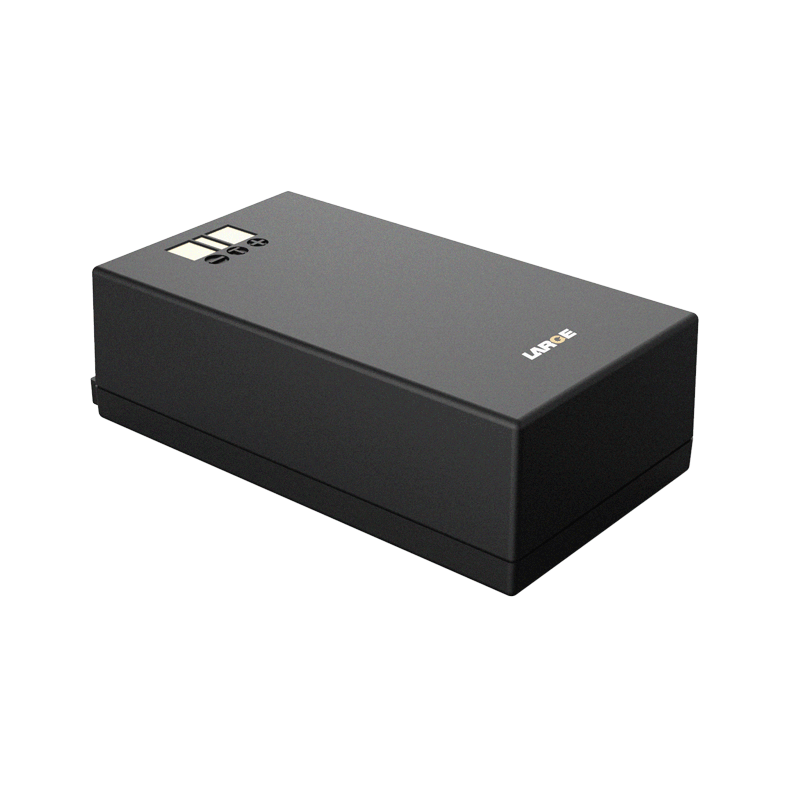

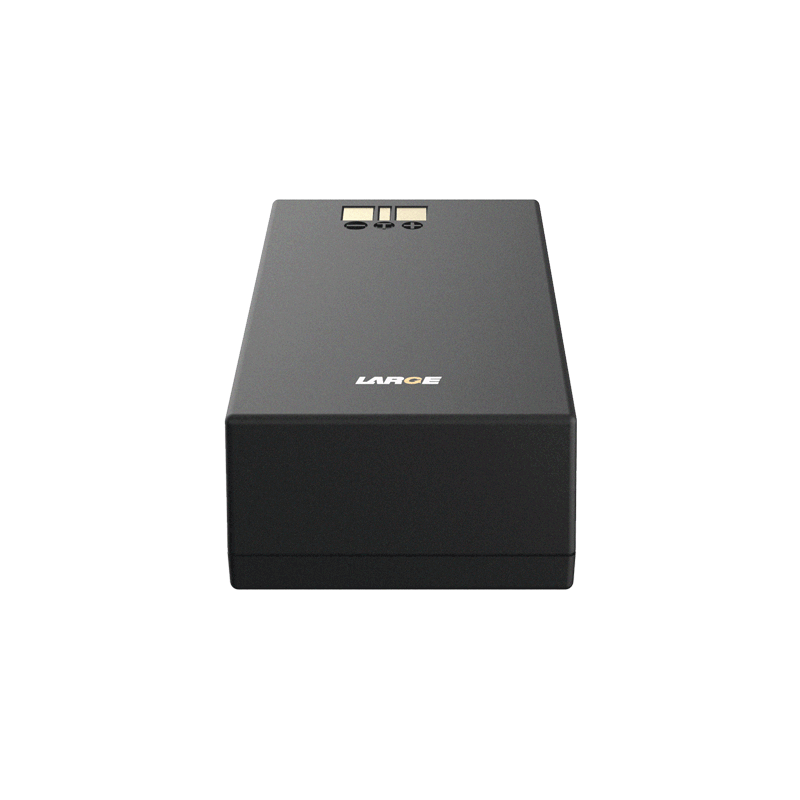

18650 3.6V 5200mAh Lithium Ion Battery for Optical Instruments

Product number: 36AQ301-01

Cell model：18650/3.63V/2600mAh

Battery specification: 18650-1S2P/3.63V/5200mAh

Nominal voltage：3.6V

Nominal capacity：5200mAh

Charging voltage: 4.2V

Charging current: ≤2.6A

Discharging current: 1.0A

Instant discharging current: 2.6A

End-off voltage: 3.0V

Internal resistance: ≤320mΩ

Battery weight: 110g

Product dimension: 71.3*40.3*22.8mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: POS machine, mobile printing, optical instrument, portable equipment, etc.

Product features

1. ABS+PC case increases the reliability and immobility of the battery.

2. Hardware output terminal: adopt metal-plated shrapnel output mode to increase the reliability of conductivity;.

3. Data communication management: Use Seiko protection management chip, and maximize the elimination of security risks.

4. The battery pack has good safety performance, nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
