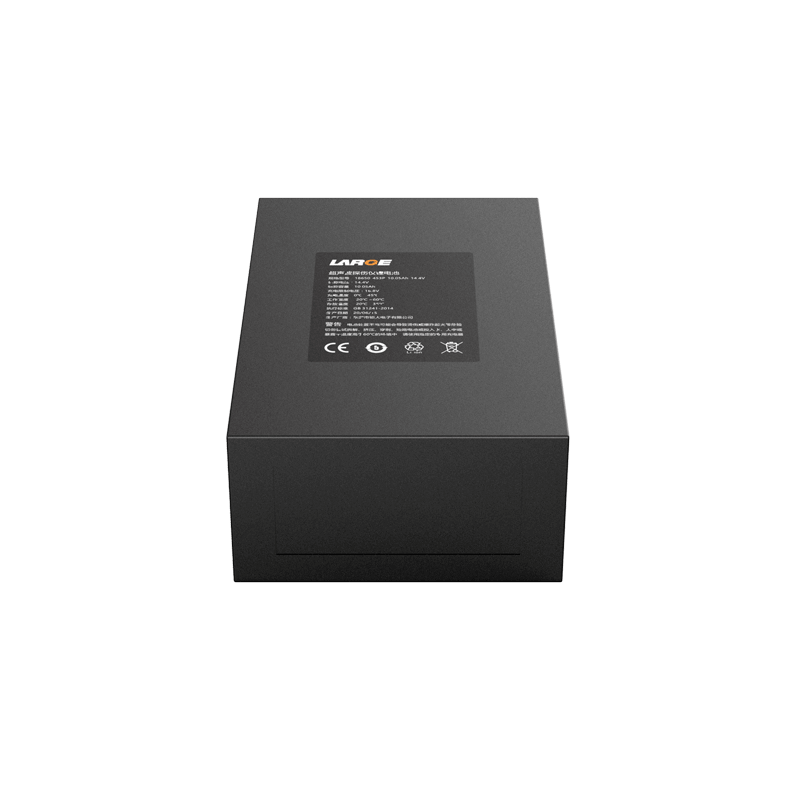

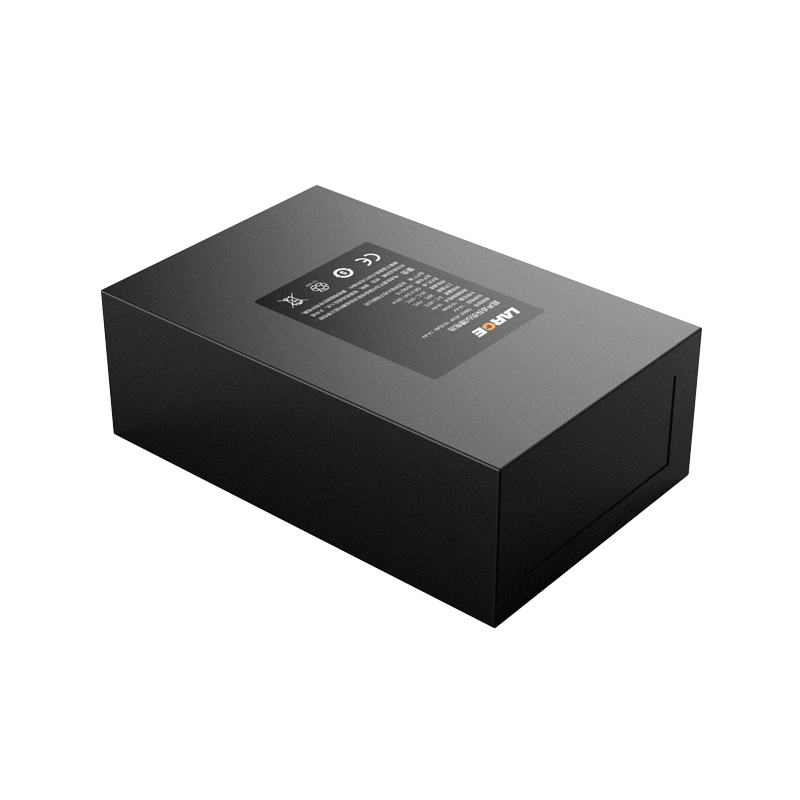

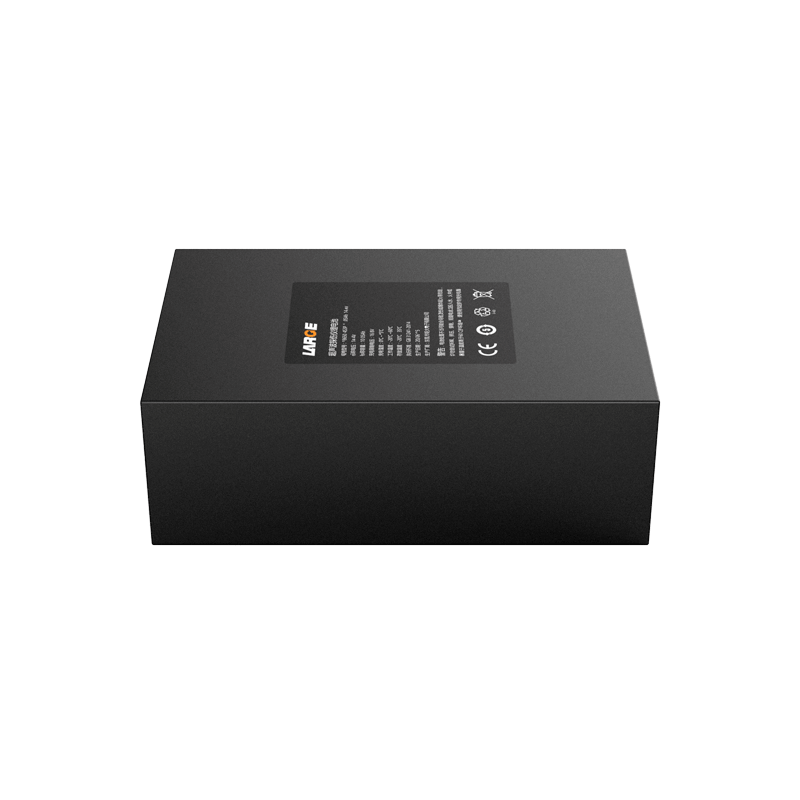

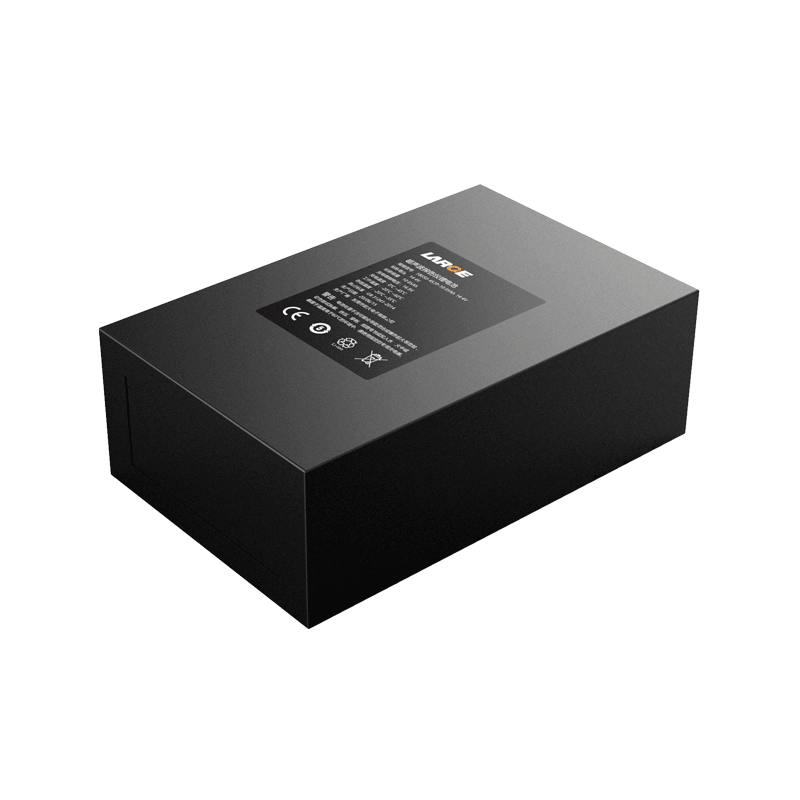

18650 14.4V 10.05Ah Lithium Ion Battery for Ultrasonic Fault Detector

Product Detail

Product number: 05DQ0040-01

Cell model:18650-3350mAh-3.6V

Battery specification: 18650-4S3P-10.05Ah-14.4V

Product dimension: 121*76*40.5mm(Max)

Nominal voltage:14.4V

Nominal capacity:10.05Ah

Charging voltage: 16.8V

Charging current: ≤5A

Discharging current: 2A

Instant discharging current: 6A

End-off voltage: 10.8V

Internal resistance: ≤350mΩ

Battery weight: 700g

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Battery case: blue PVC shrink film

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, overcurrent protection, ESD protection, etc.

Application field: portable ultrasonic exploration equipment, portable mapping equipment

Product features

1. Blue PVC shrink film is simple, reliable and easy to install.

2. Connector plug outlet: adopt JST plug to increase conductive reliability.

3. Battery protection management: Use imported Seiko protection chip with good stability, high precision monitoring, accurate control and temperature protection to maximize the elimination of safety risks.

4. The battery pack has good safety performance, nice discharge performance, long cycle life, and over 90% discharge current.

5. The battery pack has good safety performance, nice discharge performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
