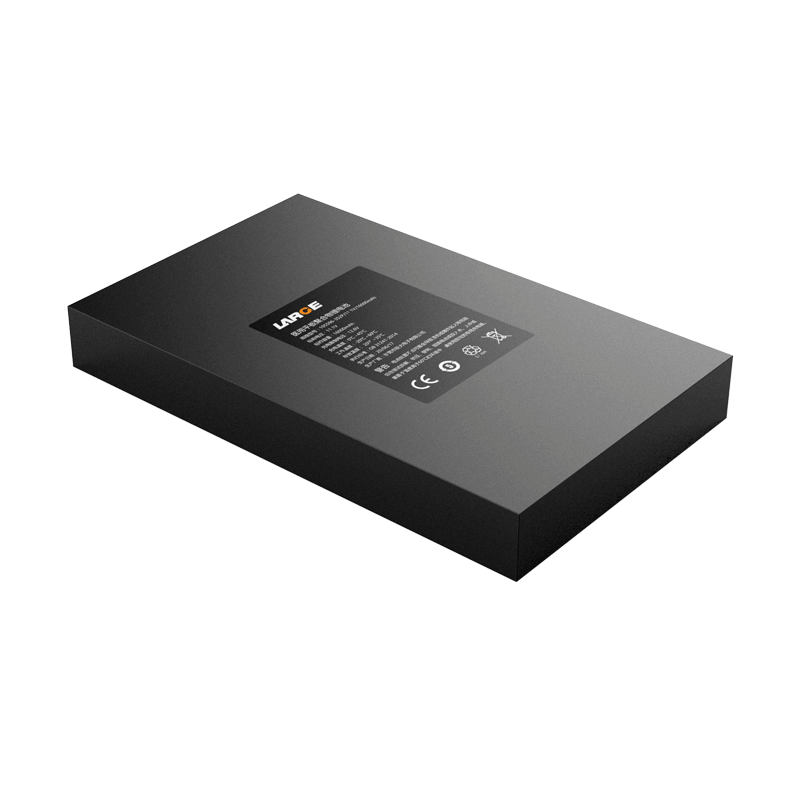

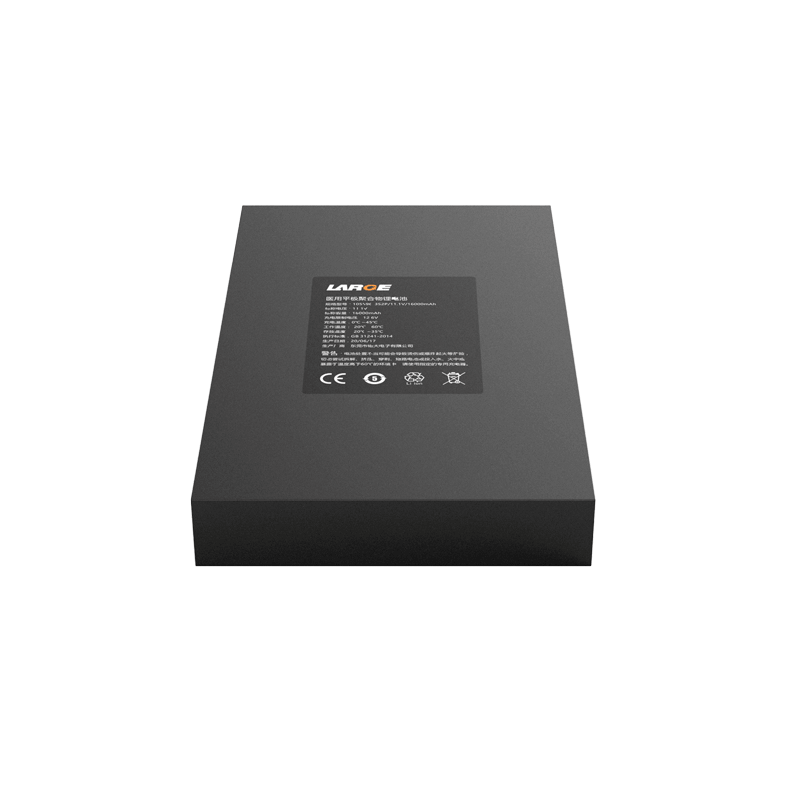

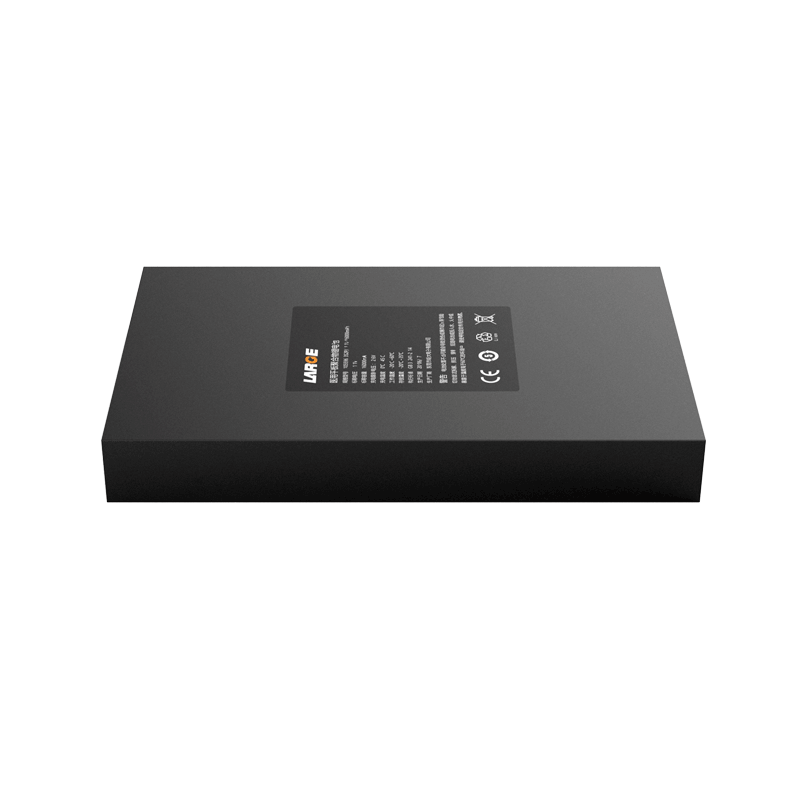

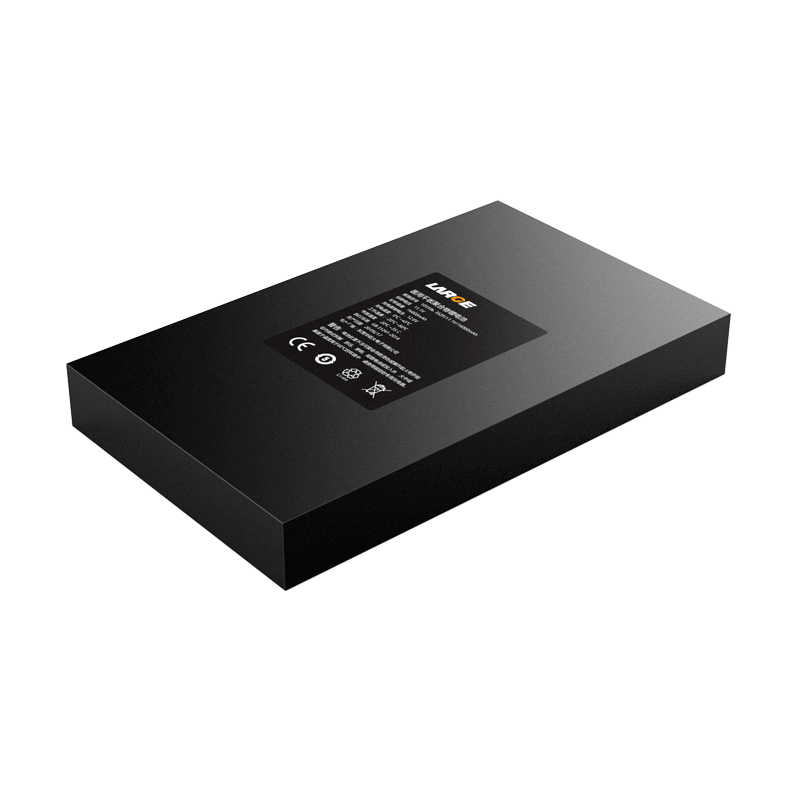

11.1V 16000mAh Lithium Polymer Battery for Medical Tablet PC

Product Detail

Product number: 08DQ0017-01

Cell model:105596/3.7V/8000mAh

Battery specification: 105596-3S2P/11.1V/16000mAh

Nominal voltage:11.1V

Nominal capacity:16000mAh

Charging voltage: 12.6V

Charging current: ≤4A

Discharging current: 2A

Instant discharging current: 4A

End-off voltage: 9.0V

Internal resistance: ≤250mΩ

Battery weight: 0.74Kg

Product dimension: 167*102*21mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: PVC flexible package

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: portable equipment


Product features

1. Data communication management: adopt TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks..

2. The battery pack has good security, nice performance and long cycle life.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
