Custom Lithium ion Battery Pack

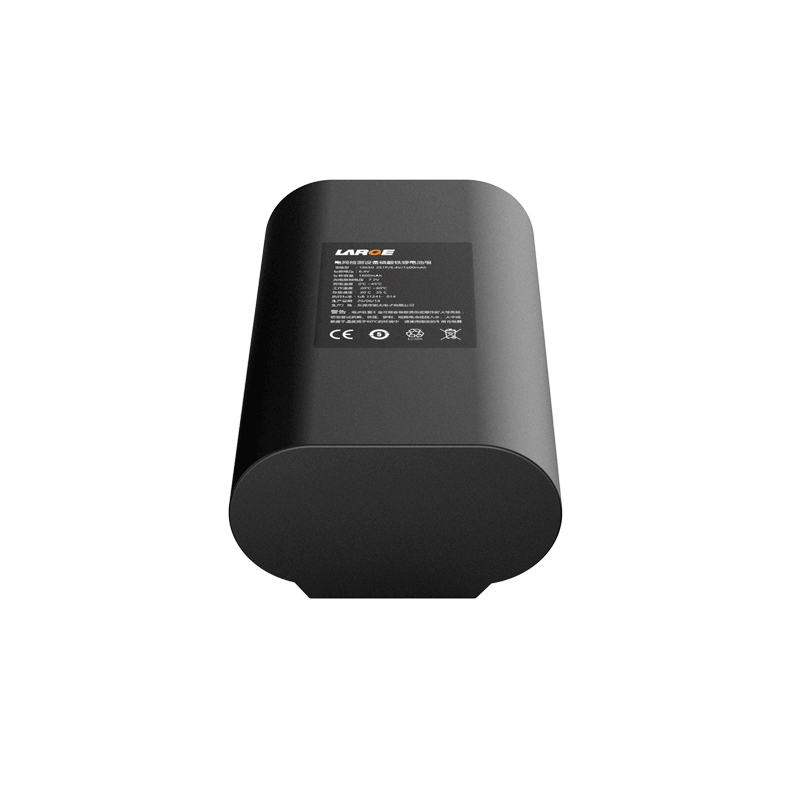

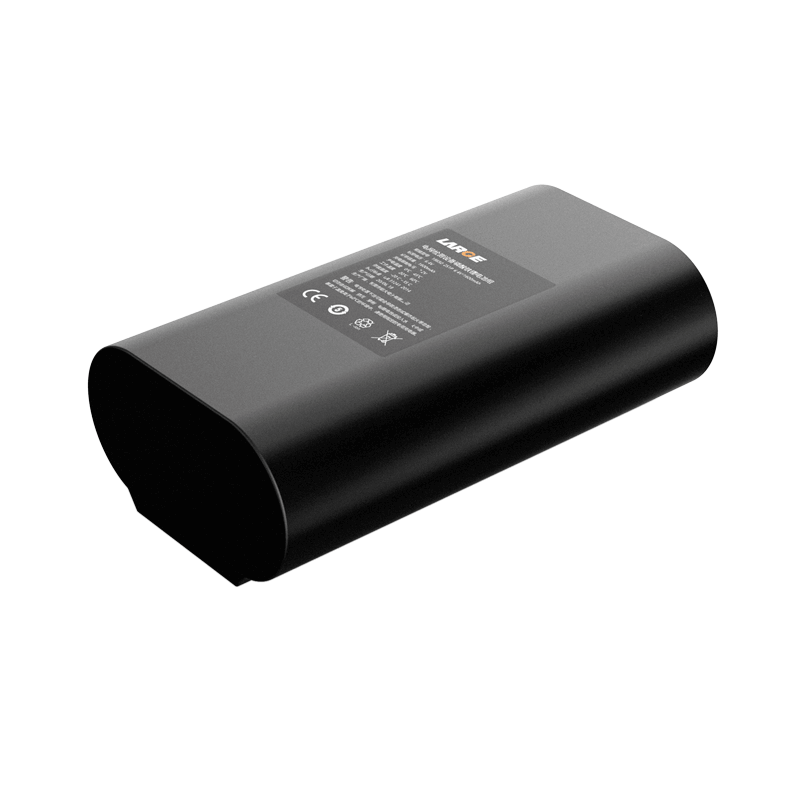

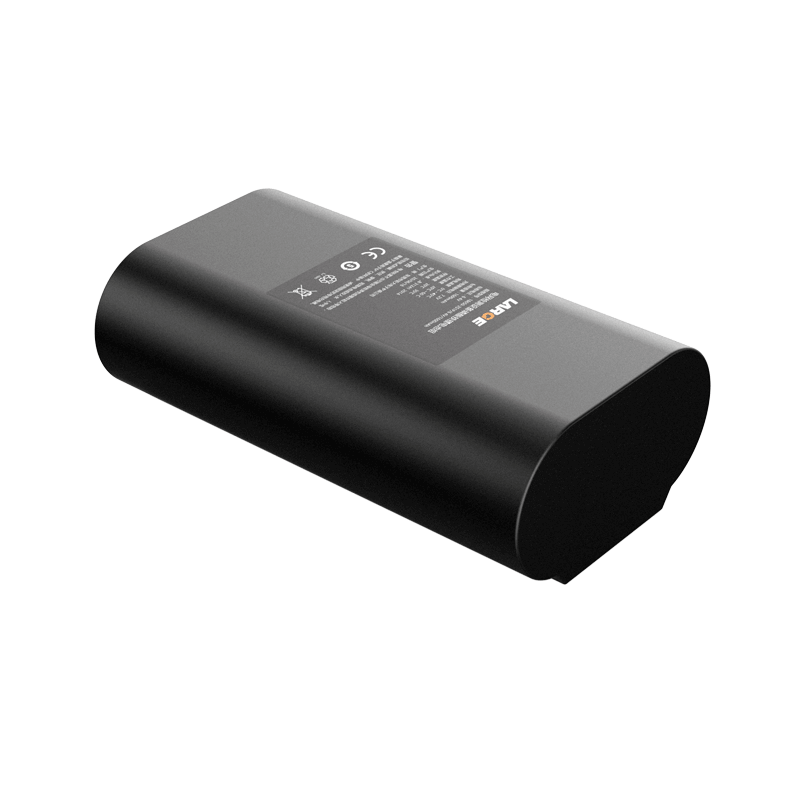

6.4V 1600mAh Lishen Battery LiFePO4 Battery for Power Grid Detection Equipment With 1-Wire Communication

Product Detail

Product number: 34AQ018-03

Cell model:18650/1600mAh/3.2V

Battery specification: 18650-2S1P/6.4V/1600mAh/

Nominal voltage:6.4V

Nominal capacity:1600mAh

Charging voltage: 7.2V

Charging current: ≤800mA

Discharging current: 1.6A

Instant discharging current: 3A

End-off voltage: 4.0V

Internal resistance: ≤280mΩ

Battery weight: 85g

Product dimension: 67*37.5*22.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection, etc.

Application field: power grid detection equipment

Product features

1. Current: Discharge maximum 1.6A.

2. Data communication management: use imported software management chip, 1-WIRE communication function, accurate data transmission, precise temperature control, so as to eliminate security risks.

3. Battery characteristics: The battery has a long life with up to 2000 cycles, and can be charged and discharged with high power.

4. The battery pack has good safety, nice low-temperature performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
