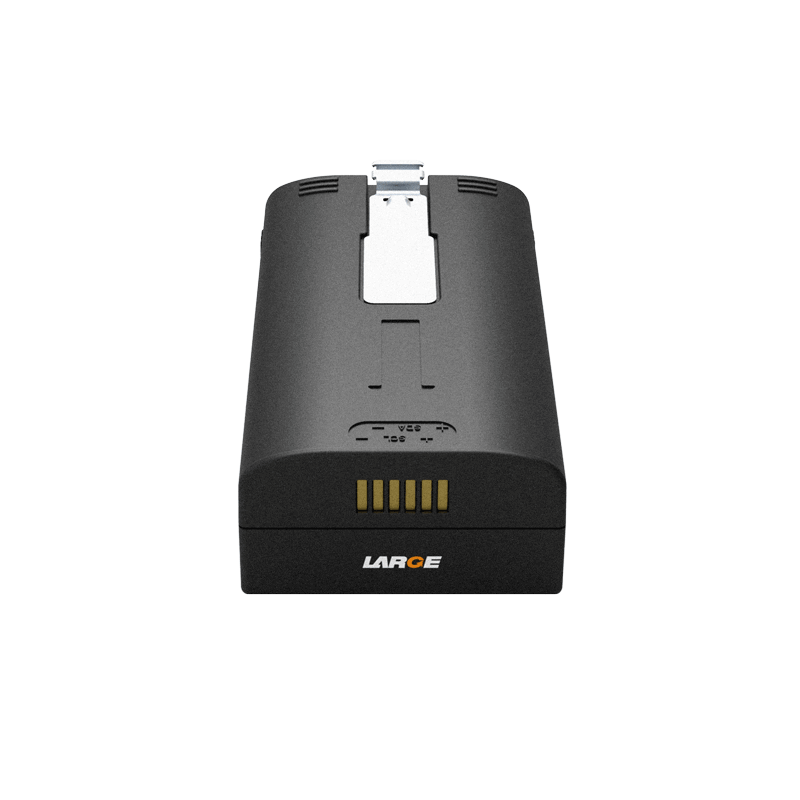

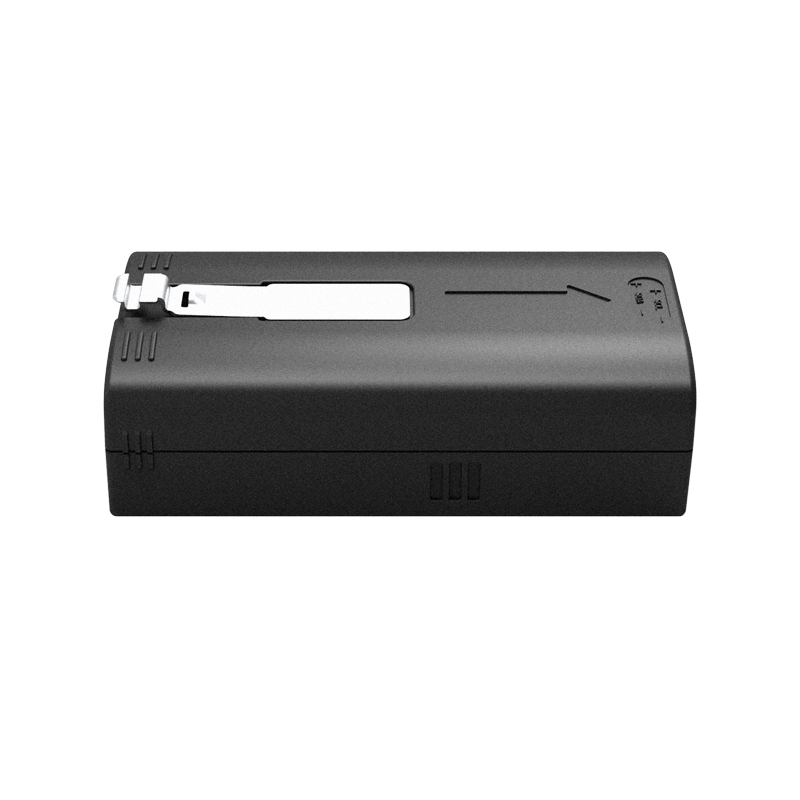

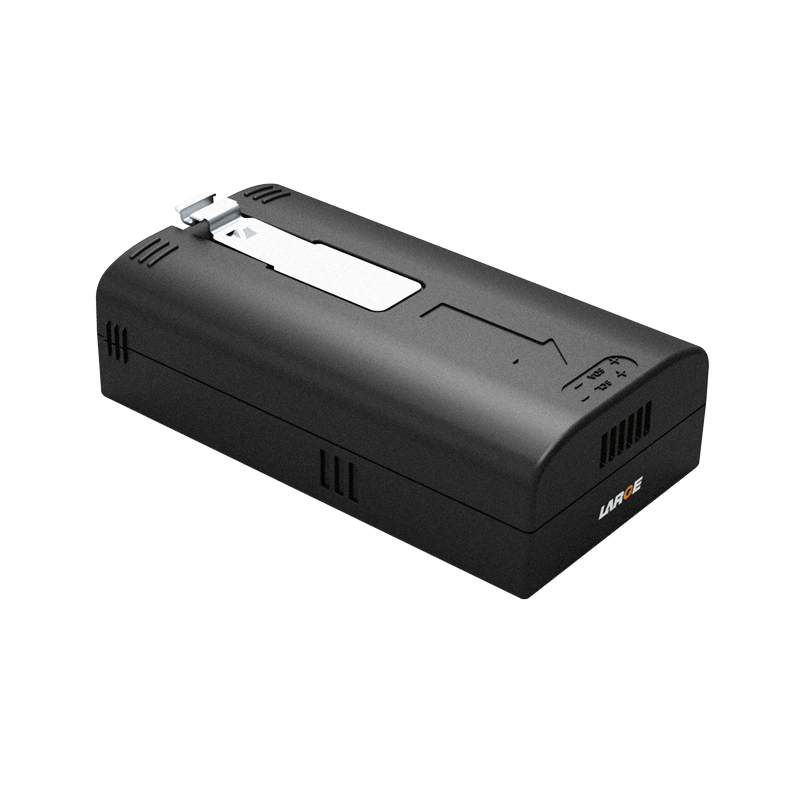

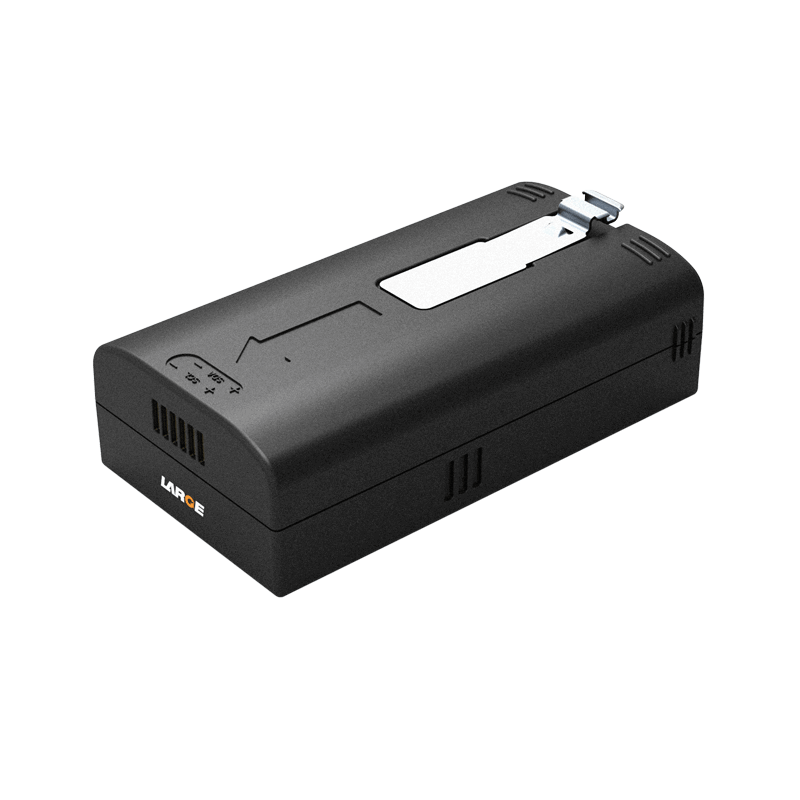

3.6V 6250mAh Samsung Lithium ion Battery Pack For Intelligent Door Lock

Product Detail

Project number: 01DQ0023-43T

Cell model: INR18650-35E/3350mAh/3.6V

Battery specification: 18650-1S2P/6250mAh/3.6V

Nominal voltage:3.6V

Nominal capacity:6250mAh

Charging voltage:from 5V to 4.2V during charging

Charging current: ≤3.35A

Discharging current: 3.35A

Instant discharging current: 7.5A

End-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 130g

Product dimension: 22.2*42.0*77.9mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~23℃

Battery case: ABS+PC

Lithium ion battery protection: power calculation, short circuit protection, overcharge protection, over discharge protection, over current protection, USB charging, etc.

Application field: intelligent door lock

*
*
*
