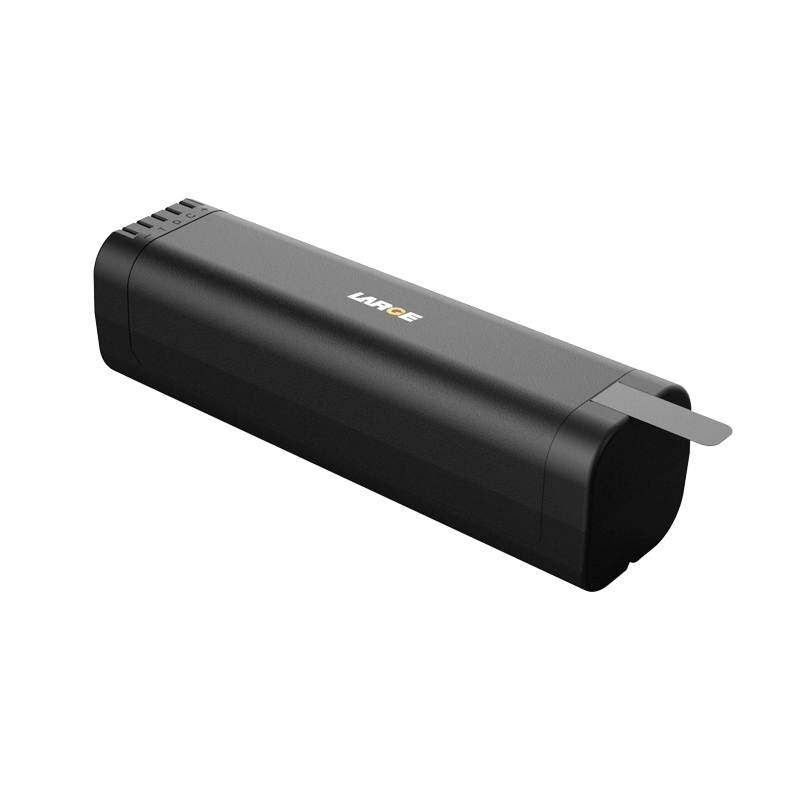

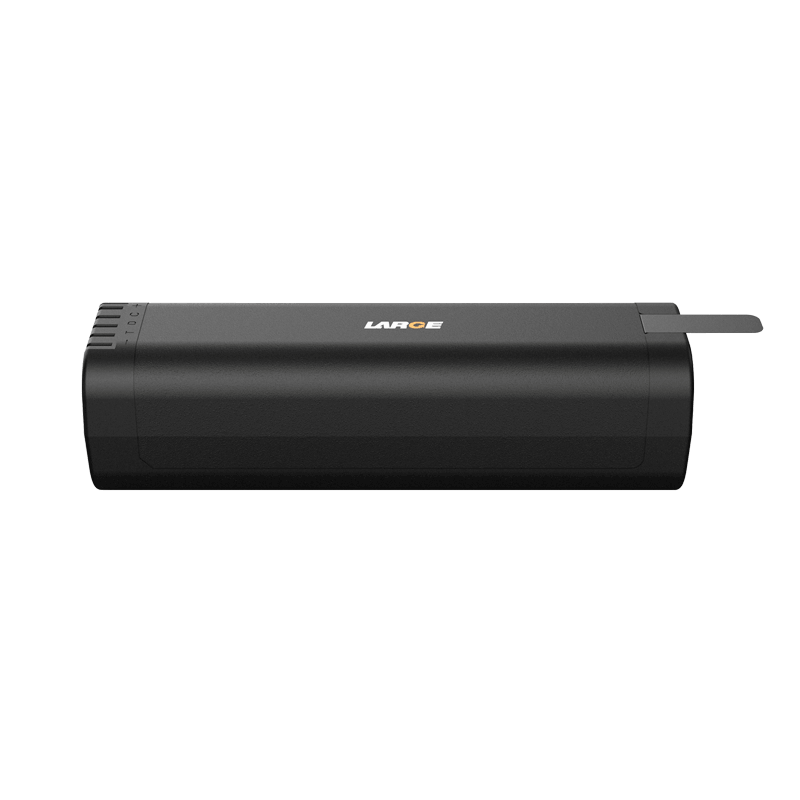

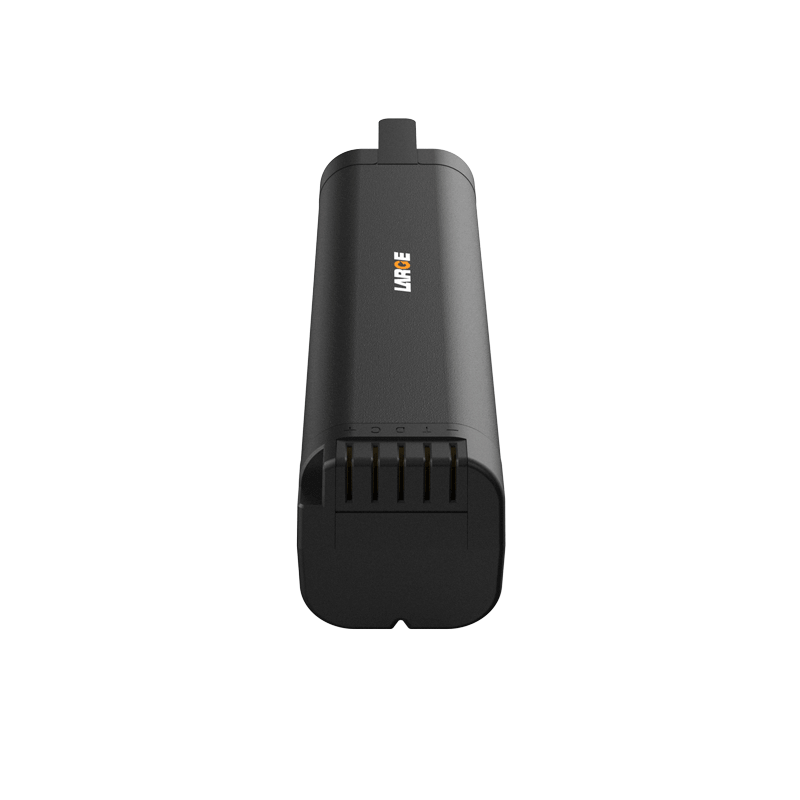

18650 14.4V 6.7Ah Samsung Lithium Battery Pack For Rugged Laptop With SMBUS Communication Protocol

18650 14.4V 6.7Ah Samsung Lithium Battery Pack For Rugged Laptop With SMBUS Communication Protocol
18650 14.4V 6.7Ah Samsung Lithium Battery Pack For Rugged Laptop With SMBUS Communication Protocol
18650 14.4V 6.7Ah Samsung Lithium Battery Pack For Rugged Laptop With SMBUS Communication Protocol
18650 14.4V 6.7Ah Samsung Lithium Battery Pack For Rugged Laptop With SMBUS Communication Protocol

Product Detail

Product number: 36AQ416-01

Cell model:18650/3.6V/3350mAh

Battery specification: 18650-4S2P/14.4V/6.7Ah

Nominal voltage:14.4V

Nominal capacity:6.7Ah

Charging voltage: 16.8V

Charging current: ≤3.3A

Discharging current: 1.5A

Instant discharging current: 5A,3~4S

End-off voltage: 12V

Internal resistance: ≤280mΩ

Battery weight: 450g

Product dimension: 142.48*41.5*41.5(mm)

Charging temperature:0~45℃

Discharging temperature: -10~60℃

Storage temperature: -20~23℃ (less than 12 month)

Battery case: ABS+PC

Lithium ion battery protection: normal protection + SMBUS communication protocol

Application field: rugged laptop, industrial instrument.


Product features

1. Imported cell: The battery pack has good security and long cycle life.

2. The battery is intelligent with SMBUS communication protocol, and the protection parameters can be adjusted by software.

3.Special shape design: the battery can be customized for various special structures, and the battery shell is removable and easy to replace.

4.The battery adopts anti drop design.

*
*
*
