Product number: 04DQ0096-01

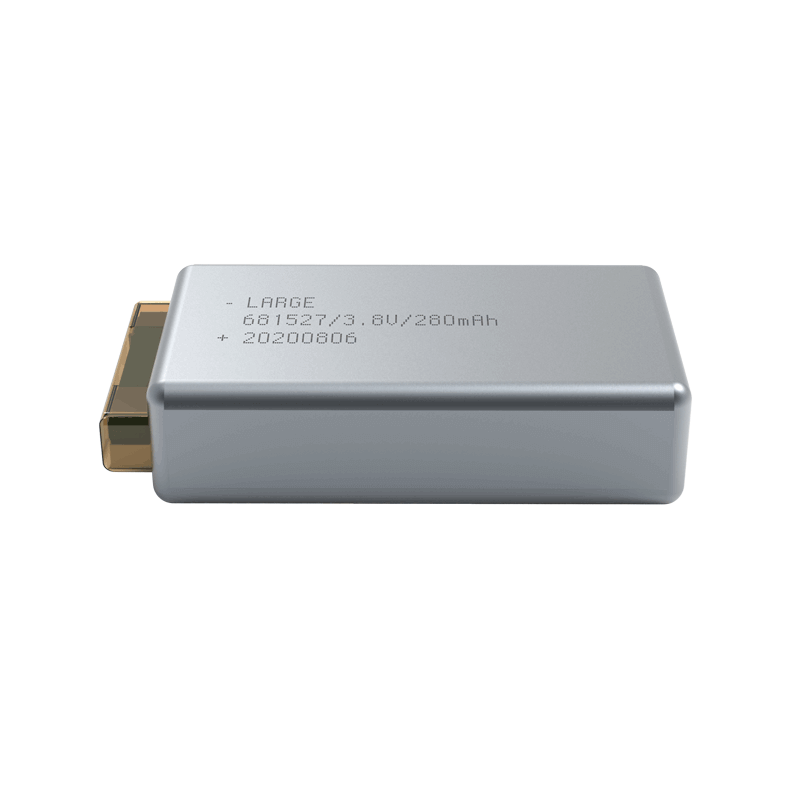

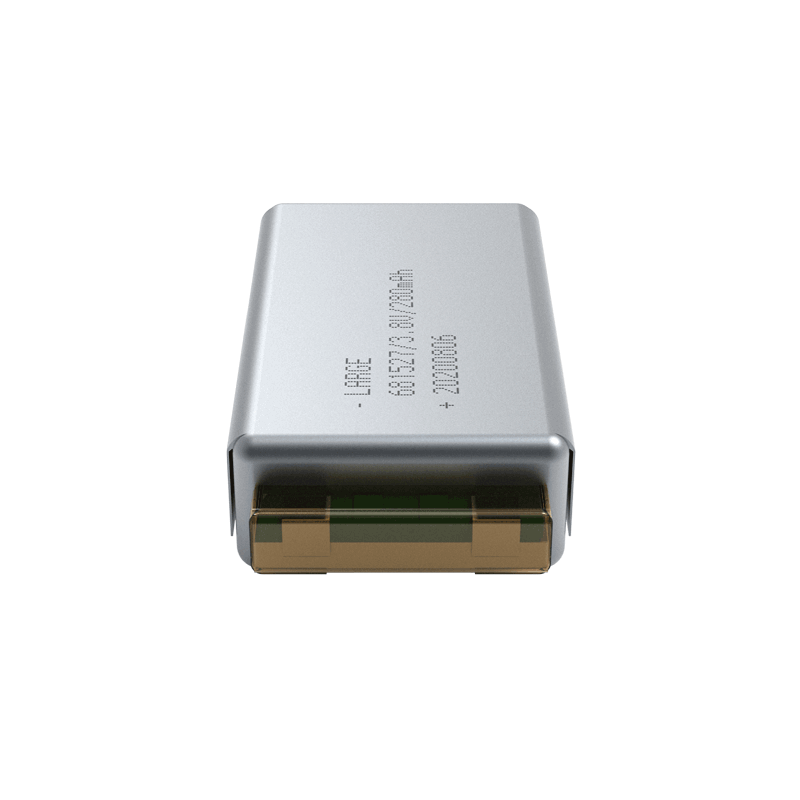

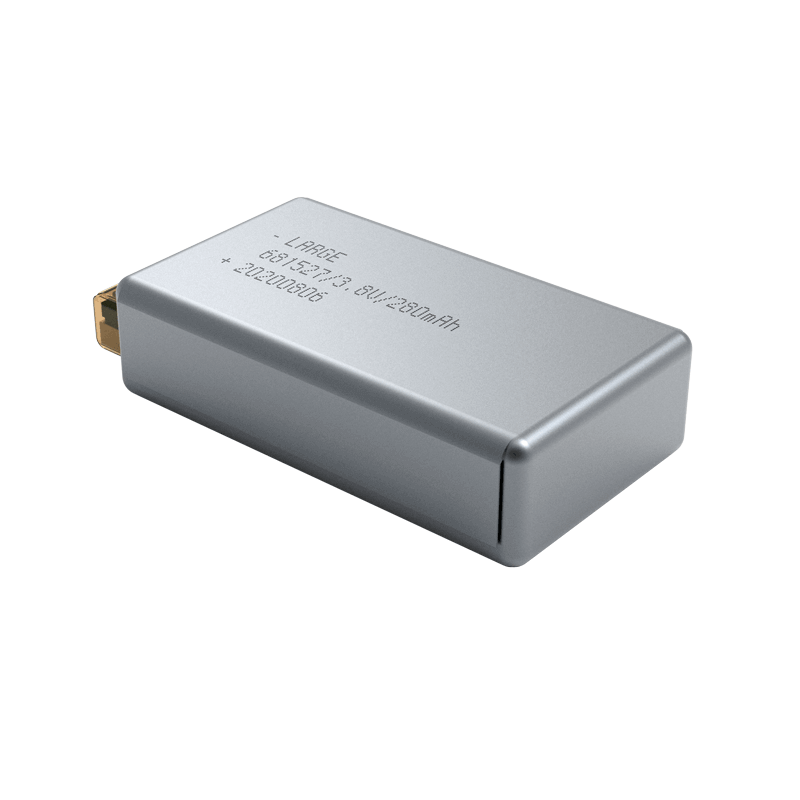

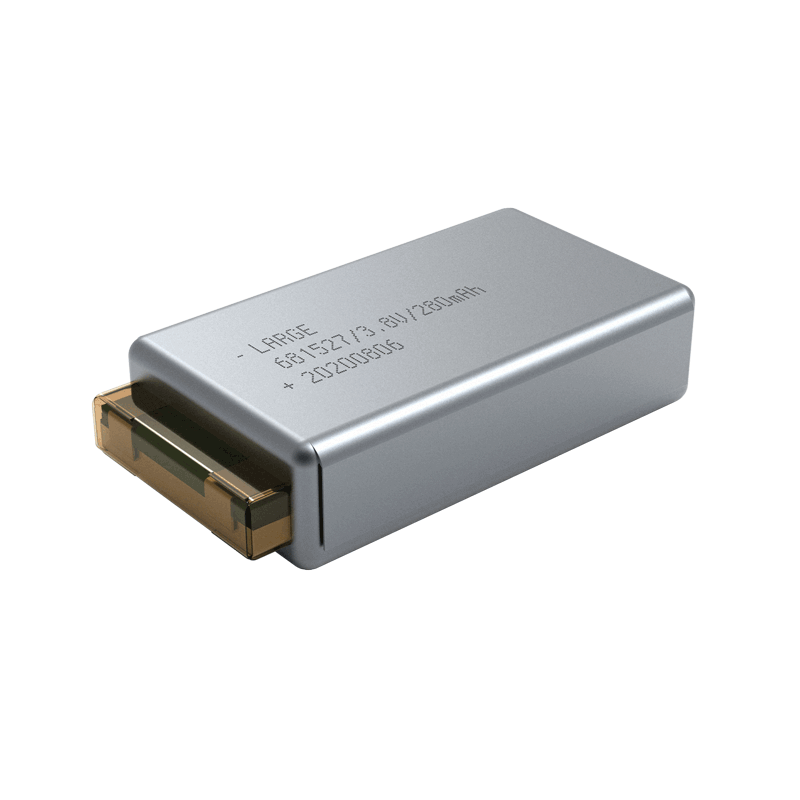

Battery specification: 681527-1S1P-280mAh-3.8V
Product dimension: 28*15*6.8mm（Max）
Charging voltage: 4.2V
Charging current: ≤130mA
Discharging current: ≤260mA
End-off voltage: 3.0V
Internal resistance: ≤350mΩ
Discharging temperature: -20～60℃
Storage temperature: -20～35℃
Battery case: simple package
Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, ESD protection, etc.
Application field: portable ultrasonic exploration equipment, portable mapping equipment.
1. High temperature adhesive with simple package is simple and reliable, and it is easy to install.
2.PCB pad output: PCB solder pad output mode is adopted to increase the conductive reliability.
3.Battery protection management: Adopt imported protection chip with high stability, high precision monitoring, precise control, which can maximize the elimination of security risks.
4. The battery pack has good security, nice discharge performance and long cycle life.
5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
