Custom Lithium ion Battery Pack

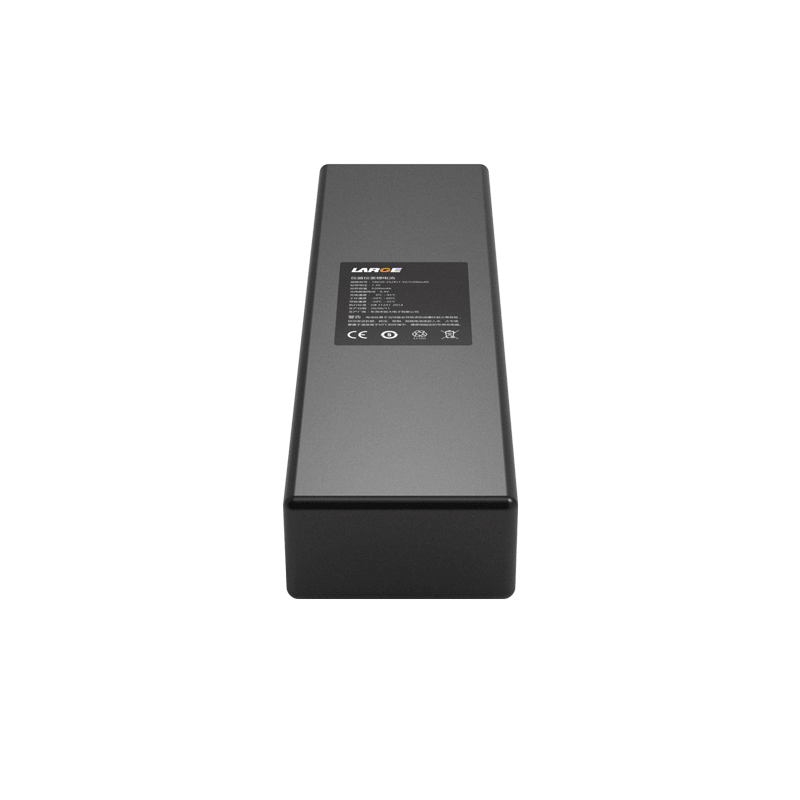

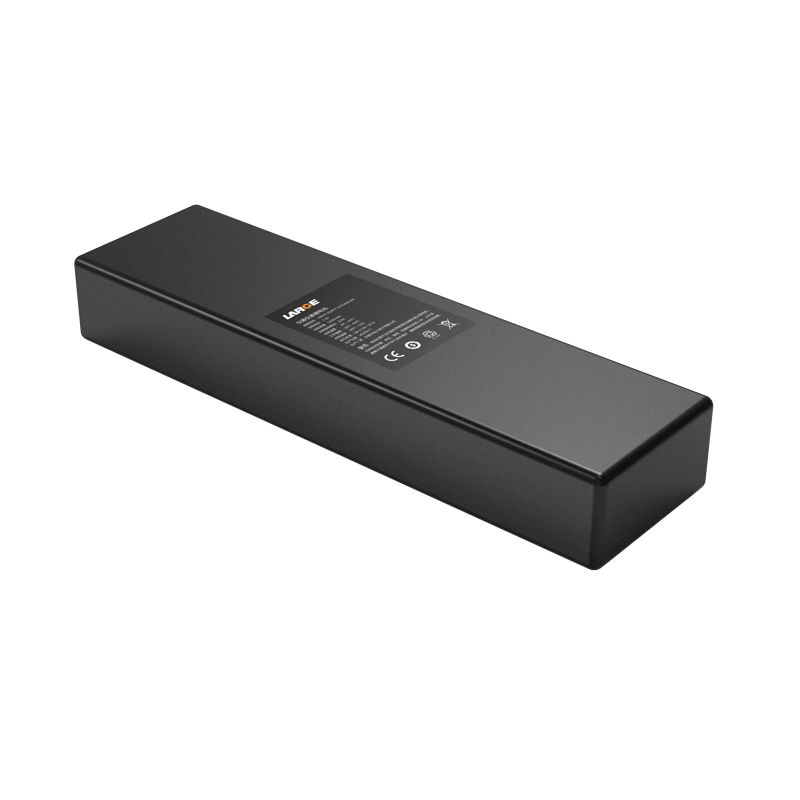

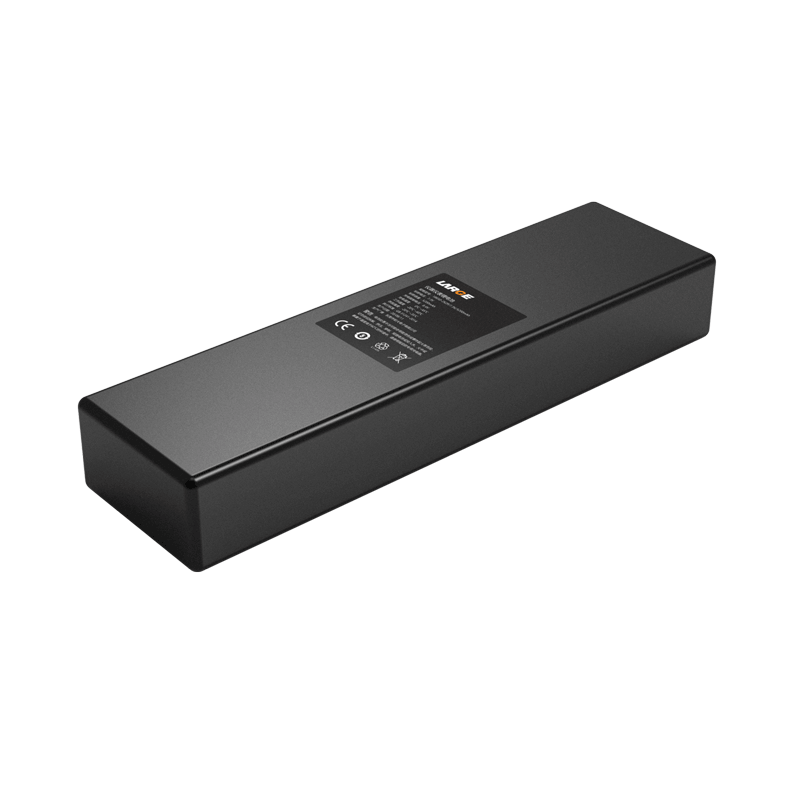

18650 7.3V 5200mAh Lithium Ion Battery for Instruments

Product Detail

Product number: 06DQ040-03
Cell model:18650/3.65V/2600mAh
Battery specification: 18650-2S2P/7.3V/5200mAh
Nominal voltage:7.3V
Nominal capacity:5200mAh
Charging voltage: 8.4V
Charging current: ≤2.5A
Discharging current: 1.8A
Instant discharging current: 5A
End-off voltage: 6.0V
Internal resistance: ≤200mΩ
Battery weight: 0.2Kg
Product dimension: 135*38*21.5mm(Max)
Charging temperature:0~45℃
Discharging temperature: -20~60 ℃
Storage temperature: -20℃~35℃
Battery case: pouch cell
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.
