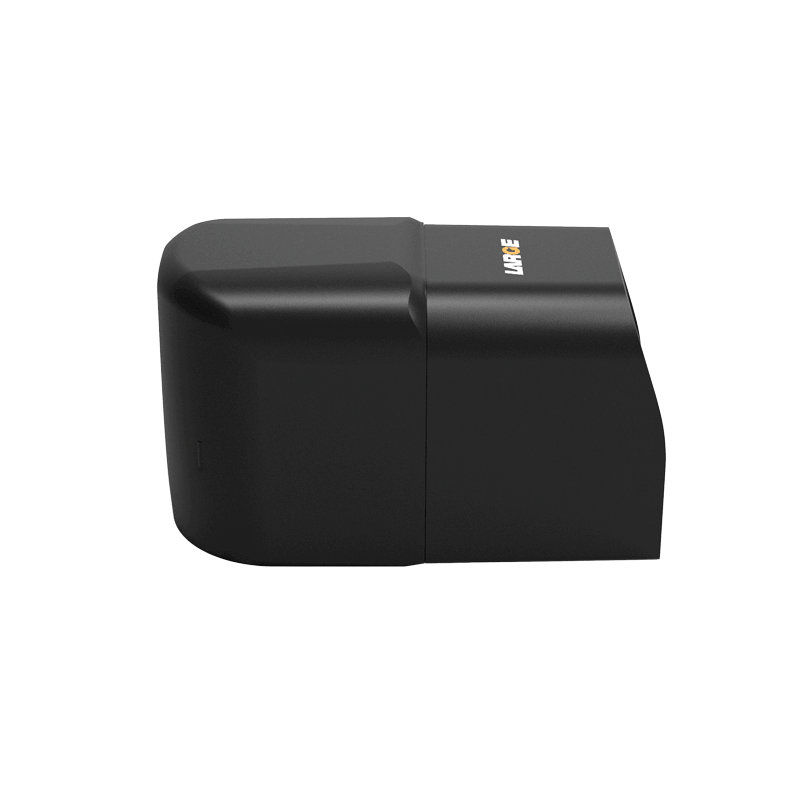

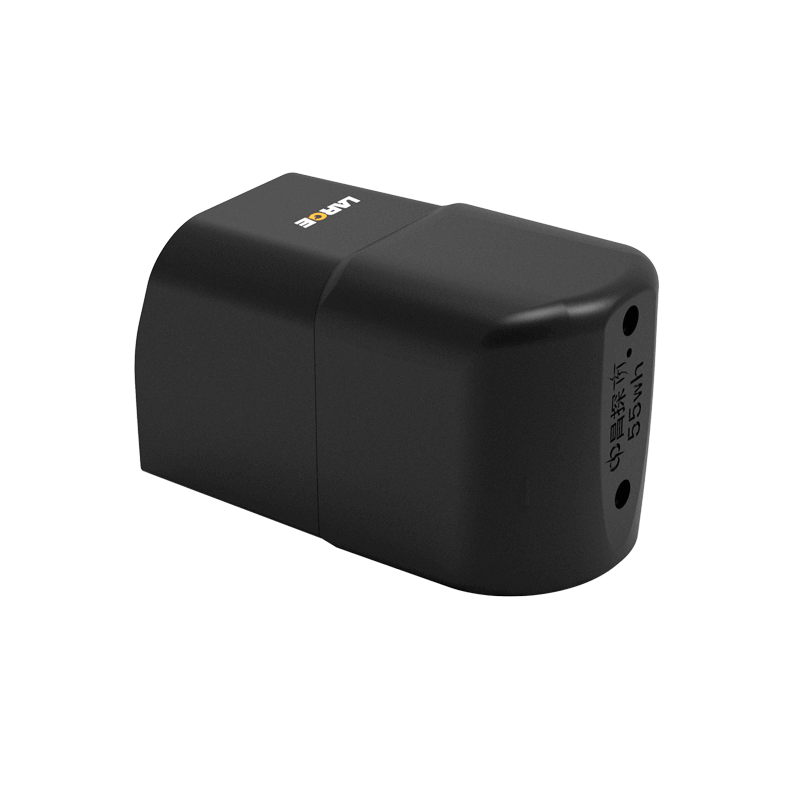

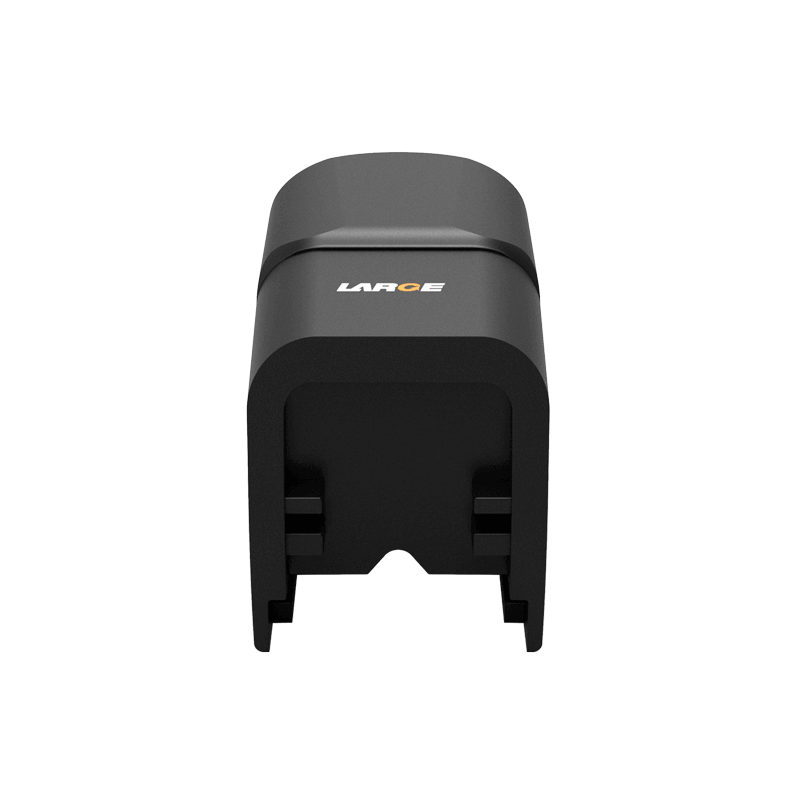

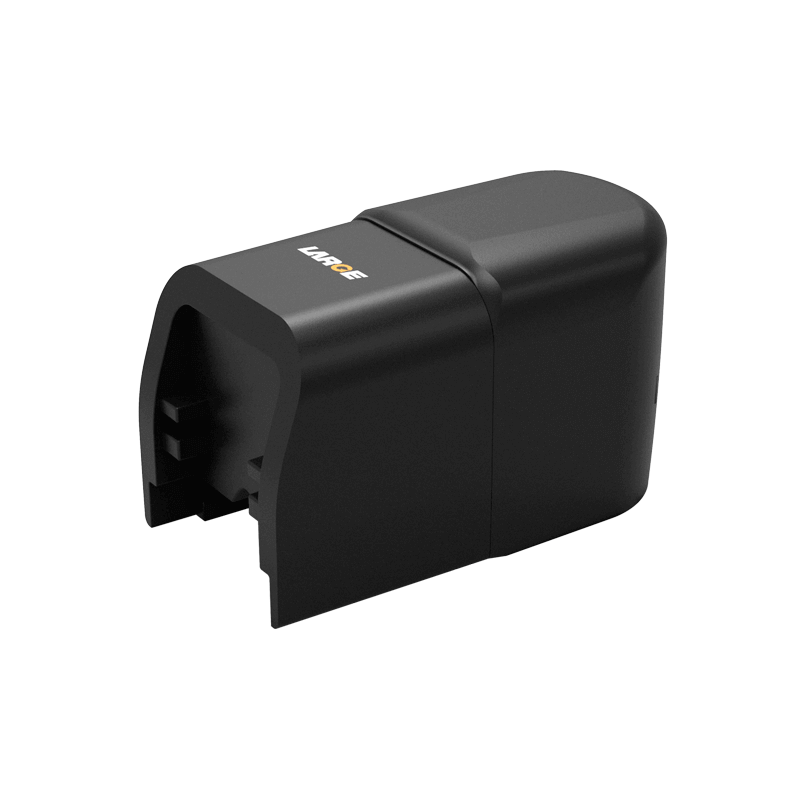

18650 14.4V 3350mAh Samsung Battery Ternary Battery for Flaw Detector

18650 14.4V 3350mAh Samsung Battery Ternary Battery for Flaw Detector
18650 14.4V 3350mAh Samsung Battery Ternary Battery for Flaw Detector
18650 14.4V 3350mAh Samsung Battery Ternary Battery for Flaw Detector
18650 14.4V 3350mAh Samsung Battery Ternary Battery for Flaw Detector

Product Detail

Product number: 05DQ0040-03

Cell model:18650-3350mAh-3.6V

Battery specification: 18650-4S1P-3350mAh-14.4V

Product dimension: 51.4×86.4×45mm(Max)

Nominal voltage:14.4V

Nominal capacity:3350mAh

Charging voltage: 16.8V

Charging current: ≤1.6A

Discharging current: 0.67A

Instant discharging current: 3A

End-off voltage: 10.8V

Internal resistance: ≤350mΩ

Battery weight: 250g

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, overcurrent protection and ESD protection, etc.

Application field: portable ultrasonic exploration equipment, portable ultrasonic detection equipment



Product features

1. ABS+PC case increases the reliability and immobility of the battery.

2. Connector outlet: Adopts ejector pin output mode to increase conductive reliability.

3. Battery protection management: Adopt special lithium battery protection chip with good stability, high precision monitoring and accurate  control so as to try our best to eliminate the security risks.

4. The battery has good security, nice low temperature performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
