Custom Lithium ion Battery Pack

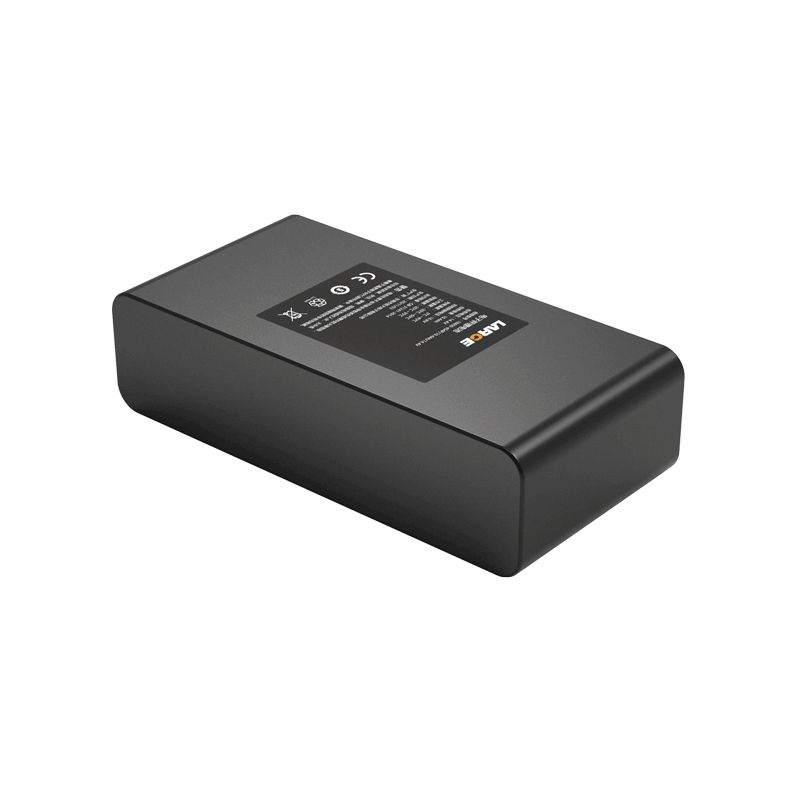

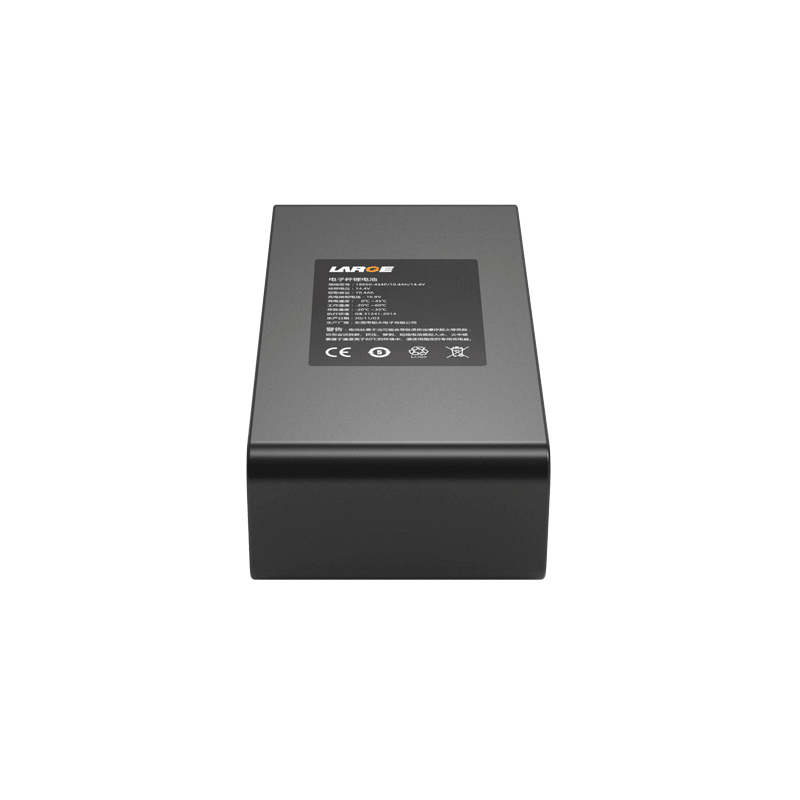

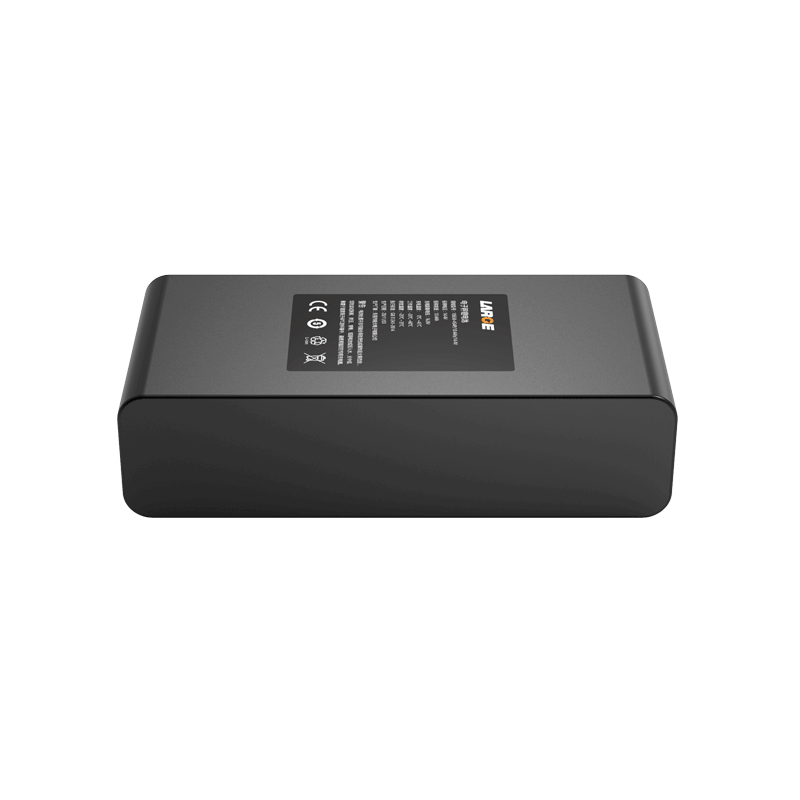

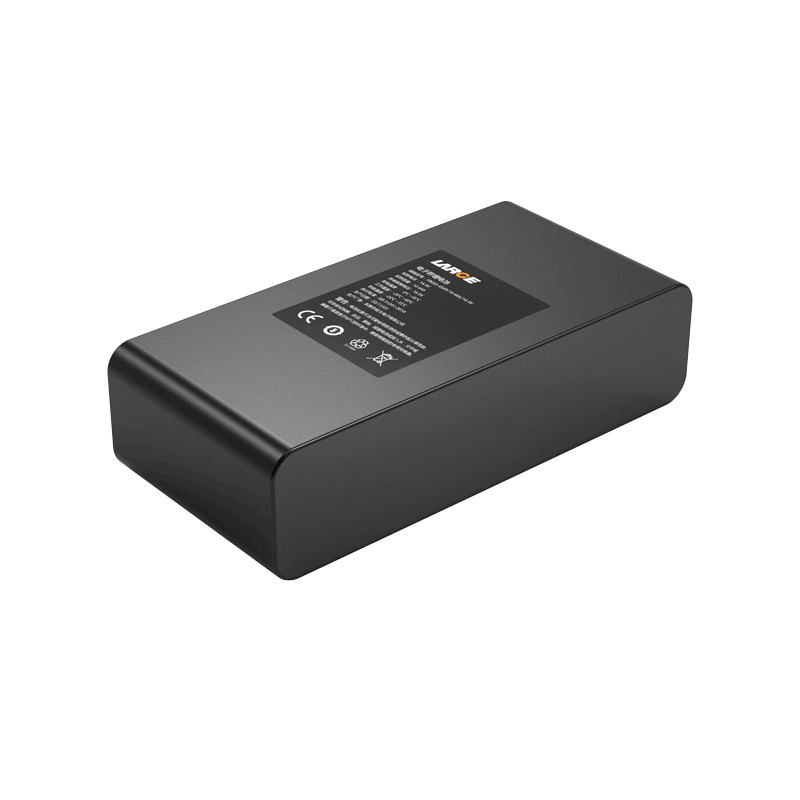

18650 14.4V 10.4Ah Ternary Battery for Electronic Scale

Product Detail

Product number: 03DQ0098-01

Cell model:18650-2600mAh-3.6V

Battery specification: 18650-4S4P/10.4Ah/14.4V

Product dimension: 150×73×39mm(Max)

Nominal voltage:14.4V

Nominal capacity:10.4Ah

Charging voltage: 16.8V

Charging current: ≤3A

Discharging current: ≤5A

End-off voltage: 12V

Internal resistance: ≤200mΩ

Battery weight: 900g

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: blue PVC heat shrinkable film

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, over current protection and ESD protection, etc.

Application field: electronic scale, portable device



Product features

1. Blur PVC heat shrinkable film is reliable and easy to install.

2. Connector plug outlet: Adopt MOLEX plug output mode to increase conductive reliability.

3. Battery protection management: Adopt special lithium battery protection chip with high stability, high precision monitoring, precise control so as to eliminate safety hazard to the greatest extent.

4.Data communication management: Adopt SMBus software management chip, SMBus communication data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5. The battery pack has good security , nice discharge performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
