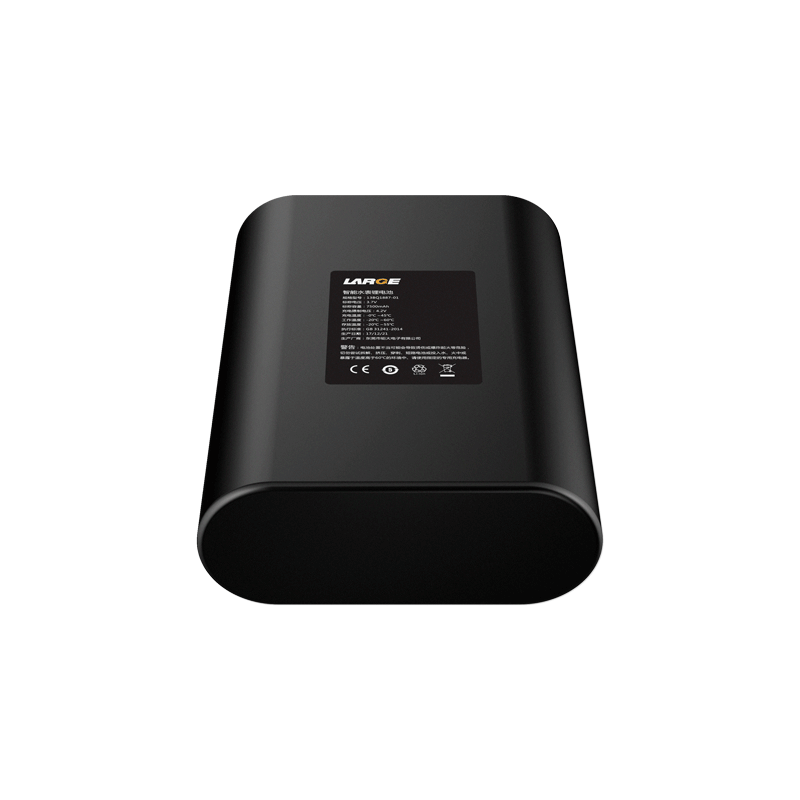

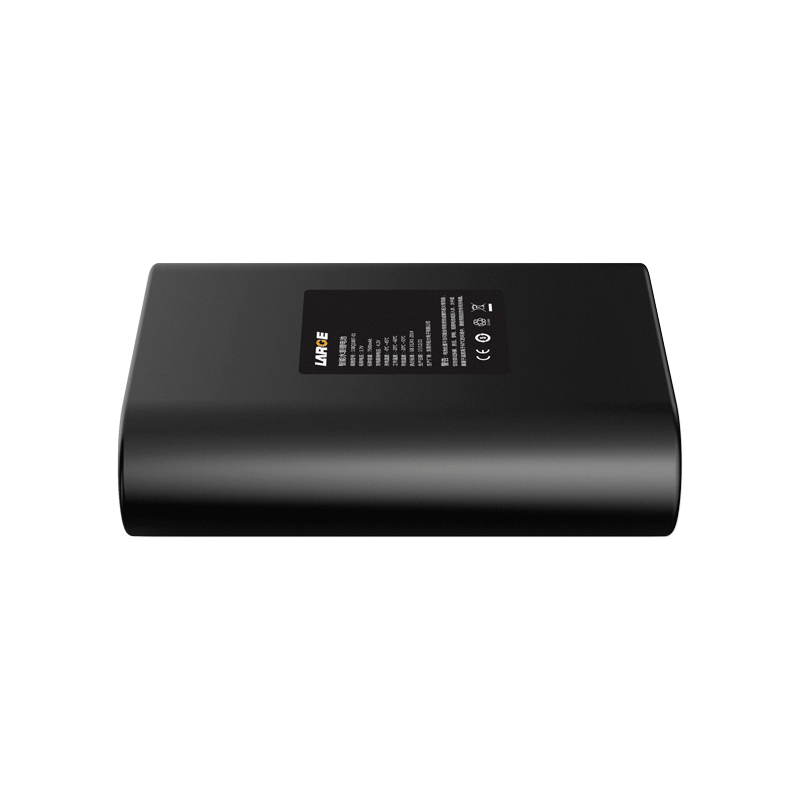

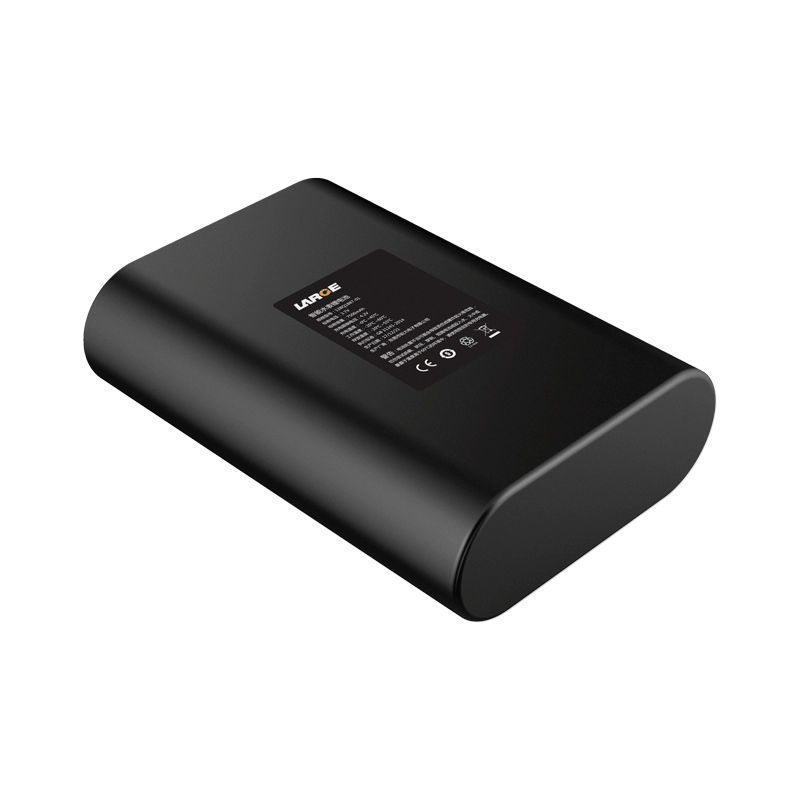

Custom Lithium ion Battery Pack

18650 3.7v 7500mAh Sanyo Battery LCO Battery

Product Detail

Product number : 13BQ1887-01

Combination mode: ICR18650-1S3P

Nominal voltage: 3.7V

Output voltage range: 2.5~ 4.2V

Nominal capacity: 7500mAh

Standard continuous discharge current: 0.2C

Maximum continuous discharge current: 1C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 19.2*56.5*69.5mm

Finished product internal resistance: 200 mΩ or less

Lead model: National standard line UL3302/26#, length 50mm, white line 10K NTC

Protective board parameters :(each parameter can be set according to the customer's need)

Overcharge protection voltage / 4.28±0.025V per series

Overdischarge protection voltage 2.4±0.1V

Overcurrent value: 2~4A

*
*
*
