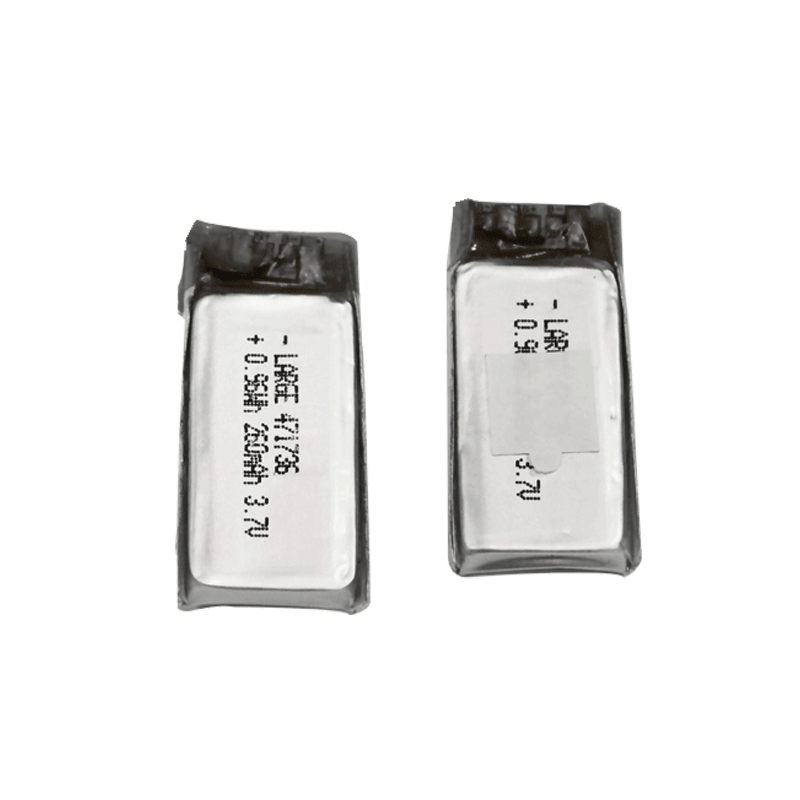

3.7V 260mAh 471736 Pouch Cell Lithium Polymer Battery Lithium Cobalt Acid Battery

3.7V 260mAh 471736 Pouch Cell Lithium Polymer Battery Lithium Cobalt Acid Battery
3.7V 260mAh 471736 Pouch Cell Lithium Polymer Battery Lithium Cobalt Acid Battery

Product Detail

Product number: 11AQ021-16

Battery model: 471736-1S1P/260mAh/3.7V

Nominal voltage: 3.7V

Nominal capacity: 260mAh (discharge from 0.2C to 2.5V)

Factory voltage: 3.7V~3.9V

Product dimension: MAX38×18×4.7mm

The internal resistance of products: 365 mΩ or less

Battery weight: 6 g

Output mode: UL1571#30 red and black line with a length of 50±3mm

Implementation standard: GB/T 18287-2000

Warranty period: 12 months

Operating temperature: 0~45℃ (charging), -20~60℃ (discharging)

Battery charging: Limiting voltage of charge: 4.2V Charging current: 50mA(standard), 250mA(maximum)

Battery discharge: Discharge cut-off voltage: 2.5V Discharge current: 50mA(standard), 250mA(maximum)

*
*
*
*
*
