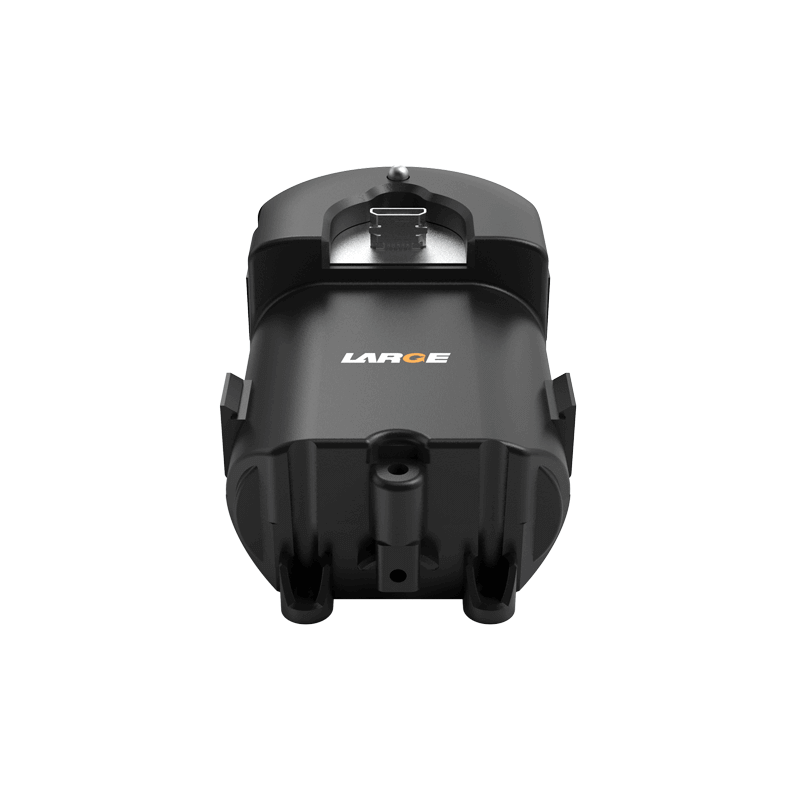

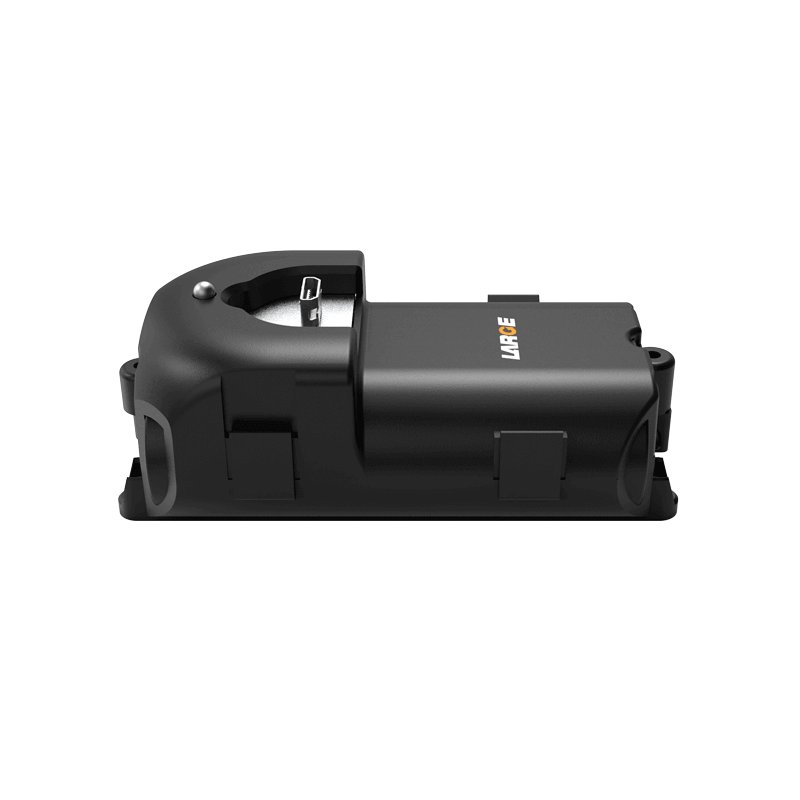

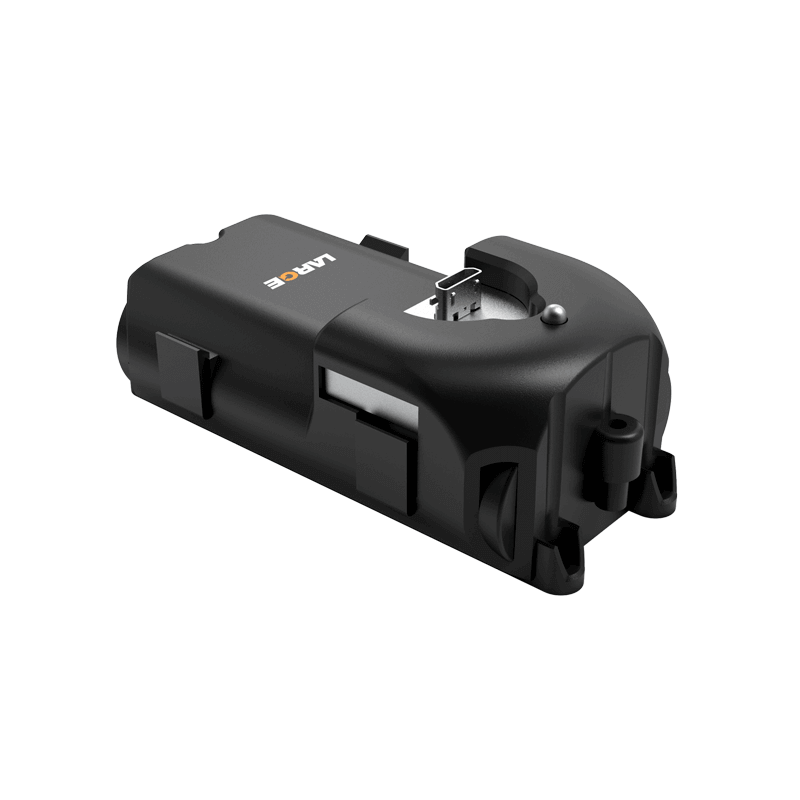

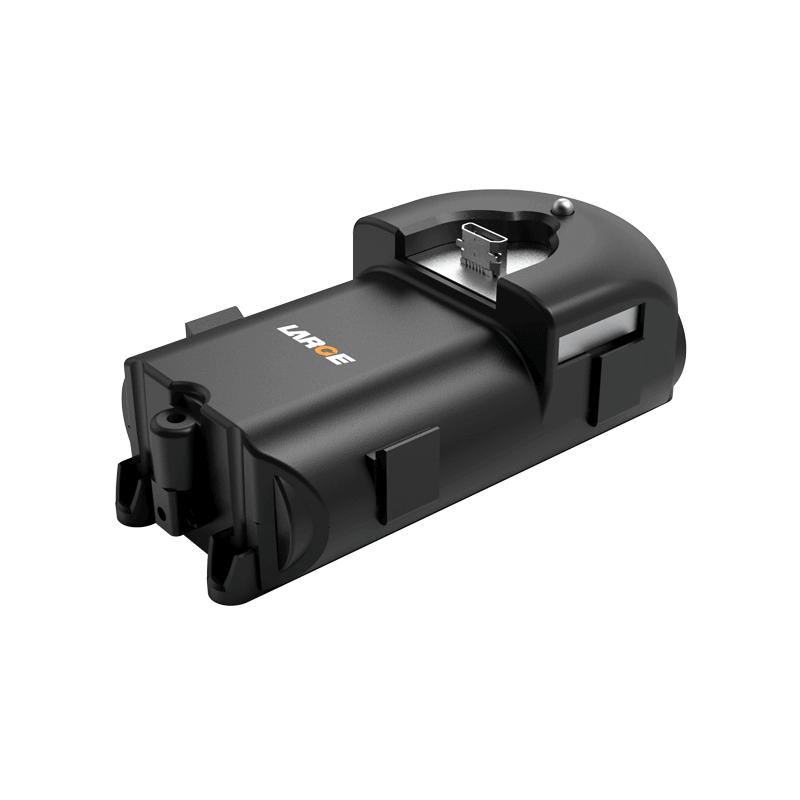

18650 3.6V 6700mAh Lithium-ion Battery for Monitoring Device
Product Number:
01DQ0040-20T
Nominal voltage:
3.6V
Nominal capacity:
6700mAh
Battery Configuration:
18650-1S2P
Dimension:
28.55 × 40 × 73.0 mm
Application:
security monitoring devices
Compact ABS+PC Case, Stable Output, Long Runtime
Product Overview
This battery is specially designed for security monitoring devices, suitable for video surveillance and continuous standby scenarios. Featuring stable output and long runtime, it ensures reliable operation under high load and extended use.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 01DQ0040-20T |
| Cell Model | 18650/3350mAh/3.6V |
| Battery Configuration | 18650-1S2P |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 6700mAh |
| Rated Energy | 24.12Wh |
| Discharge Cut-off Voltage | 3.0V |
| Standard Charging Current | ≤2.6A |
| Standard Discharge Current | 2.6A |
| Max Continuous Discharge Current | 2.6A |
| Internal Resistance | ≤250mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | -20～25℃ |
| Dimensions | 28.55 × 40 × 73.0 mm |
| Weight | 130 g |
| Battery Case | ABS+PC |
| Protection System | Fuel gauge calculation, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, USB charging |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
