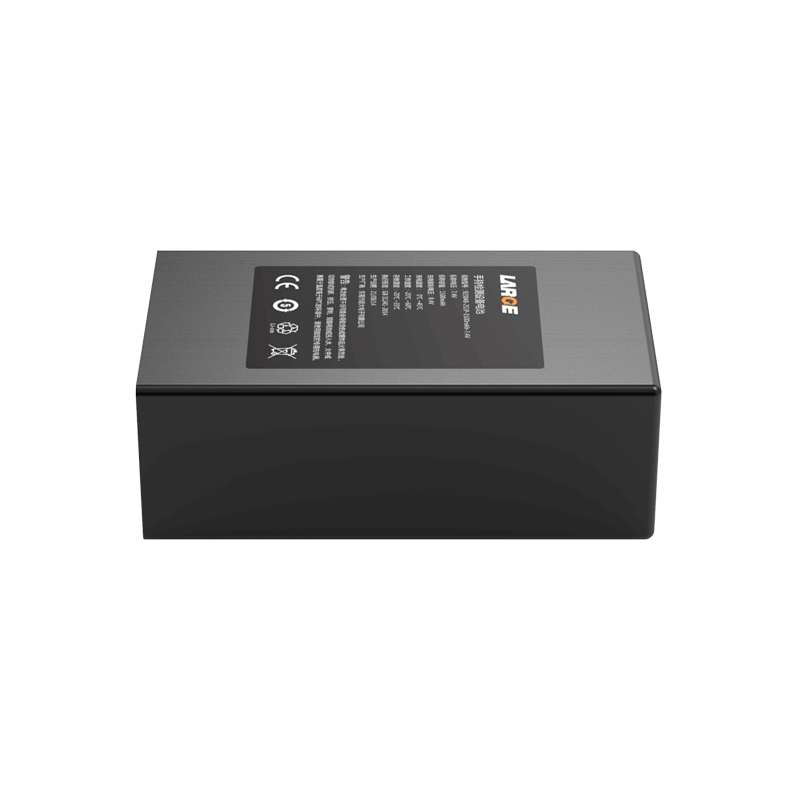

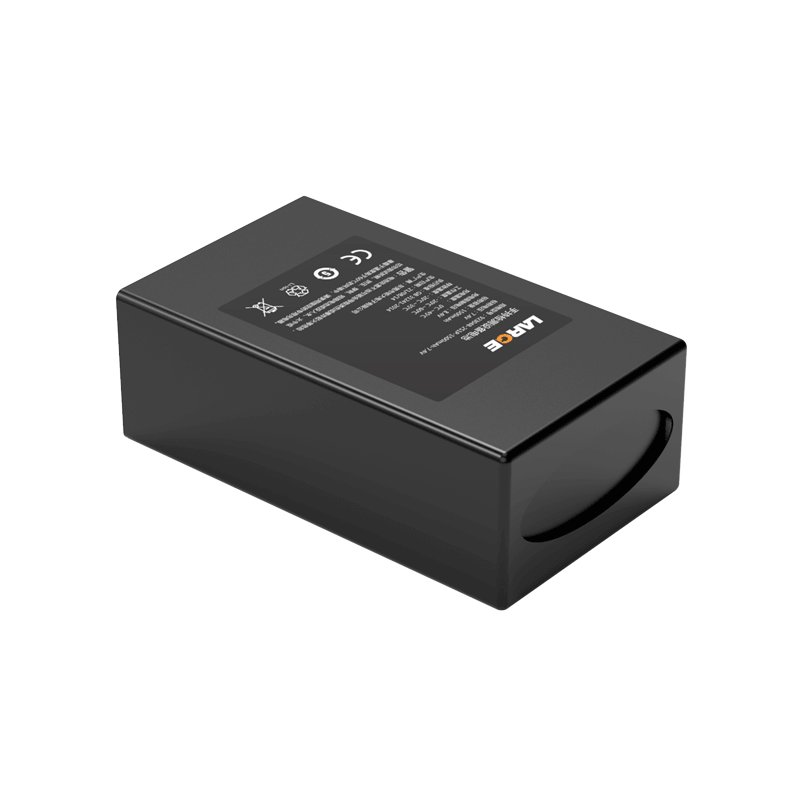

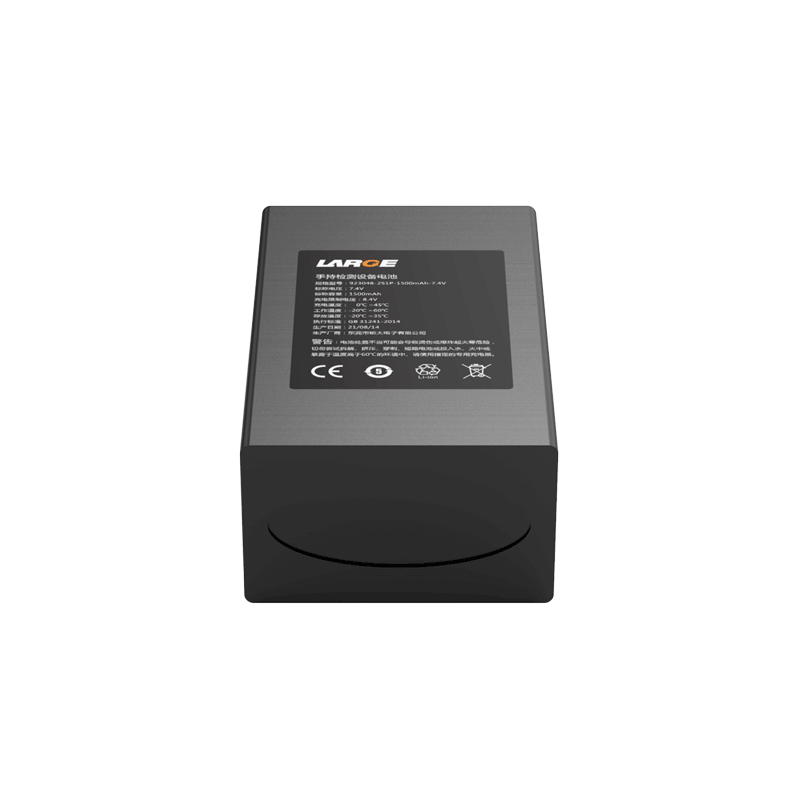

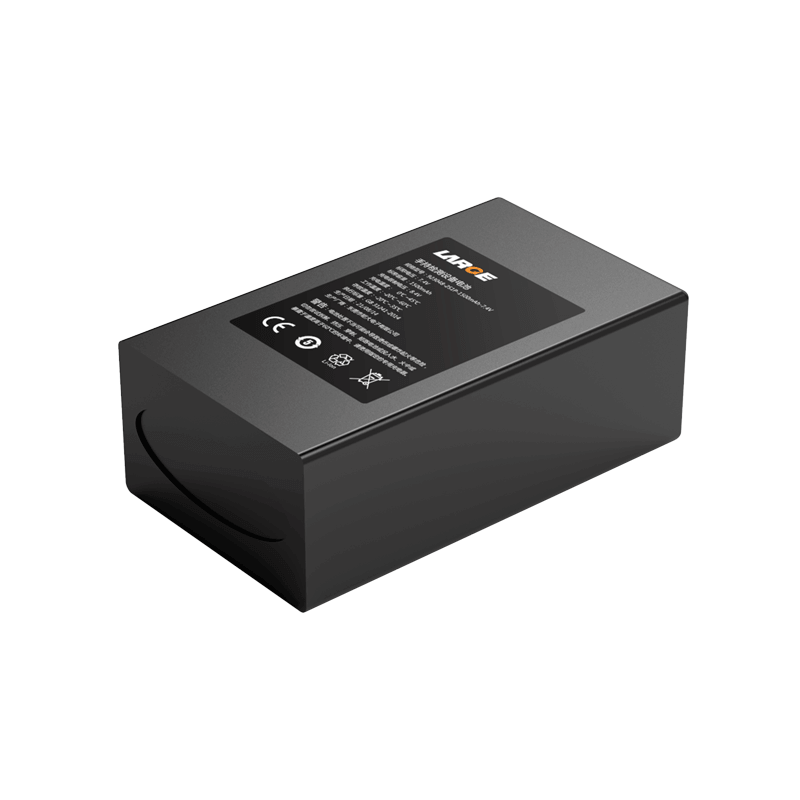

1500mAh 3.7V Lithium Polymer Battery for Handheld Inspection Equipment

Product Detail

Product number: 08DQ0018-01

Cell model: 923048-1500MAH-3.7V

Specification: 923048-2S1P-1500MAH-7.4V

Product size: 52*30.5*18.5mm (Max)

Nominal voltage: 7.4V

Nominal capacity: 1500mAh

Charging voltage: 8.4V

Charging current: ≤1.5A

Discharge current: ≤1.5A

Discharge cut-off voltage: 6.0V

Internal resistance: ≤250mΩ

Battery weight: 55G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery packaging: simple packaging

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Handheld devices, testing equipment, portable devices


Product Features

1.The package is simple, reliable and easy to be installed.

2.Connector output terminal: The JST plug is used to increase the reliability of electrical conduction.

2.Battery protection management: Adopt imported seiko protection chip with good stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.

3.The battery pack has good safety, nice discharge performance and long cycle life.

4.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
