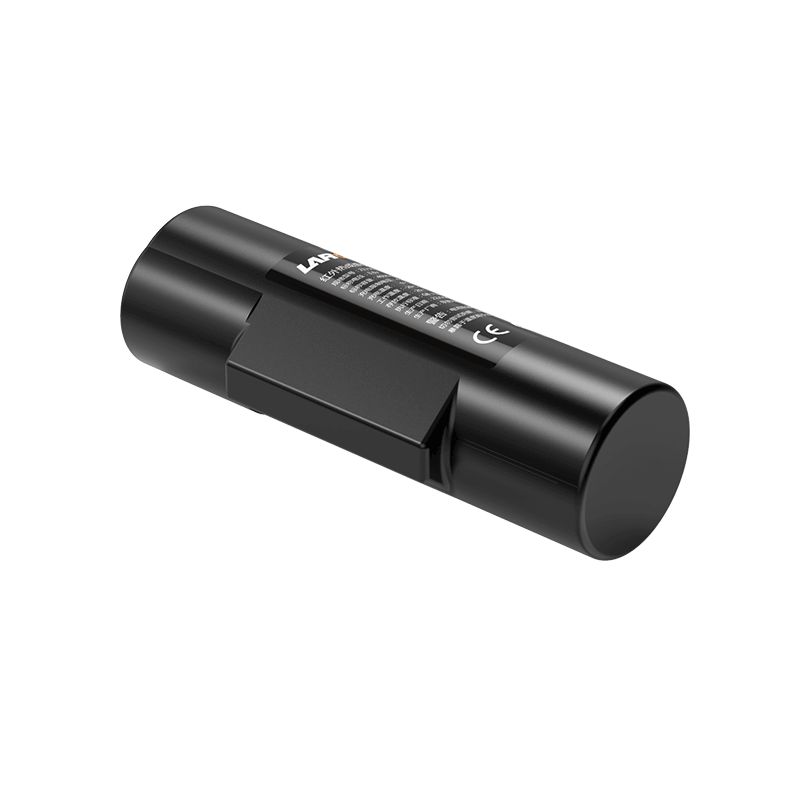

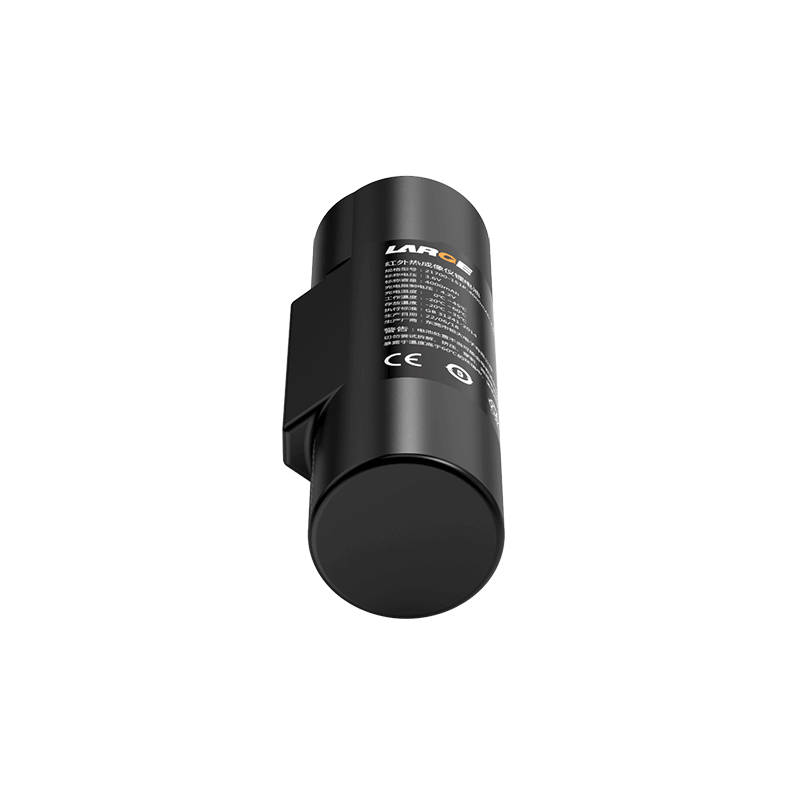

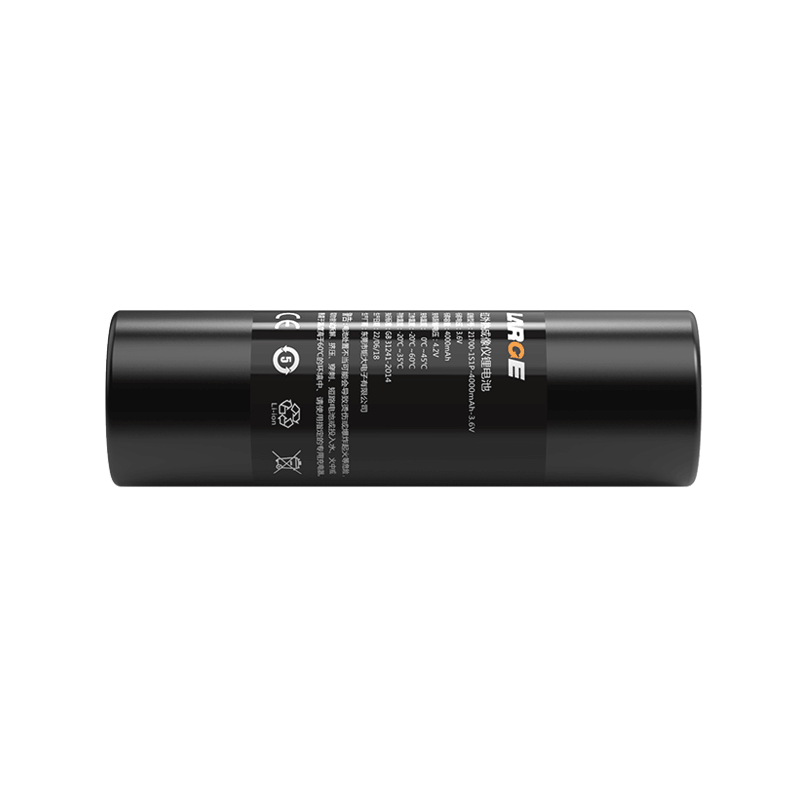

3.6V 4000mAh Lithium-ion Battery for Infrared Imaging Devices

Product number: 36AQ517-10

Cell model: 21700-4000mAh-3.6V

Battery specification: 21700-1S1P-4000mAh-3.6V

Product dimension: 71.5*25*22mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 4000mAh

Finished internal resistance: ≤150mΩ

Charging voltage: 4.2V

Charging current: ≤5A

Discharge current: ≤5A

Discharge cut-off voltage: 2.5V

Battery weight: 75g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery case: blue PVC heat shrinkable film

Output mode: MOLEX plug output

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection and so on

Application: Infrared equipment, thermal imager, portable equipment
